Control System

DTC INSPECTION (PJB)[CONTROL SYSTEM]

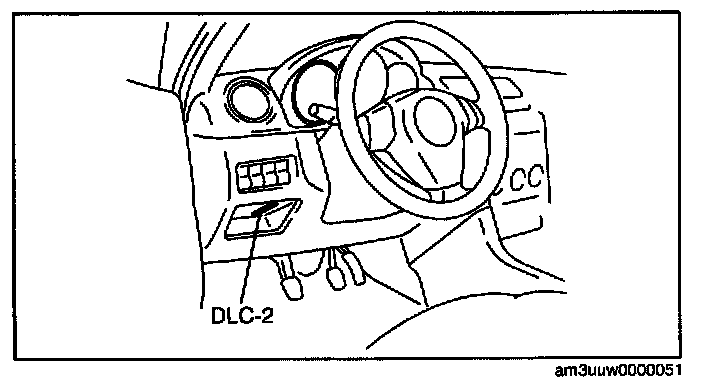

1. Connect the M-MDS to the DLC-2.
2. After the vehicle is identified, select the following items from the initial screen of the M-MDS.
- When using the IDS (laptop PC)
- Select the "Toolbox" tab.
- Select "Self Test". Select "Modules".
- Select "GEM".
- When using the PDS (Pocket PC)

- Select "Module Tests".
- Select "GEM".
- Select "Self Test".

3. Verify the DTC according to the directions on the screen.
- If any DTCs are displayed, perform troubleshooting according to the corresponding DTC inspection.

4. After completion of repairs, clear all DTCs stored in the PJB.
