Transmission Position Sensor/Switch: Locations

AUTOMATIC TRANSAXLE LOCATION INDEX [FN4A-EL]

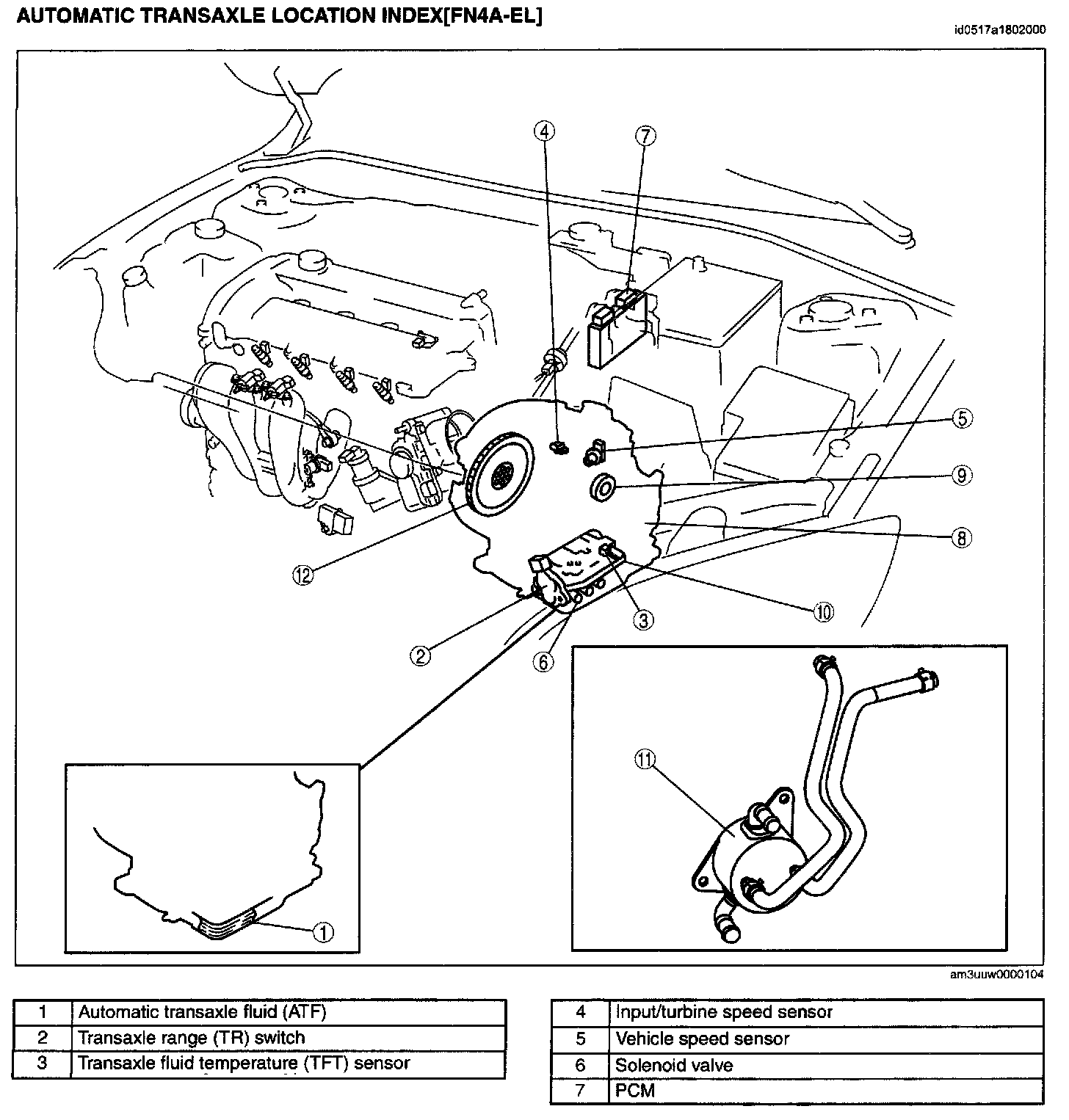

Automatic Transaxle Location Index [FN4A-EL] (part 1):

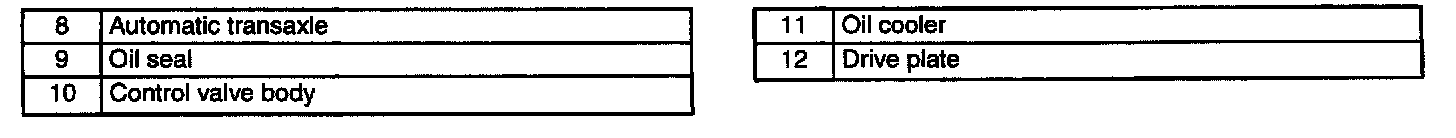

Automatic Transaxle Location Index [FN4A-EL] (part 2):
