Symptom Related Diagnostic Procedures

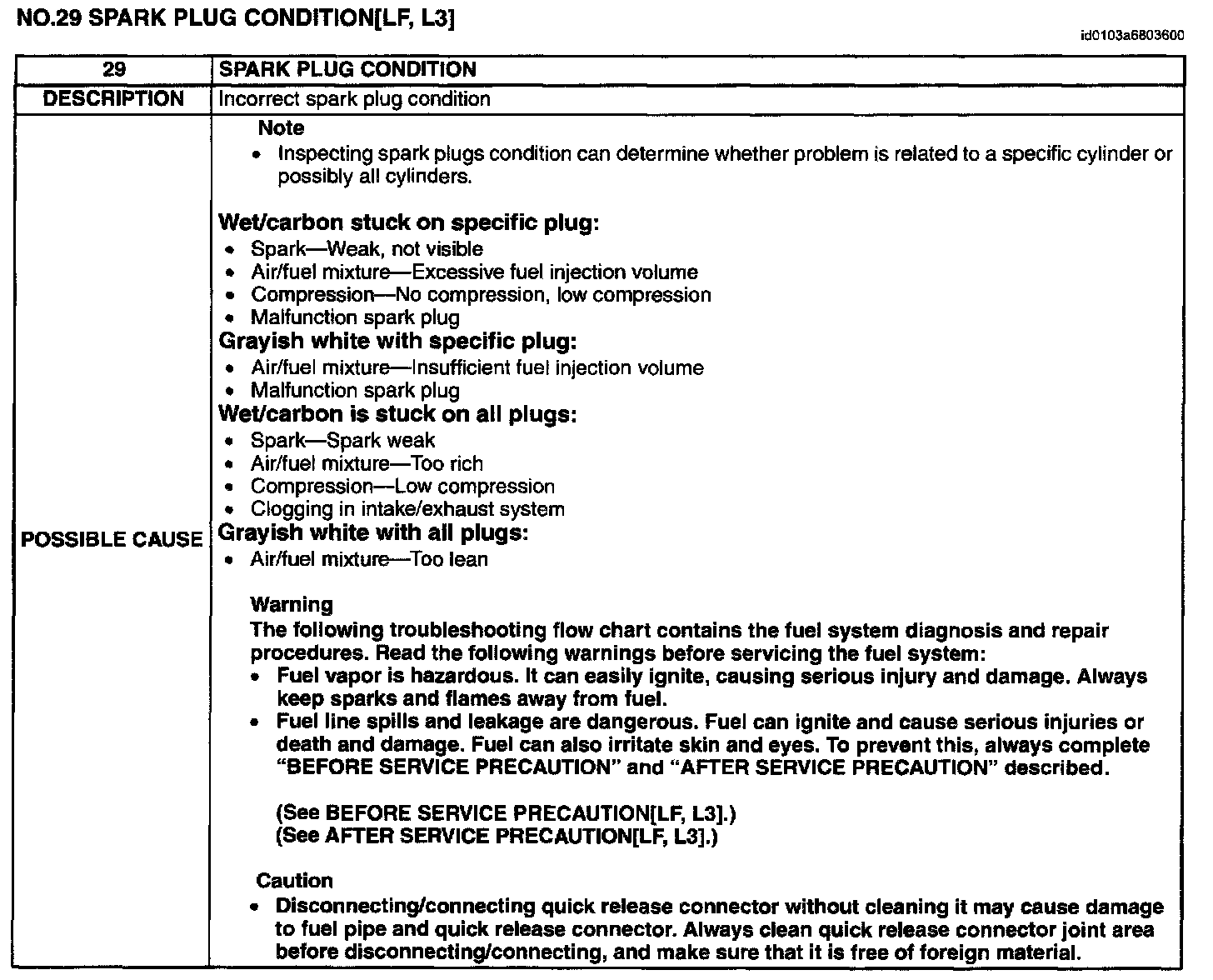

Possible Cause:

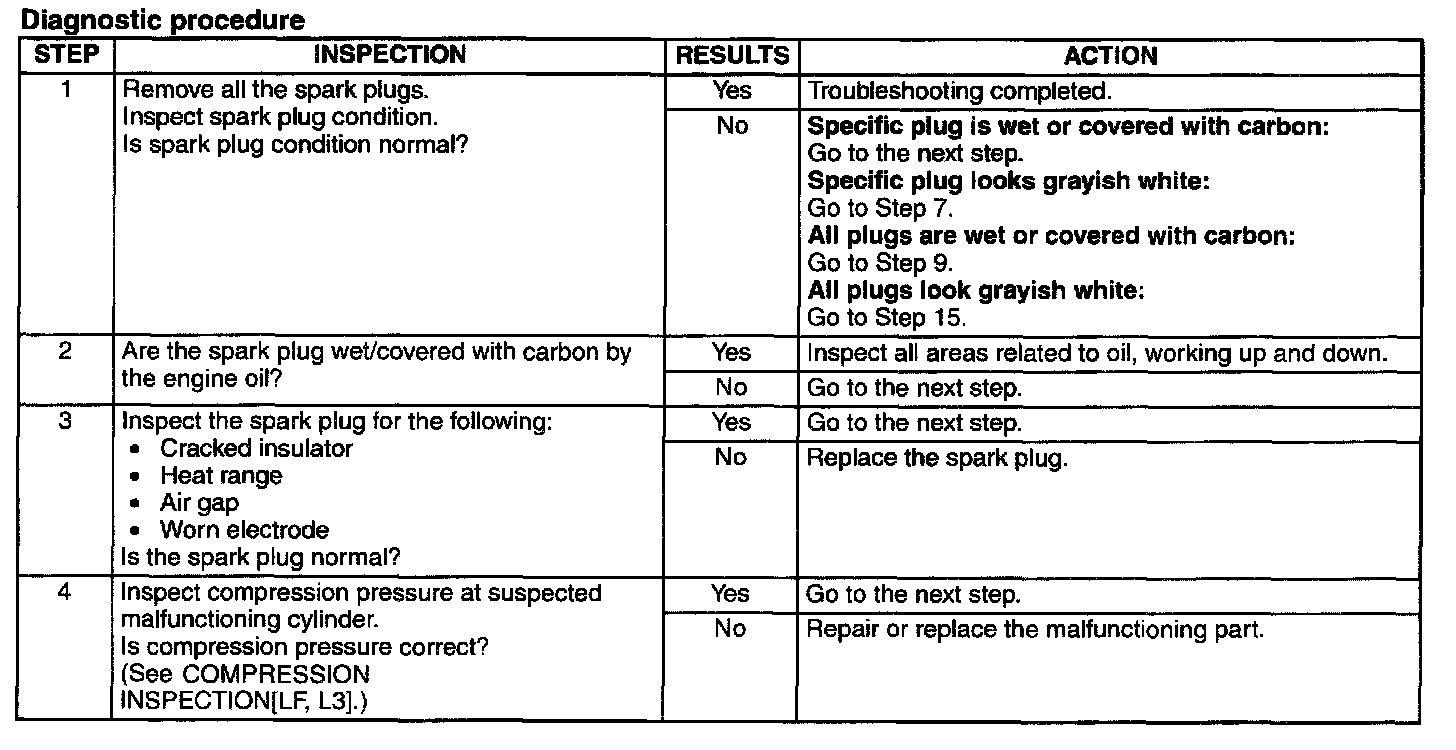

Step 1-Step 4:

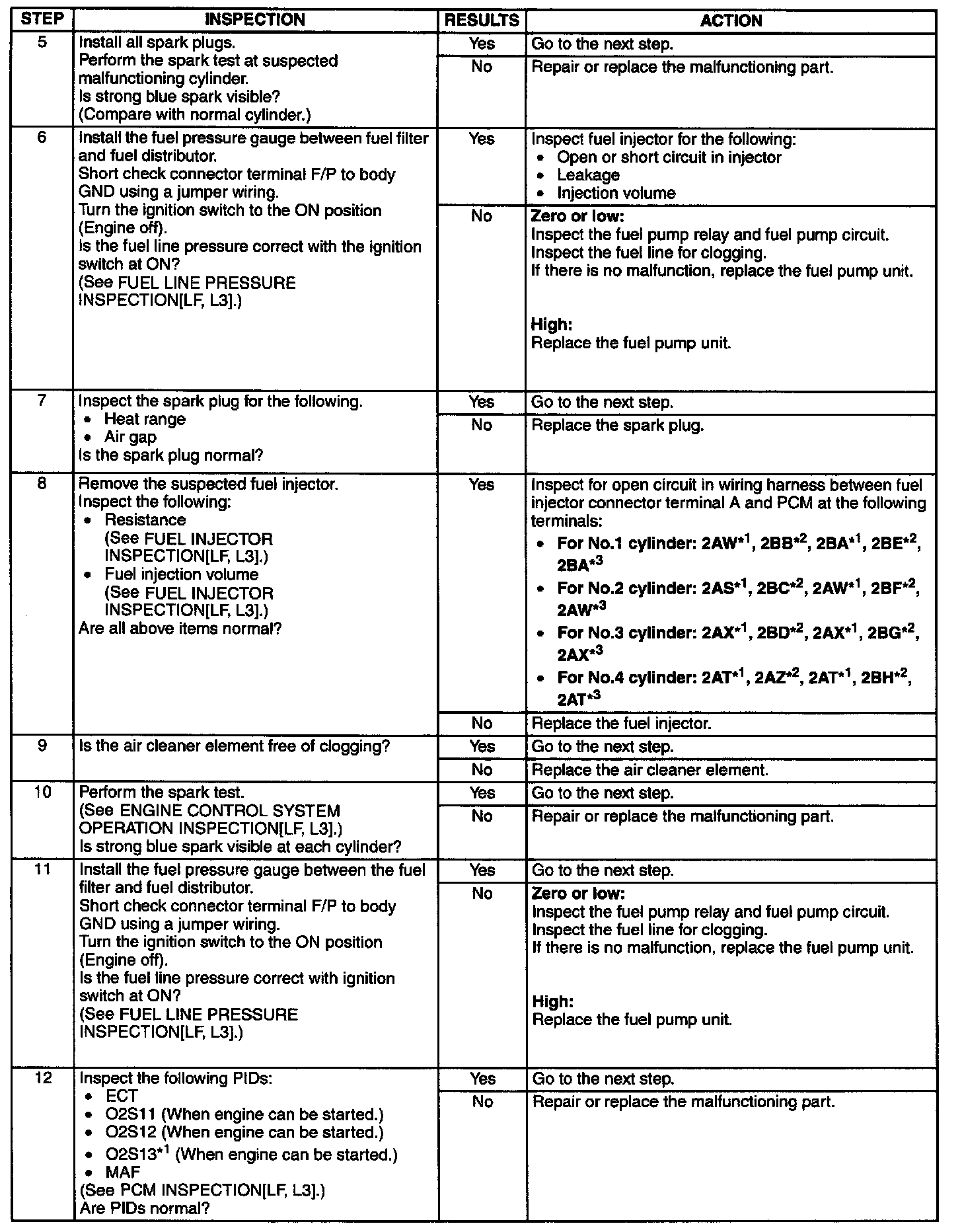

Step 5-Step 12:

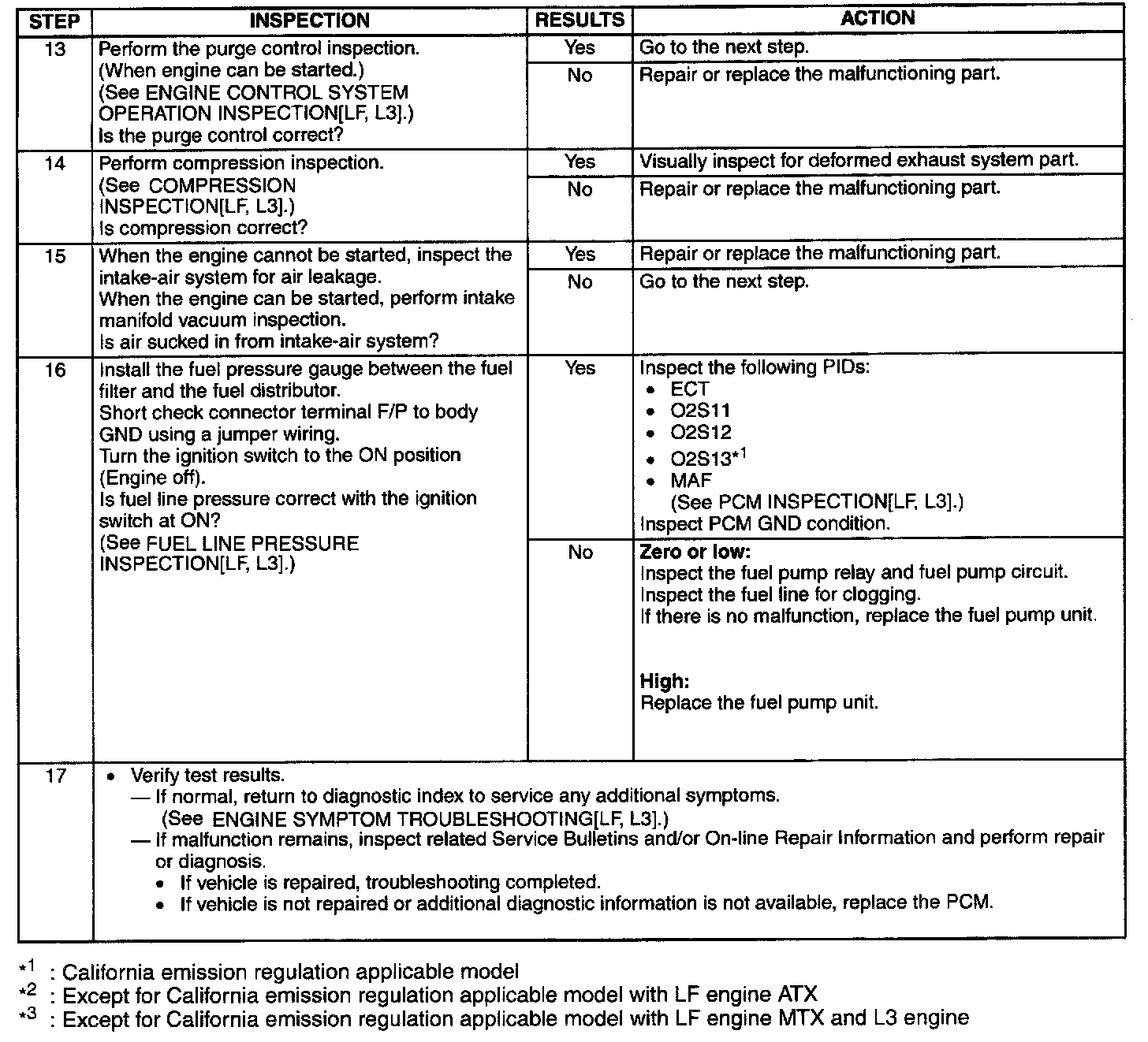

Step 13-Step 17:
