System Specifications

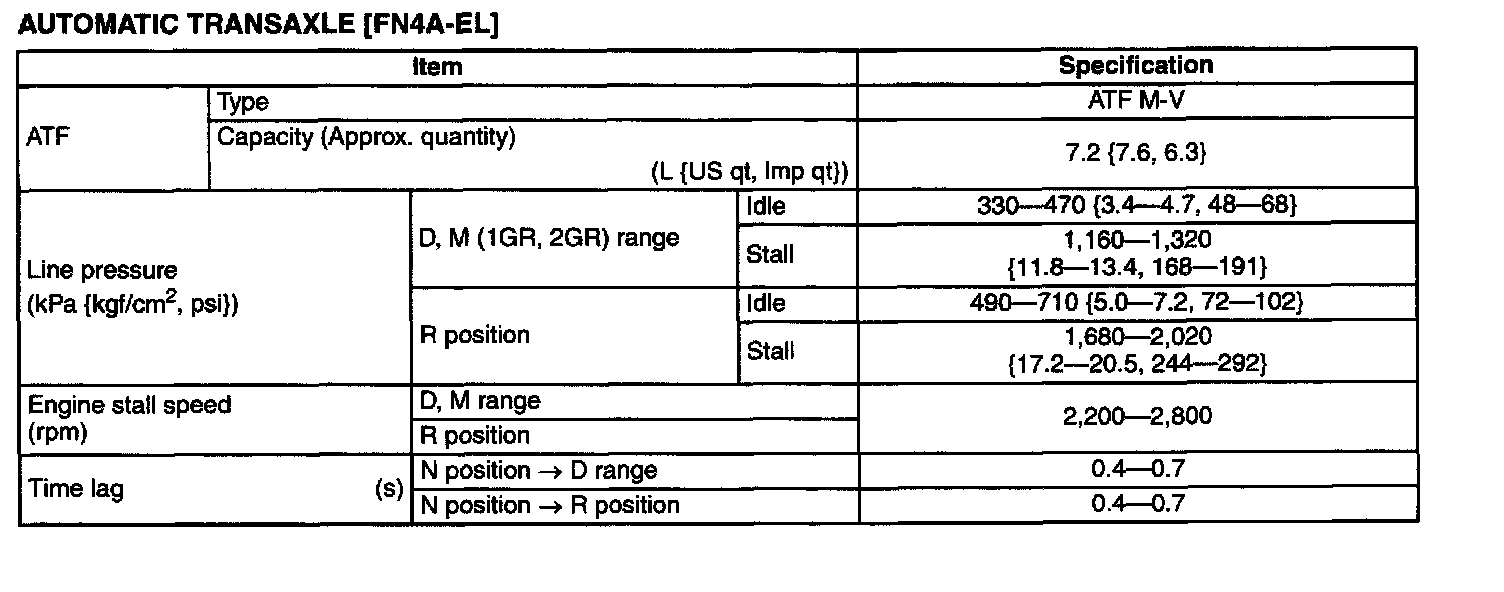

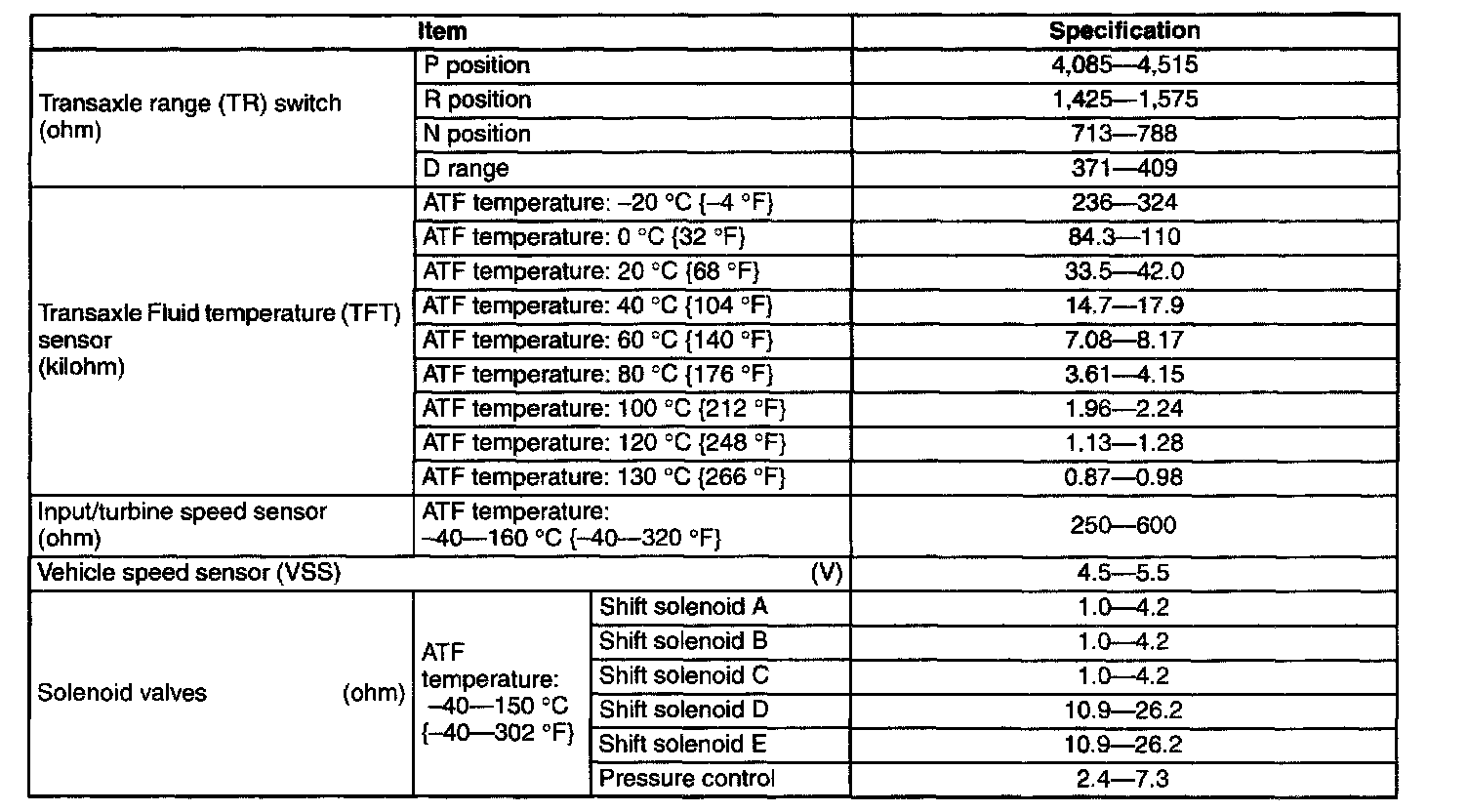

AUTOMATIC TRANSAXLE [FN4A-EL]Automatic Transaxle [FN4A-EL]:

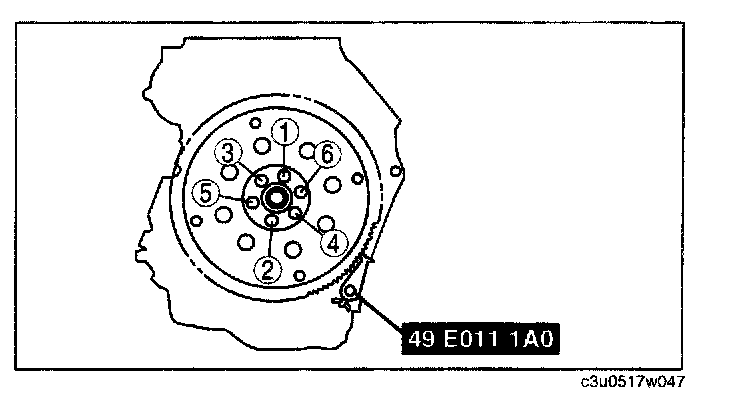

DRIVE PLATE
Tightening torque 108 - 116 N-m (11.0 - 11.8 kgf-m, 79.7 - 85.5 ft-lbf)
Oil Pan
Tightening torque 6-8 N-m (62-81 kgf-cm, 53-70 in-lbf)
DRIVE PLATE
Tightening torque 108 - 116 N-m (11.0 - 11.8 kgf-m, 79.7 - 85.5 ft-lbf)
Oil Pan
Tightening torque 6-8 N-m (62-81 kgf-cm, 53-70 in-lbf)
