Pinout Values and Diagnostic Parameters

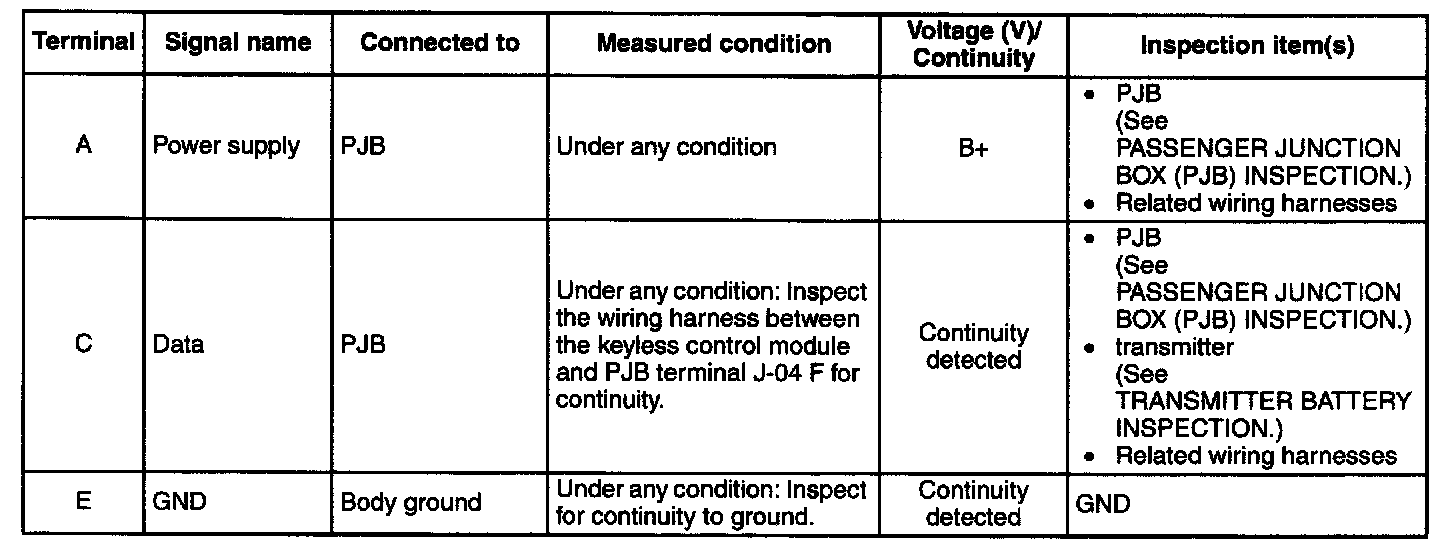

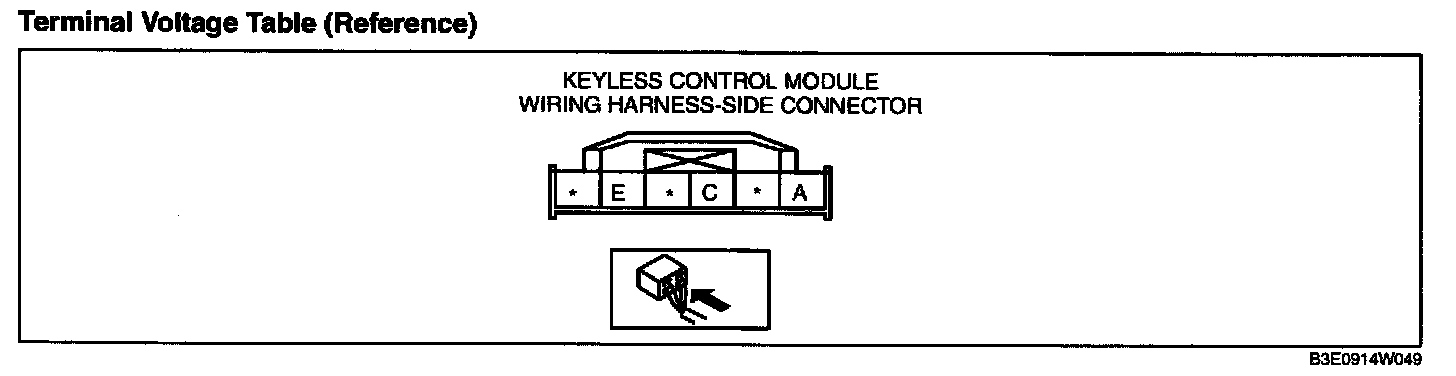

Terminal Voltage Table (Reference) Part 1:
Terminal Voltage Table (Reference) Part 2:
