Brakes and Traction Control: Locations

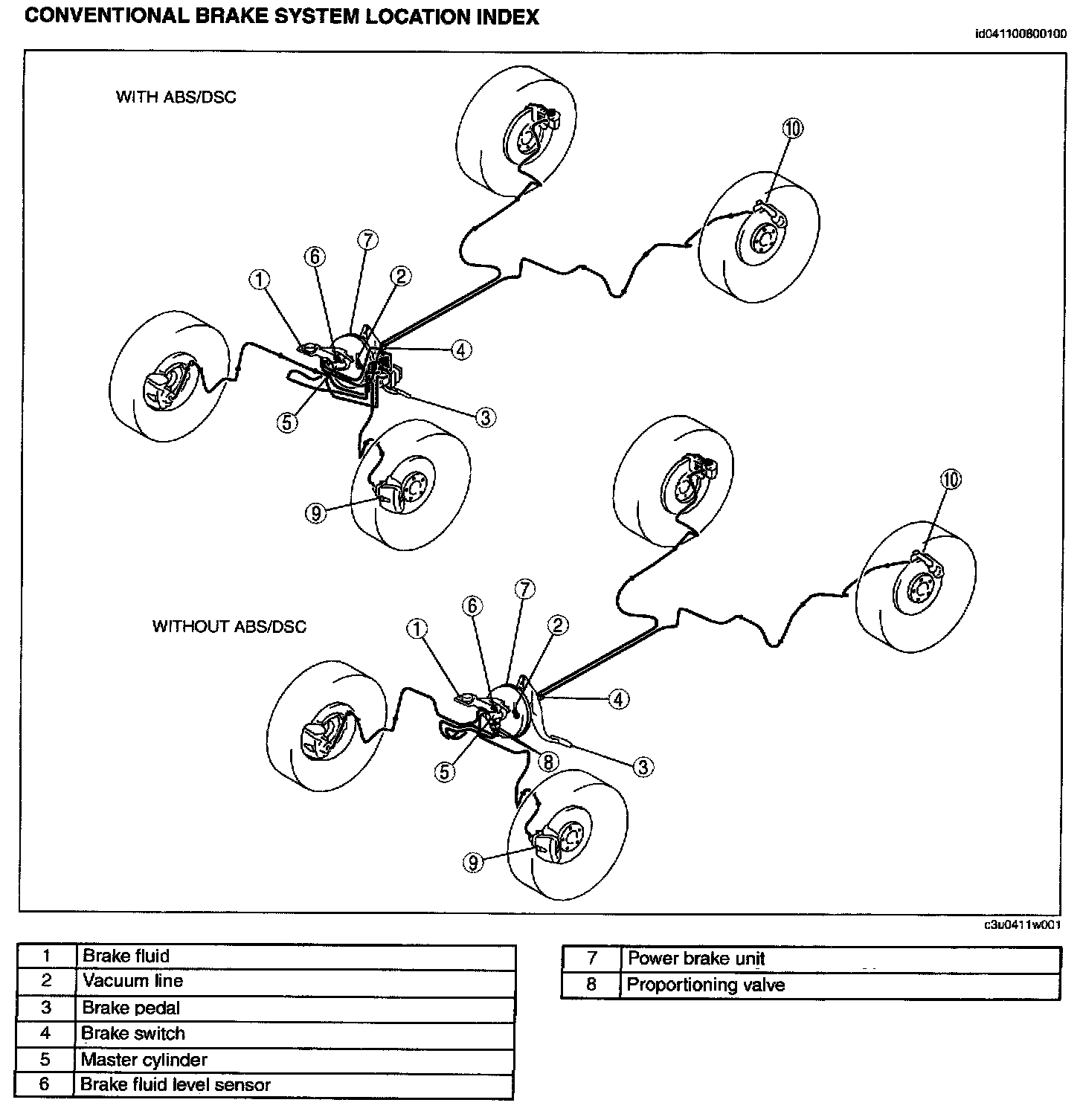

CONVENTIONAL BRAKE SYSTEM LOCATION INDEX

Conventional Brake System Location Index (Part 1):




Conventional Brake System Location Index (Part 2):
