Fuel Pump Unit/Fuel Gauge Sender Unit

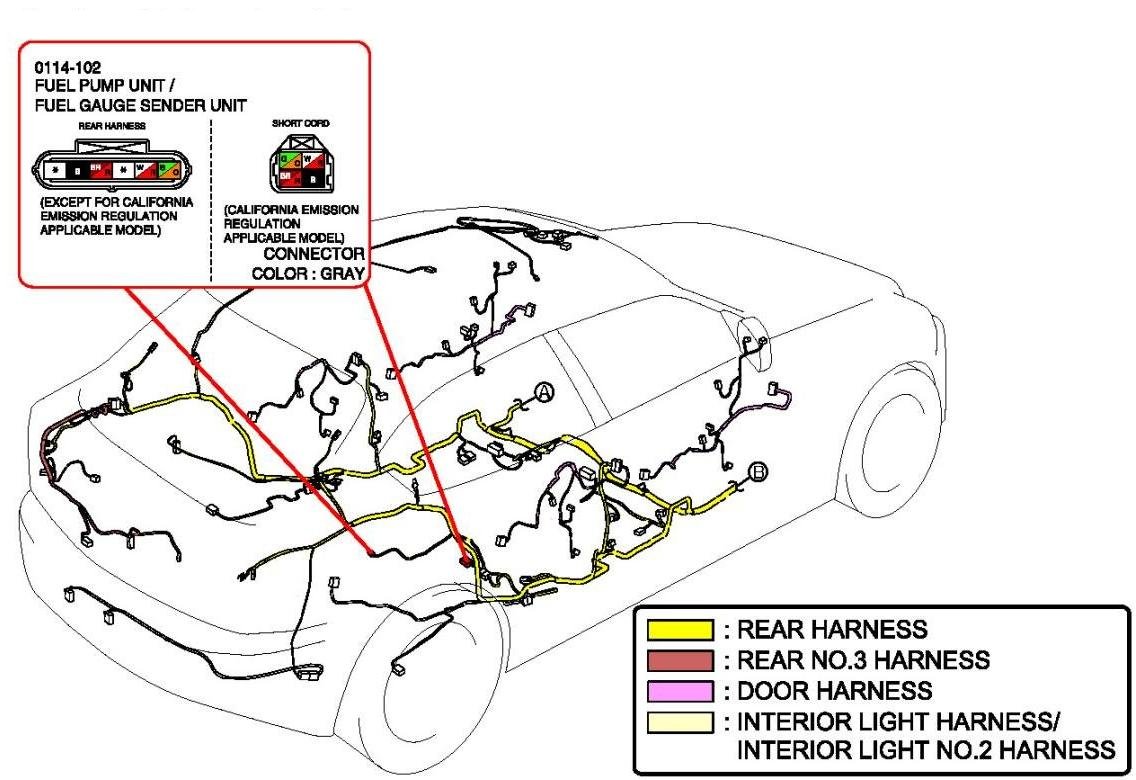

Fuel Pump Unit/Fuel Gaguge Sender Unit:

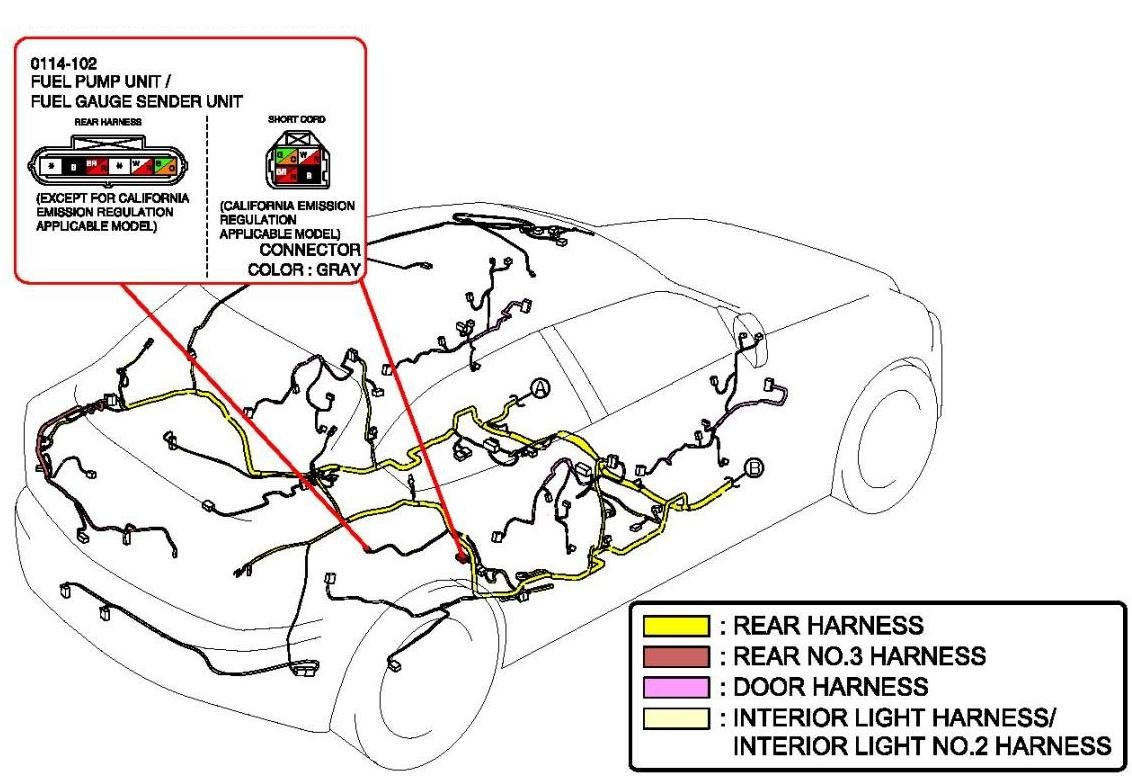

Fuel Pump Unit/Fuel Gaguge Sender Unit:

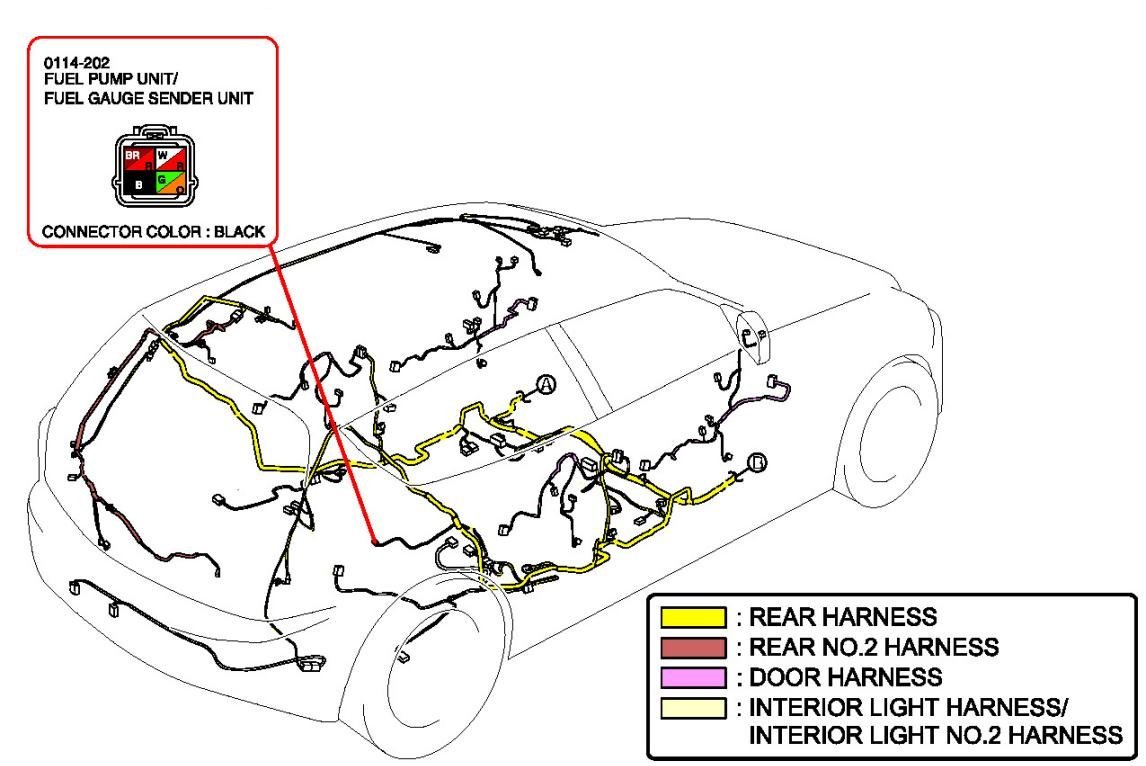

Fuel Pump Unit/Fuel Gaguge Sender Unit:
