System Schematic

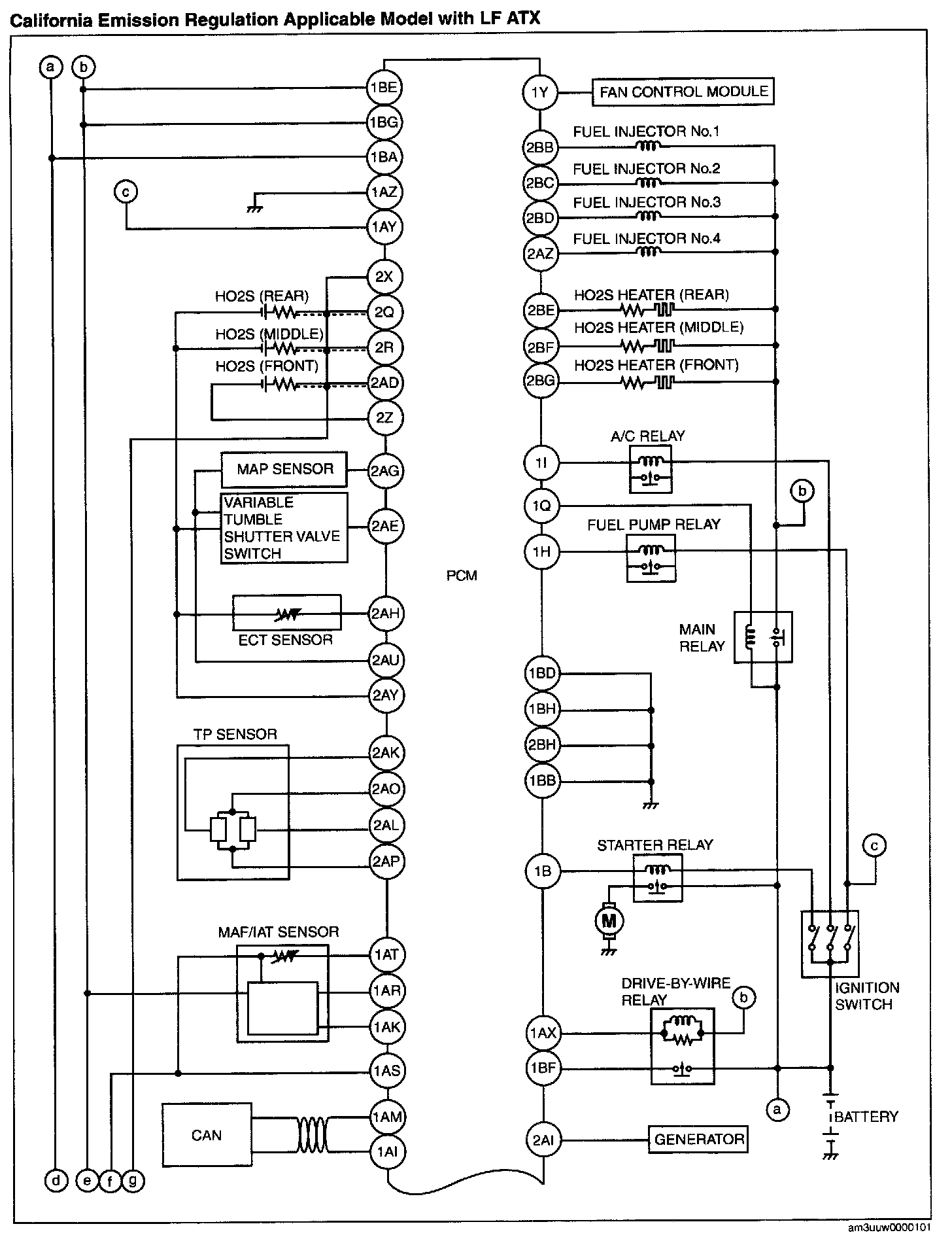

California Emission Regulation Applicable Model With LF ATX Part 1:

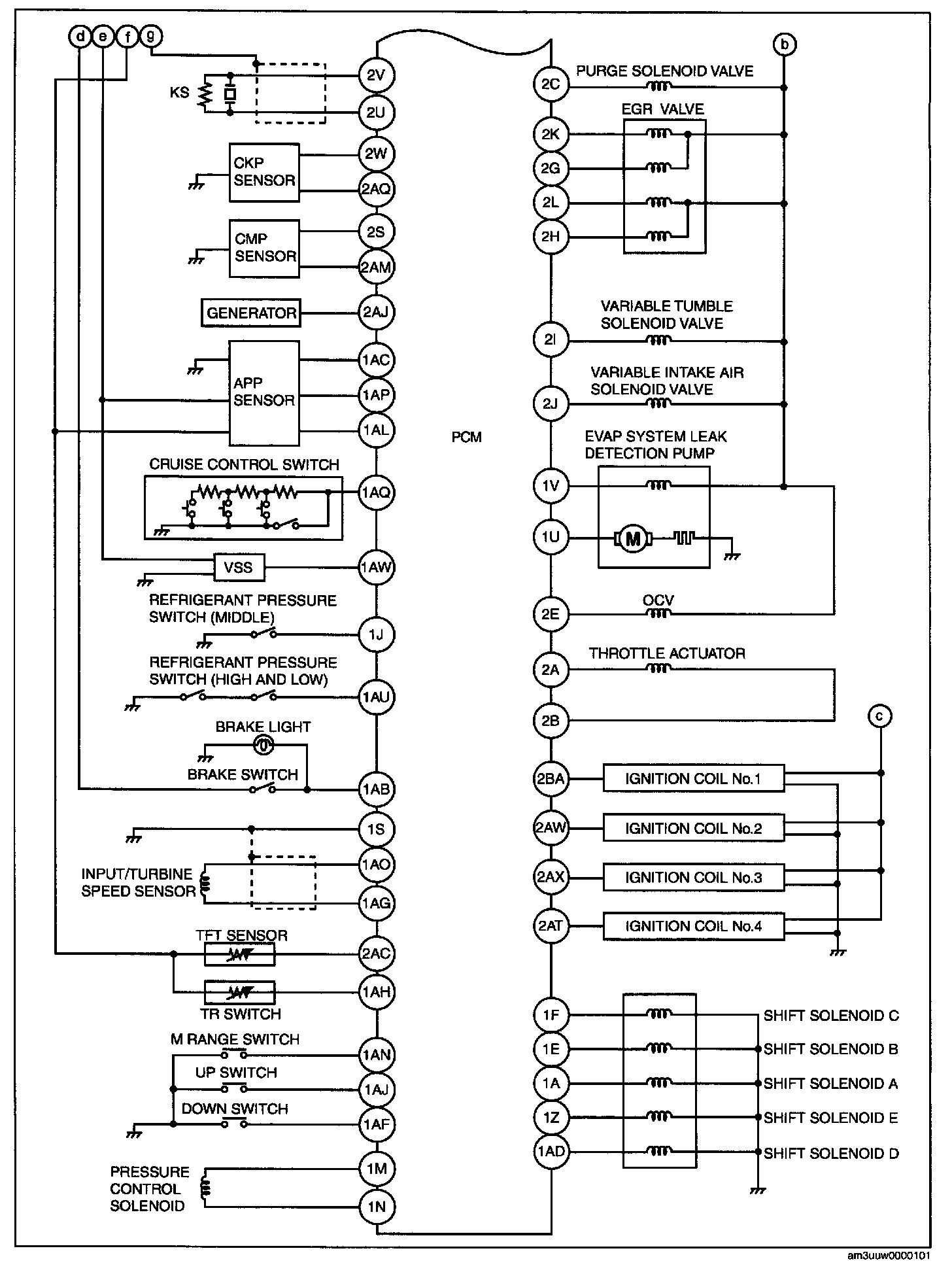

California Emission Regulation Applicable Model With LF ATX Part 2:

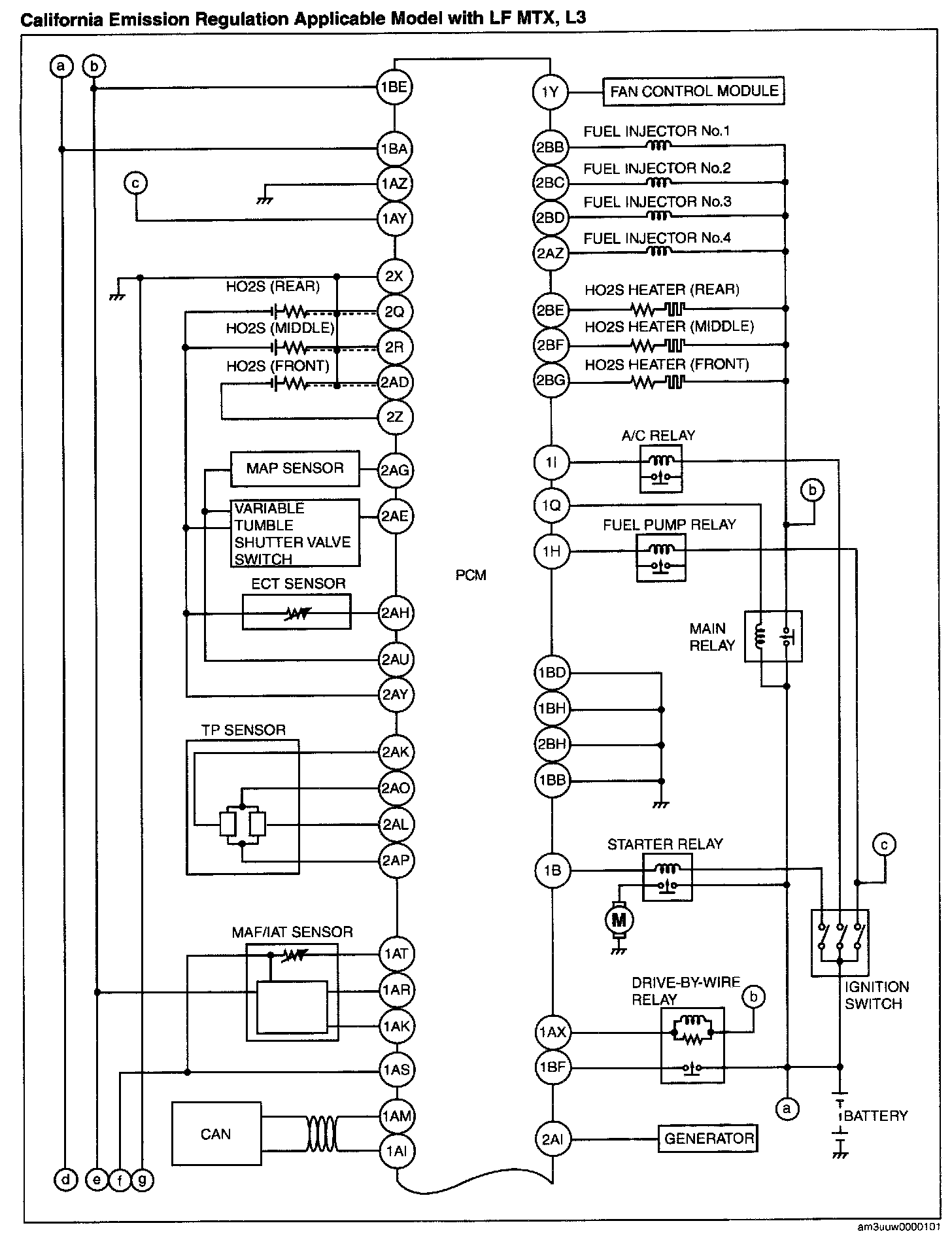

California Emission Regulation Applicable Model With LF MTX, L3 Part 1:

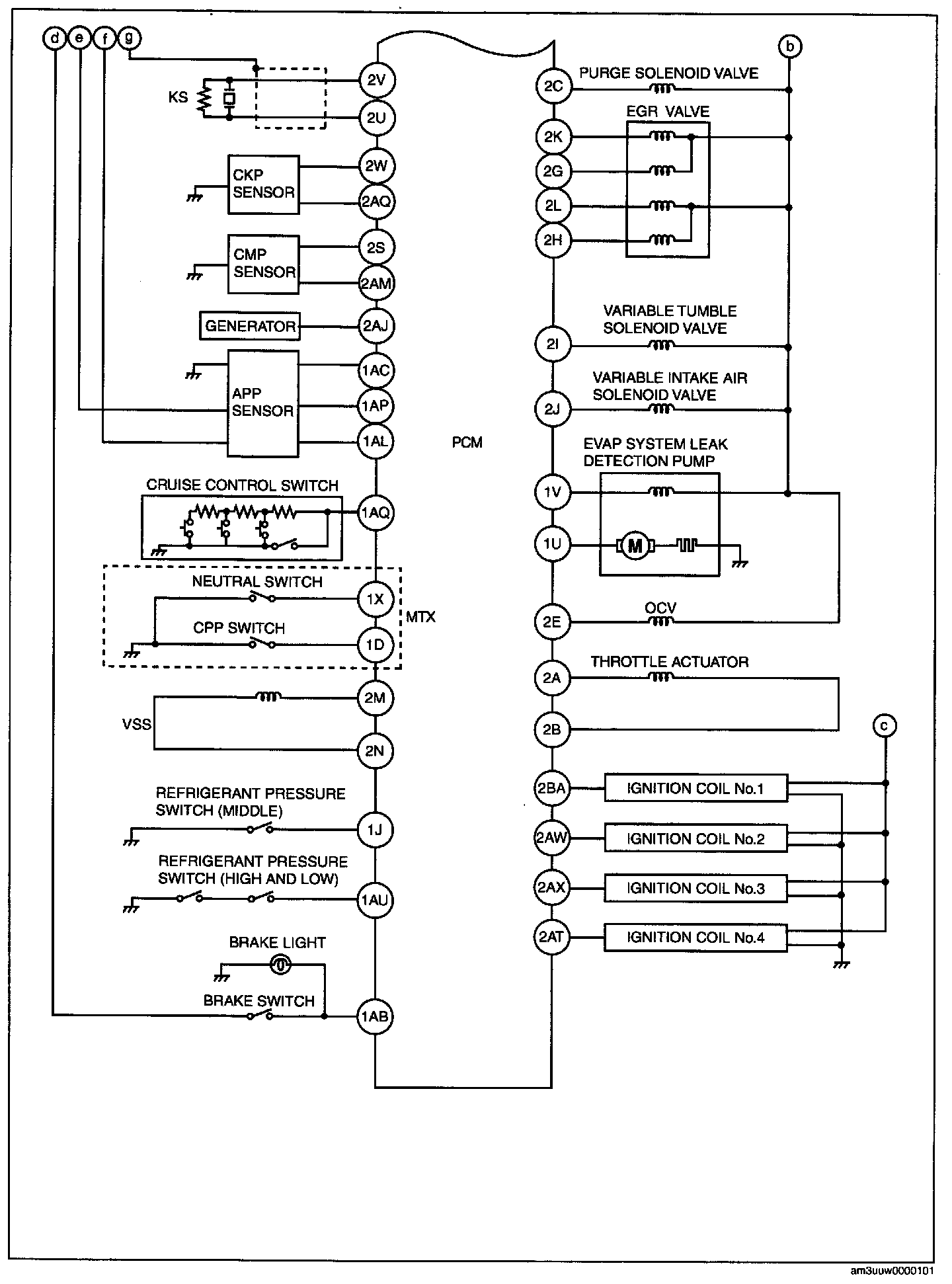

California Emission Regulation Applicable Model With LF MTX, L3 Part 2:

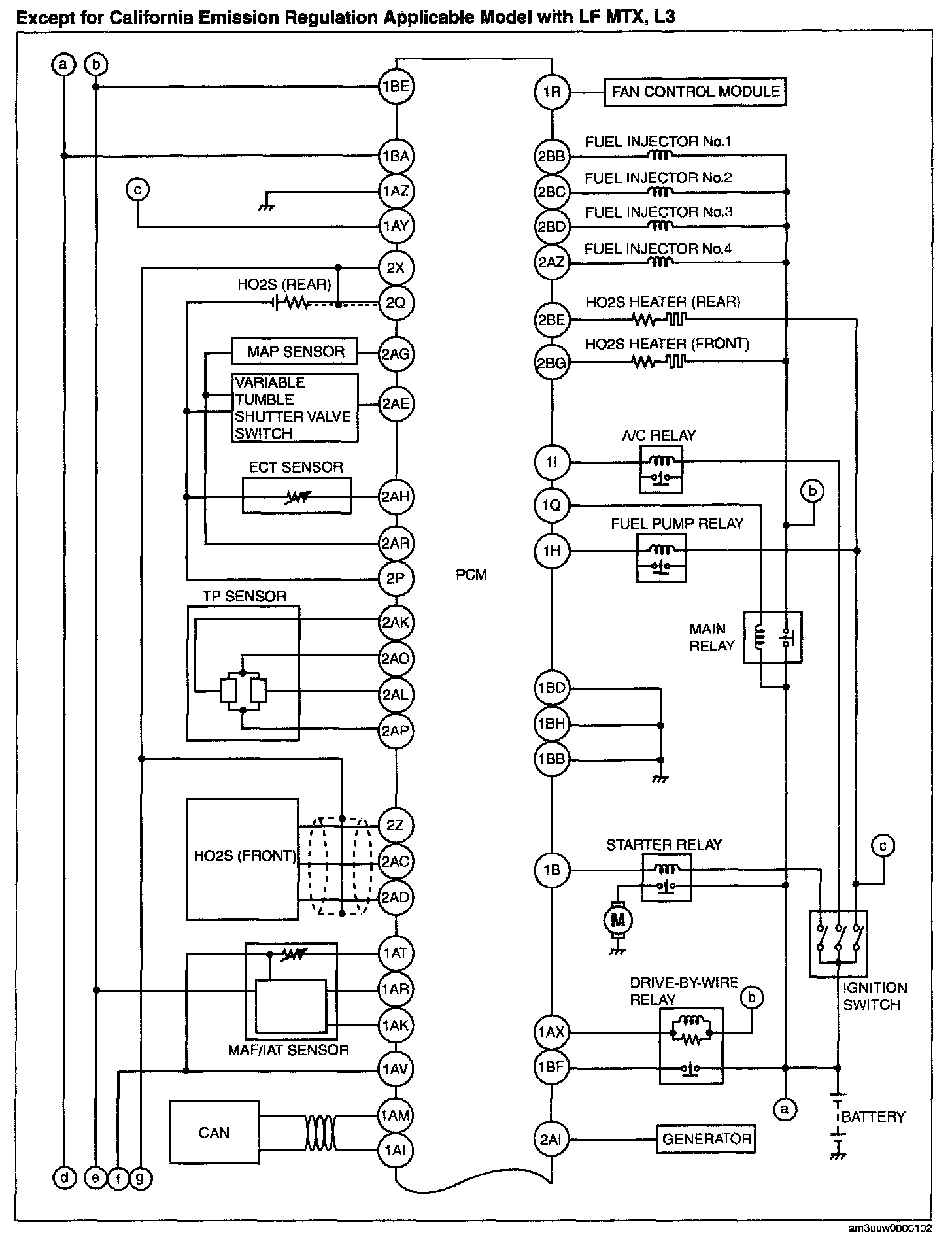

Except For California Emission Regulation Applicable Model With LF ATX Part 1:

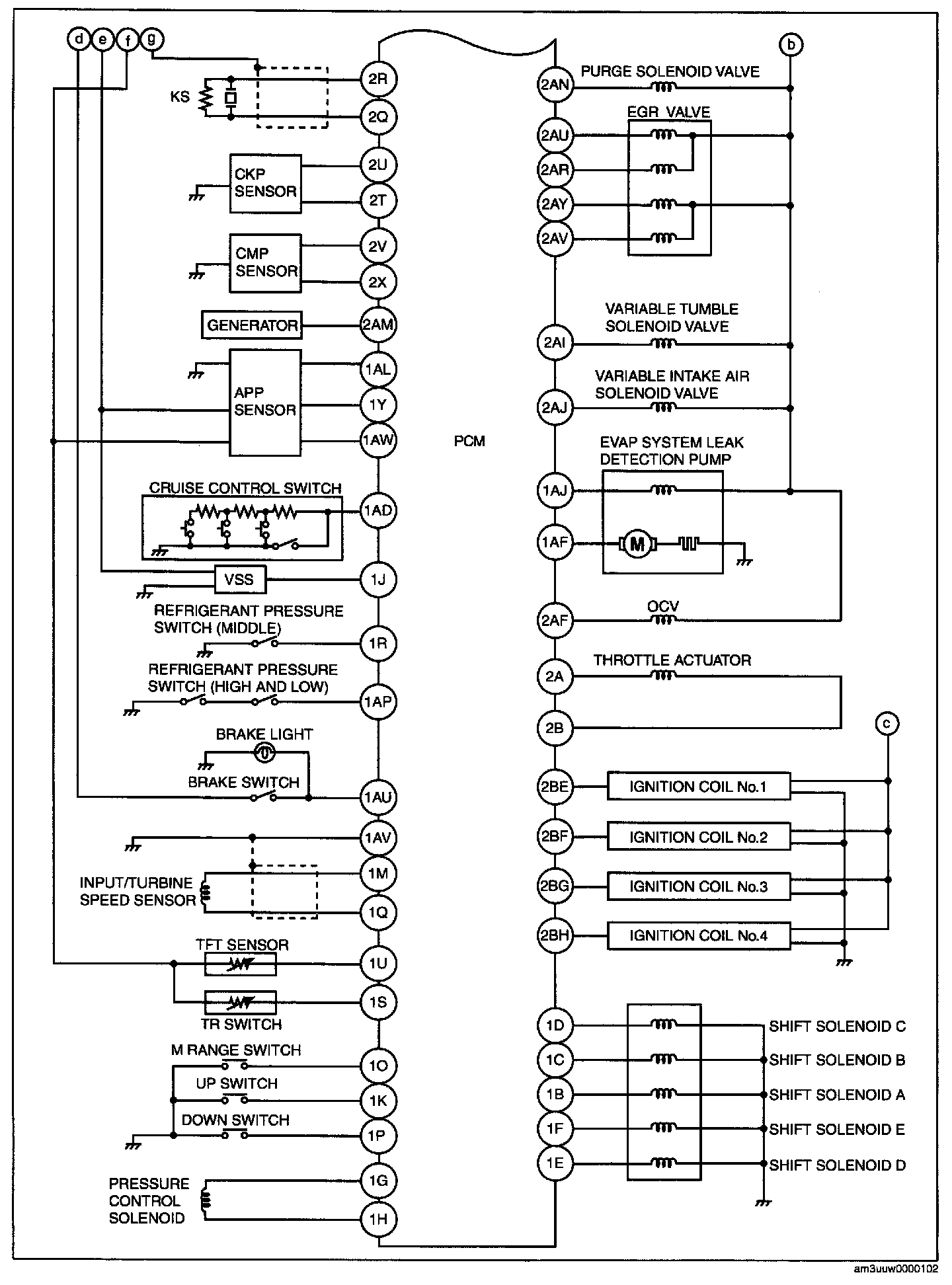

Except For California Emission Regulation Applicable Model With LF ATX Part 2:

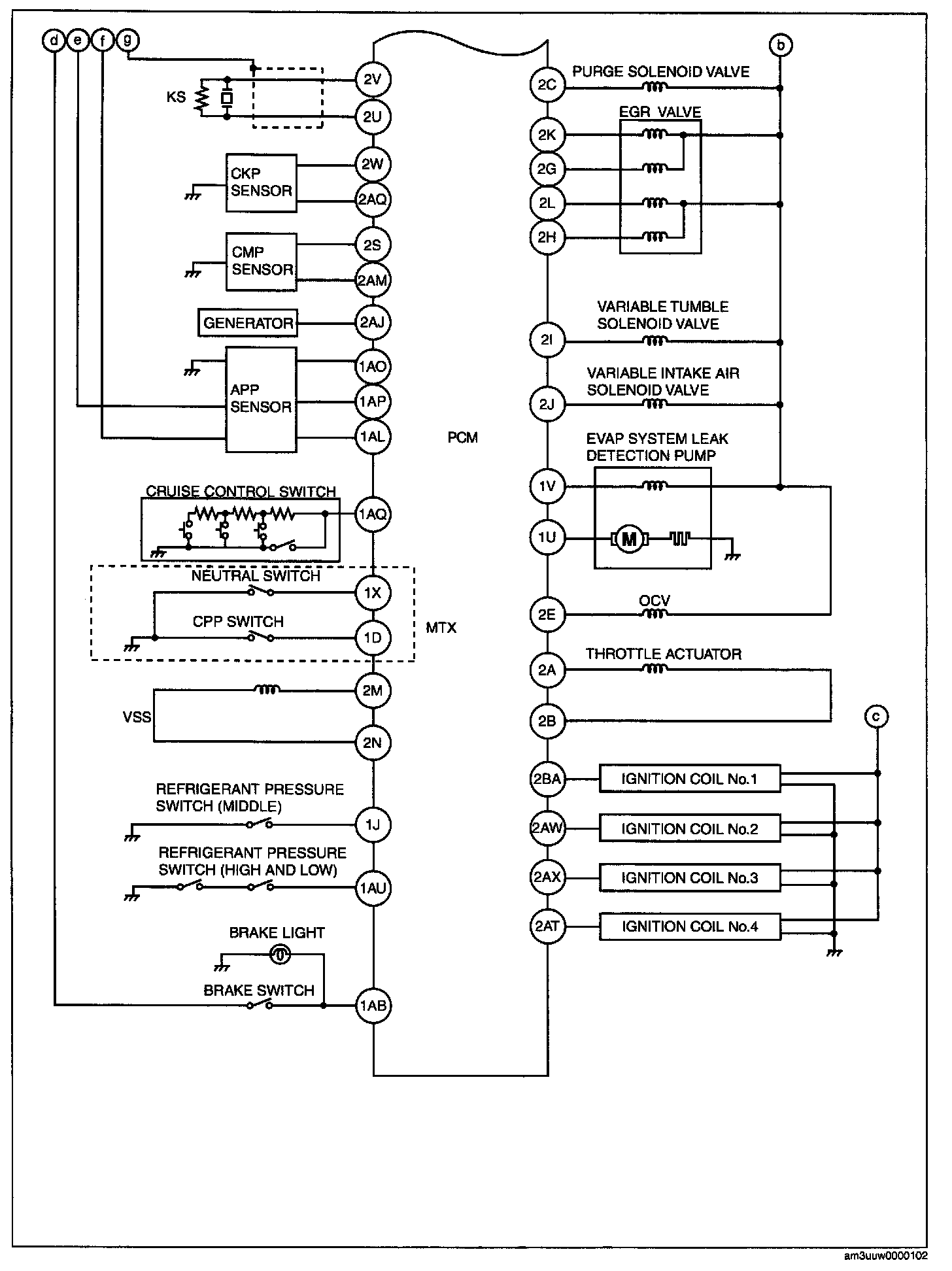

Except For California Emission Regulation Applicable Model With LF MTX:

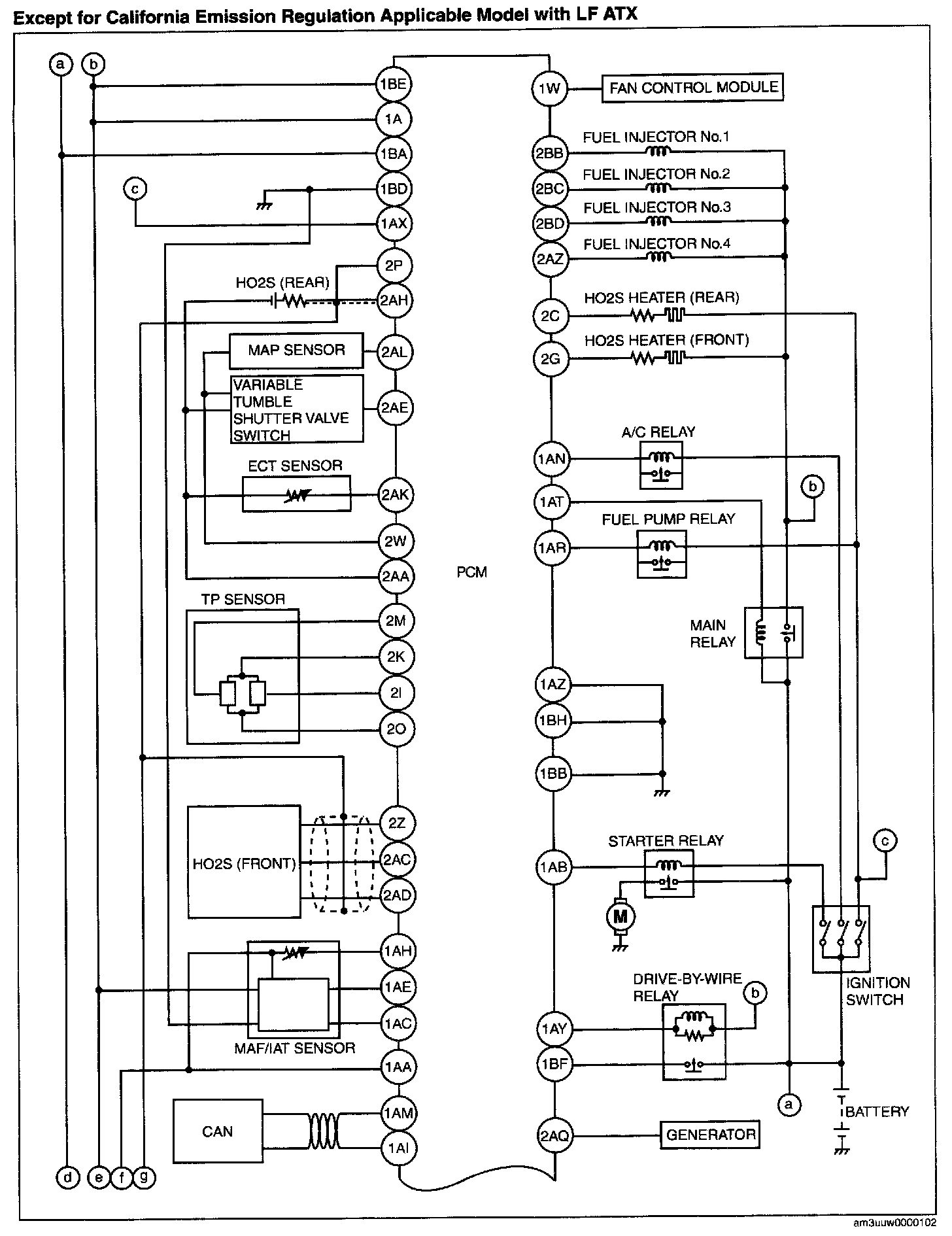

Except For California Emission Regulation Applicable Model With LF ATX:
