Solar Sensor: Service and Repair

SOLAR RADIATION SENSOR REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Pry the solar radiation sensor from the dashboard using a flathead screwdriver wrapped with protective tape.

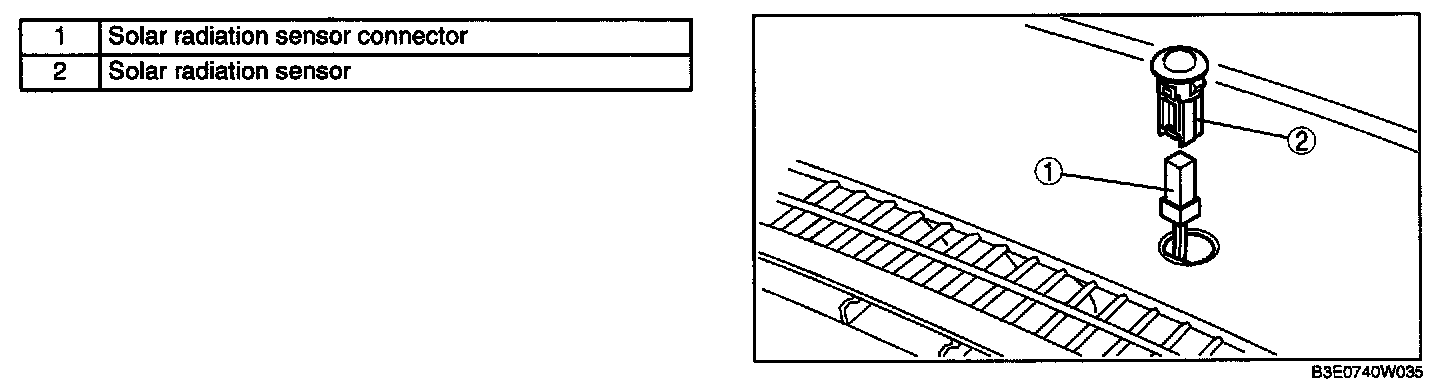

3. Remove in the order indicated in the table.

CAUTION: After the solar radiation sensor removal, the sensor connector could fall in the dashboard making the installation difficult. Therefore, hold the rooted end of the sensor connector using a clip or similar tool to prevent it from falling.

4. Install in the reverse order of removal.
