Solar Sensor: Testing and Inspection

SOLAR RADIATION SENSOR INSPECTION

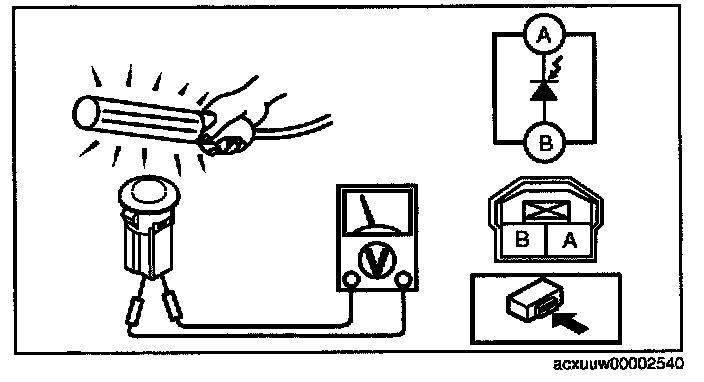

1. Shine a fluorescent light or expose the solar radiation sensor to natural sunlight.

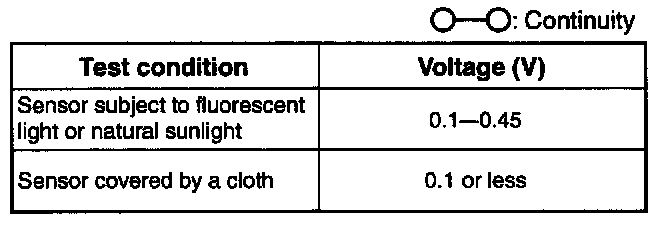

2. Connect the positive (+) lead to terminal A and the negative (-) lead to terminal B of the solar radiation sensor, and verify that the voltages are as shown in the table.
- If the voltage is not as specified, replace the solar radiation sensor.
