Front Combination Light

FRONT COMBINATION LIGHT REMOVAL/INSTALLATION

WARNING: Incorrect servicing of the discharge headlights could result in electrical shock. Before servicing the discharge headlights, always refer to the discharge headlight service warnings.

1. Disconnect the negative battery cable.
2. Remove the front bumper.

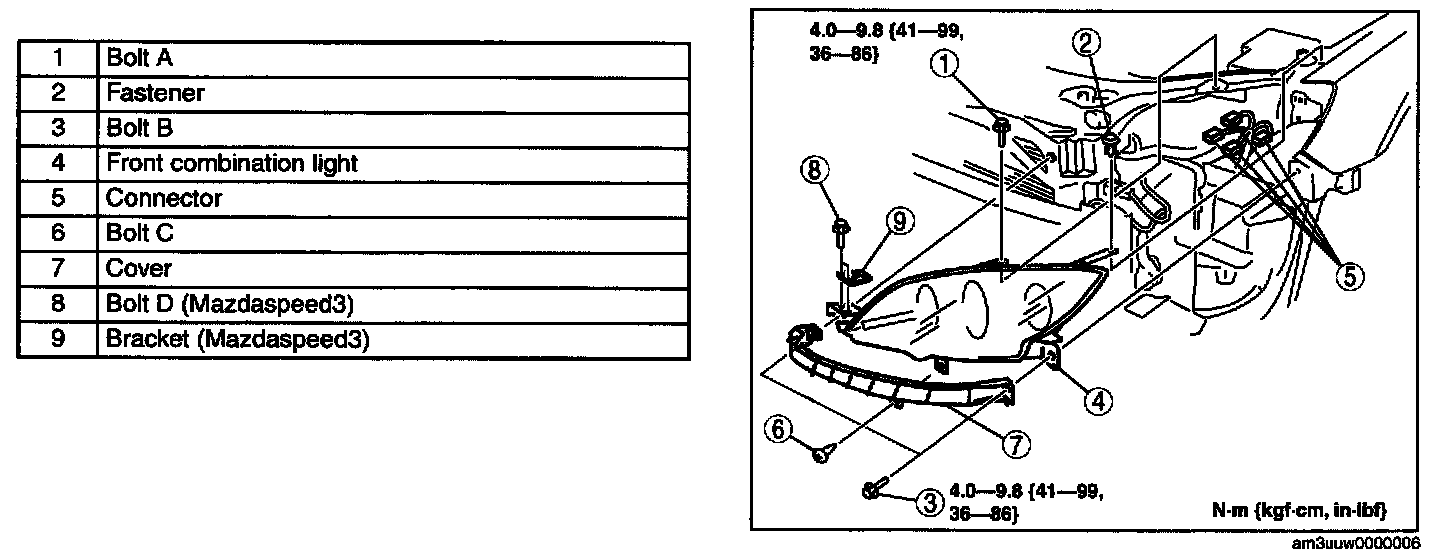

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
5. Adjust the headlight aiming. (See HEADLIGHT AIMING)
