Camber Adjustment

Camber and Caster angle Adjustment
1. Remove the shock absorber upper nuts.

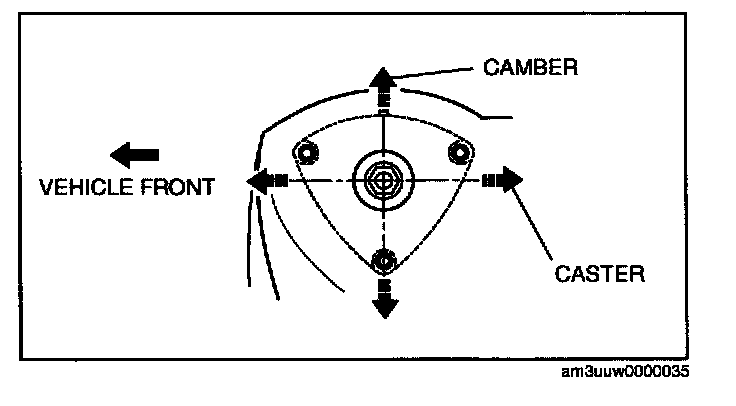

2. Move the shock absorber and coil spring to adjust the camber and caster angle.

Note:
^ Moving the shock absorber and coil spring to the right or left side of the vehicle allows camber adjustment and forward and backward of the vehicle allows caster adjustment.
^ Available camber adjustment range: ± 10'
^ Available caster adjustment range: ± 10'
3. Install the shock absorber upper nuts.
4. Reinspect the alignment to make sure that it is within the specification.
