Specification (Unloaded)

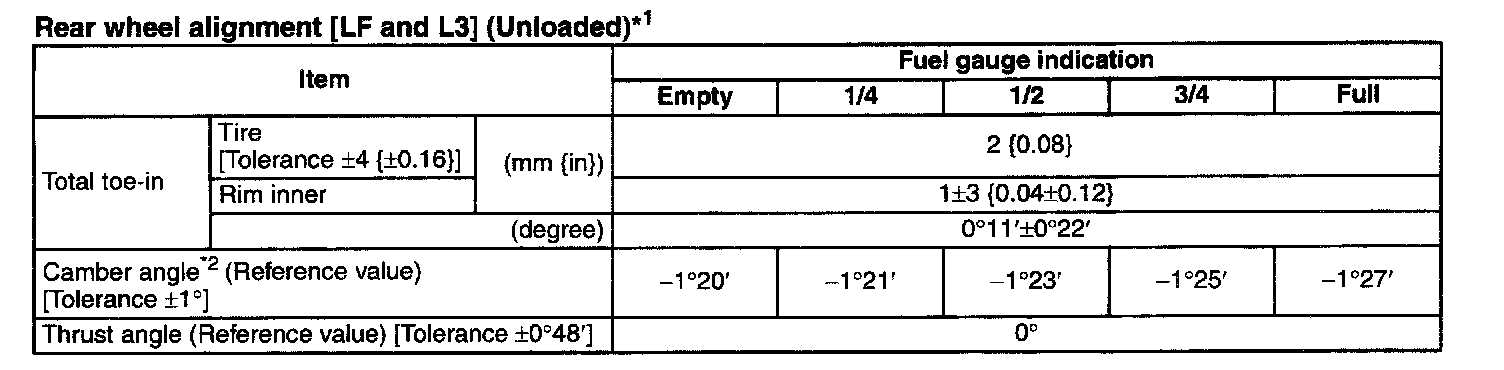

Rear wheel alignment [LF and L3] (Unloaded)*'

Rear Wheel Alignment [LF And L3] (Unloaded):

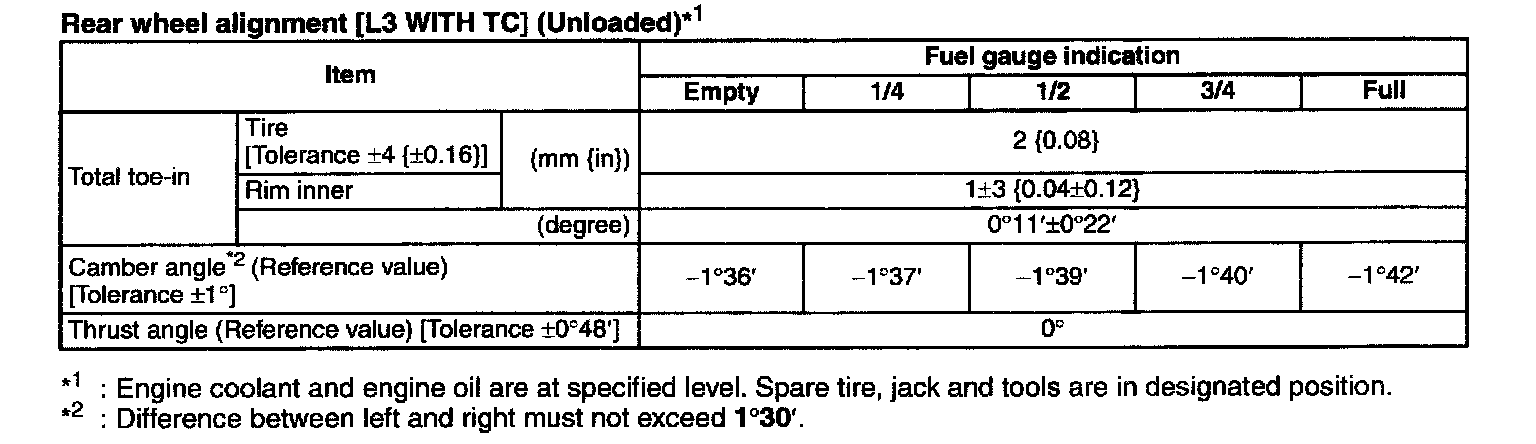

Rear wheel alignment [L3 WITH TC] (Unloaded)*'

Rear Wheel Alignment [L3 With TC] (Unloaded):

*1 Engine coolant and engine oil are at specified level. Spare tire, jack and tools are in designated position.
*2 Difference between left and right must not exceed 1030'.

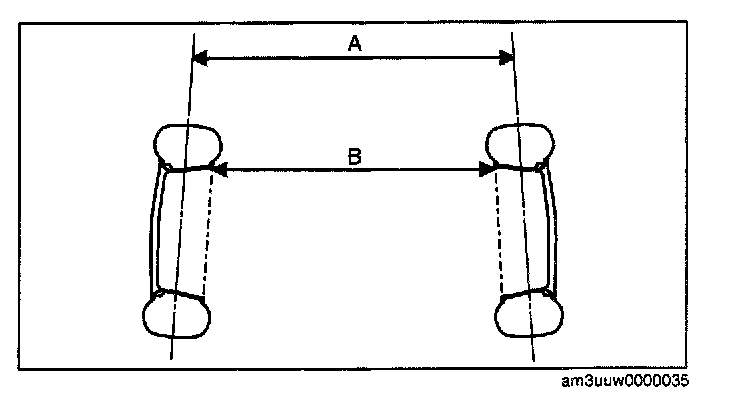

Note: Total toe-in measuring position
^ Tire: A indicated in the figure (between the center of the tires)
^ Rim inner: B indicated in the figure (between the inner side of the rims)
