Clutch Switch: Testing and Inspection

CLUTCH PEDAL POSITION (CPP) SWITCH INSPECTION[LF, L3]

NOTE: Before performing the following inspection, make sure to follow the troubleshooting flowchart.

Continuity Inspection
1. Remove the CPP switch.

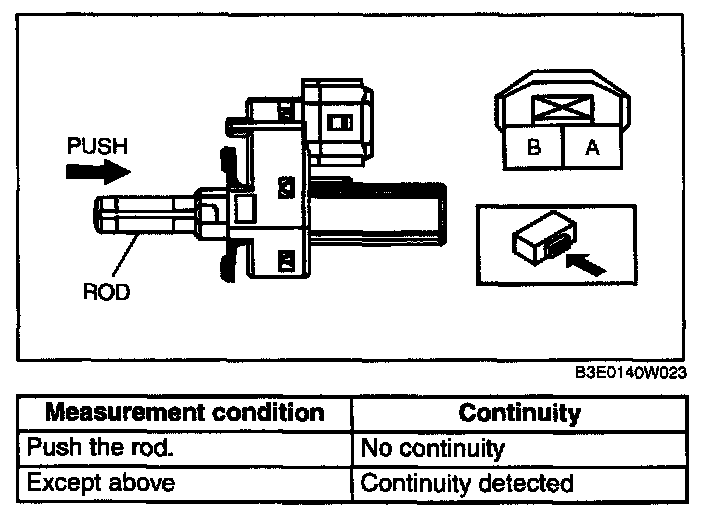

2. Verify that the continuity between CPP switch terminals A and B is as indicated in the table.
- If there is no malfunction, perform the "Circuit Open/Short Inspection".
- If there is any malfunction, replace the CPP switch.




Circuit Open/Short Inspection




1. Disconnect the PCM connector.
2. Disconnect the CPP switch connector.

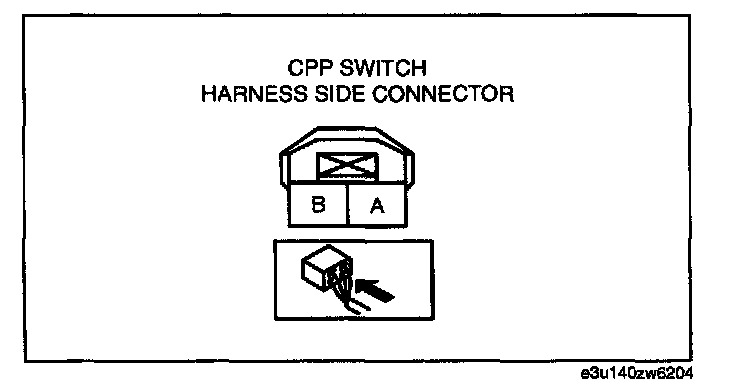

3. Inspect the following wiring harnesses for an open or short circuit. (Continuity inspection)

Open circuit
- If there is no continuity in the following wiring harnesses, there is an open circuit. Repair or replace the wiring harness.

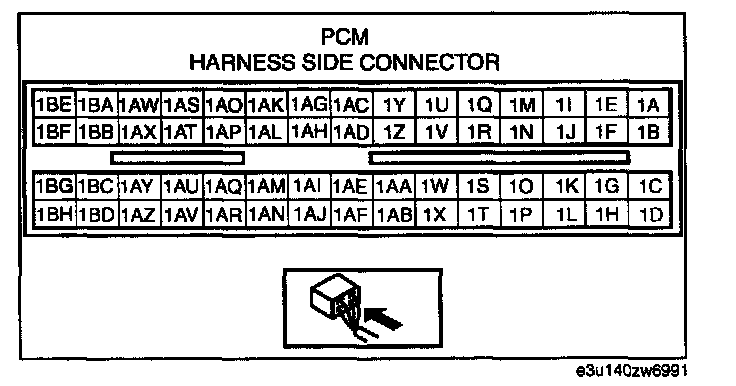

- CPP switch terminal A and PCM terminal 1D
- CPP switch terminal B and body ground

Short circuit
- If there is continuity in the following wiring harnesses, there is a short circuit. Repair or replace the wiring harness.
- CPP switch terminal A and body ground
- CPP switch terminal A and power supply
- CPP switch terminal B and power supply
