Diagnostic Monitoring Test Results Access Procedure

Diagnostic Monitoring Test Results Access Procedure

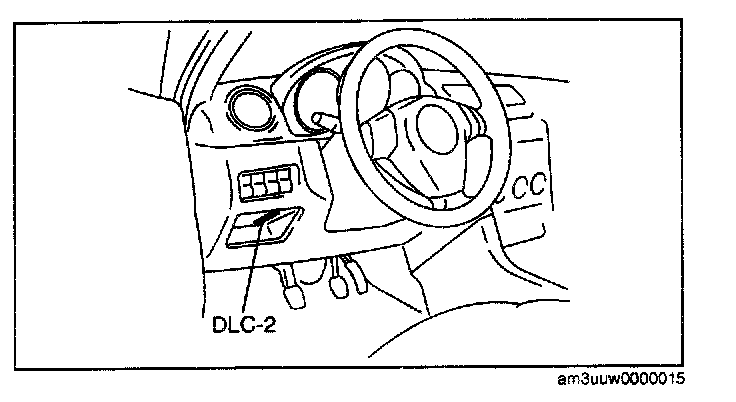

1. Connect the M-MDS to the DLC-2.
2. After the vehicle is identified, select the following items from the initial screen of the M-MDS.
- When using the IDS (laptop PC)
1. Select the 'Toolbox" tab.
2. Select "Powertrain".
3. Select "OBD Test Modes".
4. Select "Mode 6 On-Board Test Results".

- When using the PDS (Pocket PC)
1. Select "OBD-II Modes".
2. Select "Mode 6 On-Board Test Results".

3. Verify the diagnostic monitoring test results according to the directions on the screen.
