Quick Diagnostic Chart

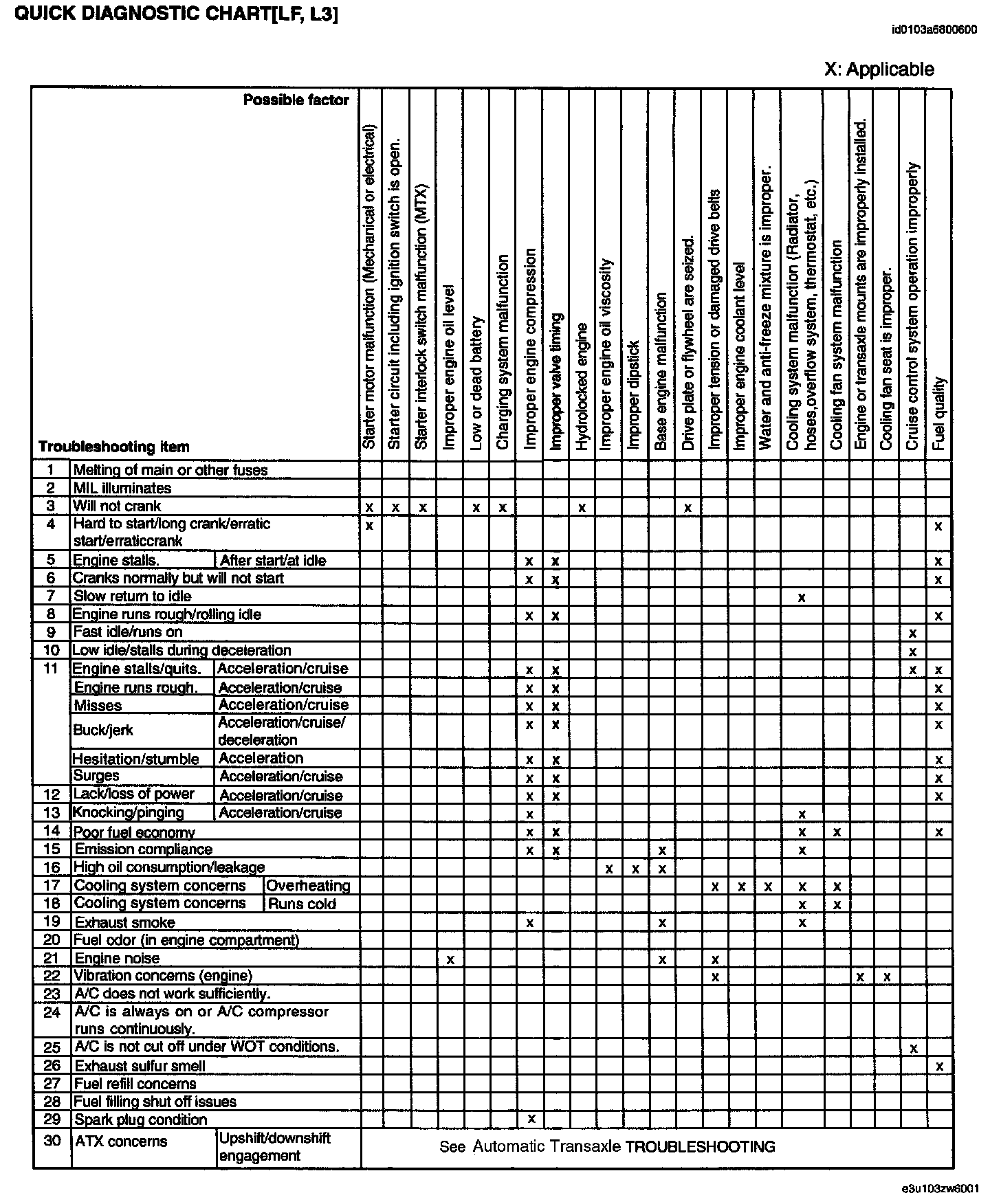

Quick Diagnostic Chart[LF, L3] Part 1:

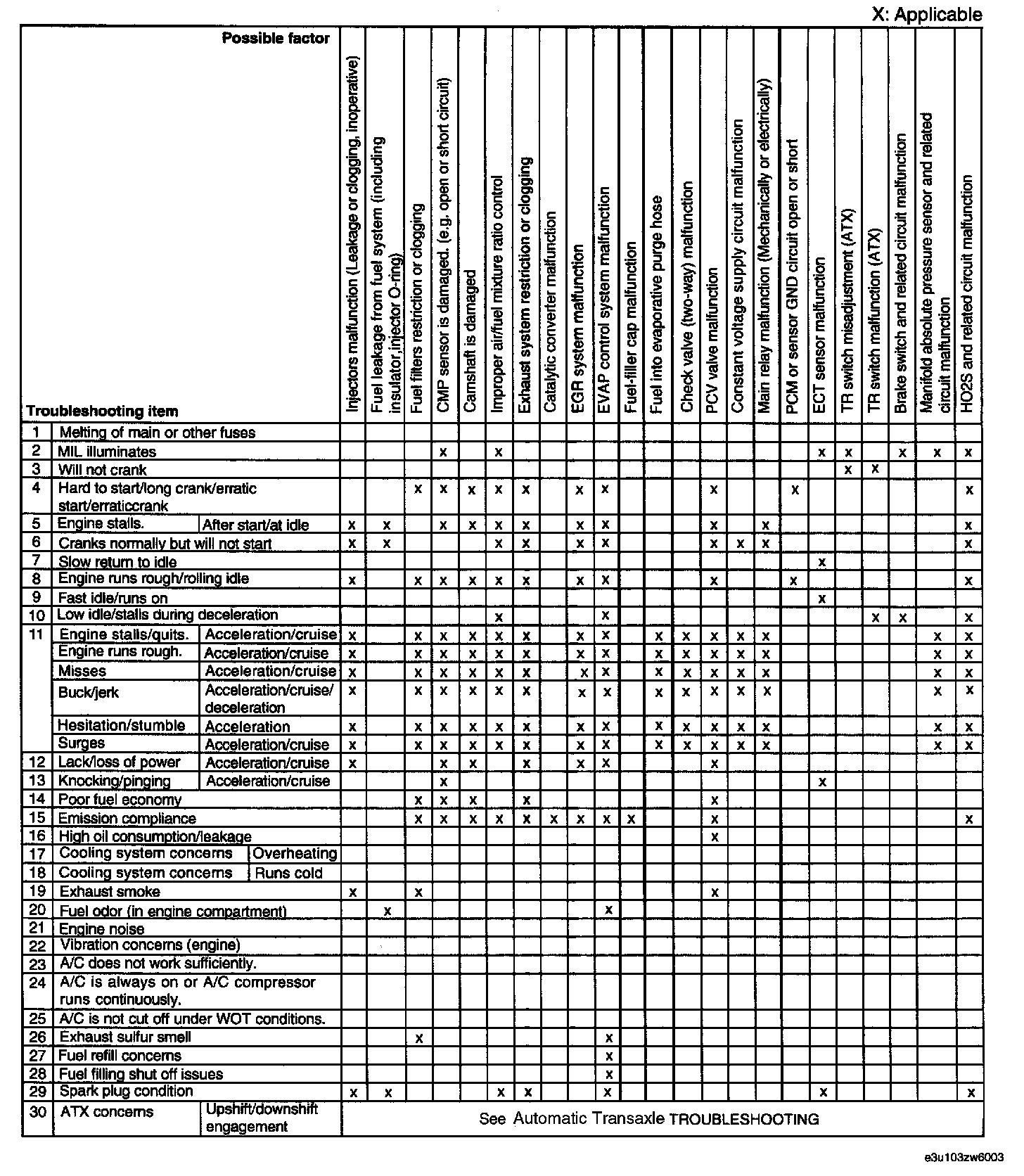

Quick Diagnostic Chart[LF, L3] Part 2:

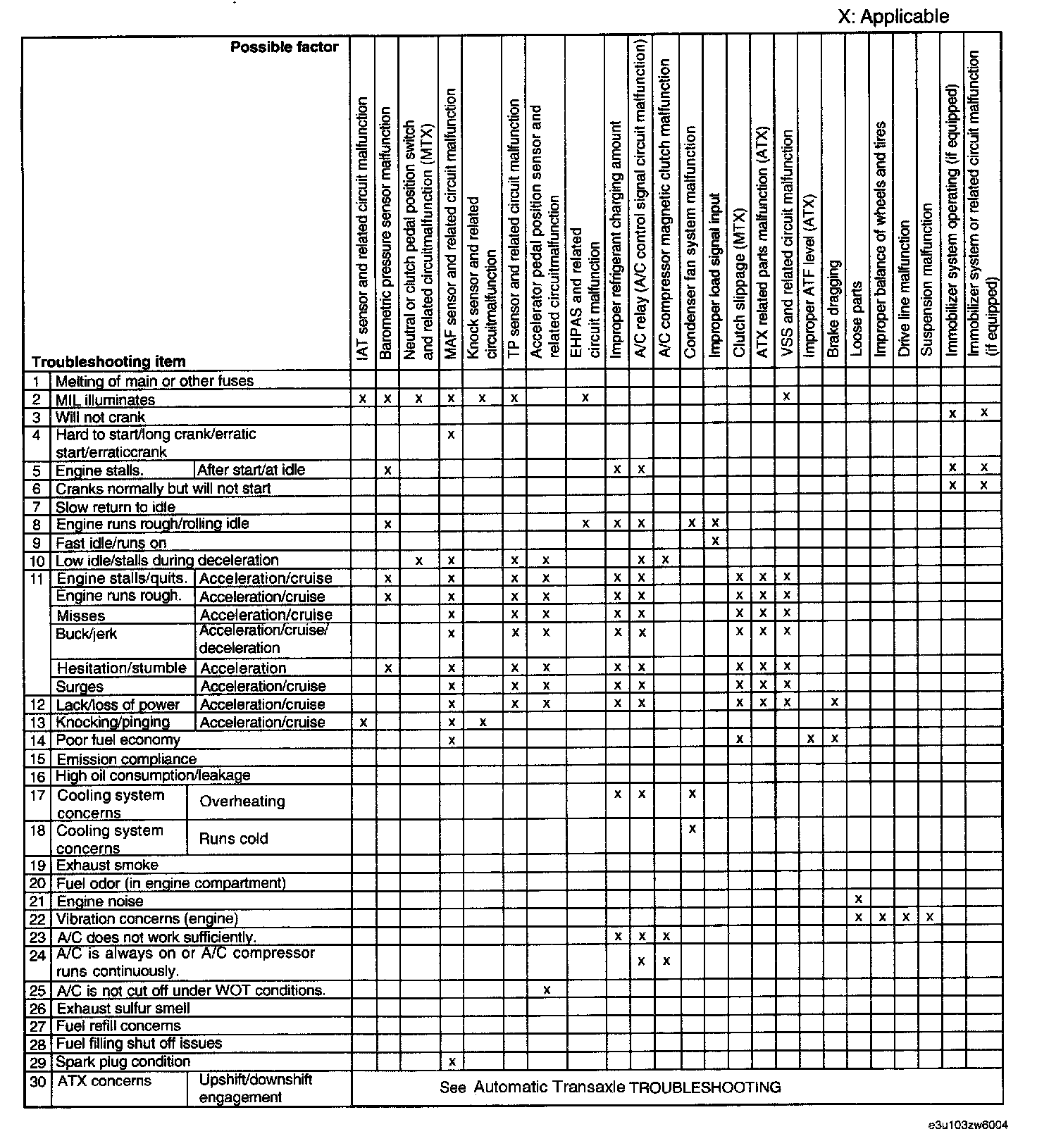

Quick Diagnostic Chart[LF, L3] Part 3:

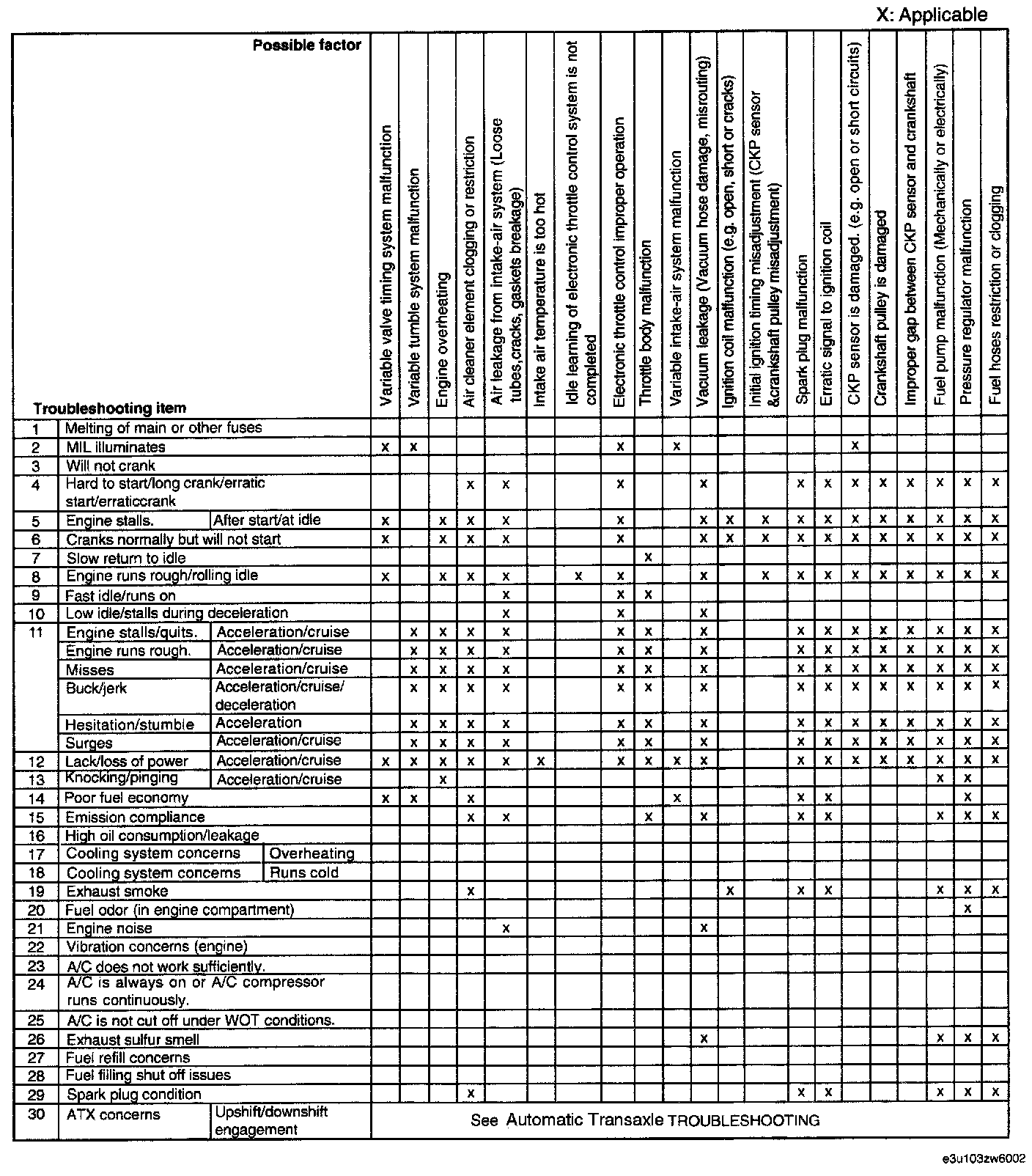

Quick Diagnostic Chart[LF, L3] Part 4:
