Transmission Position Sensor/Switch: Locations

AUTOMATIC TRANSAXLE LOCATION INDEX [FS5A-EL]

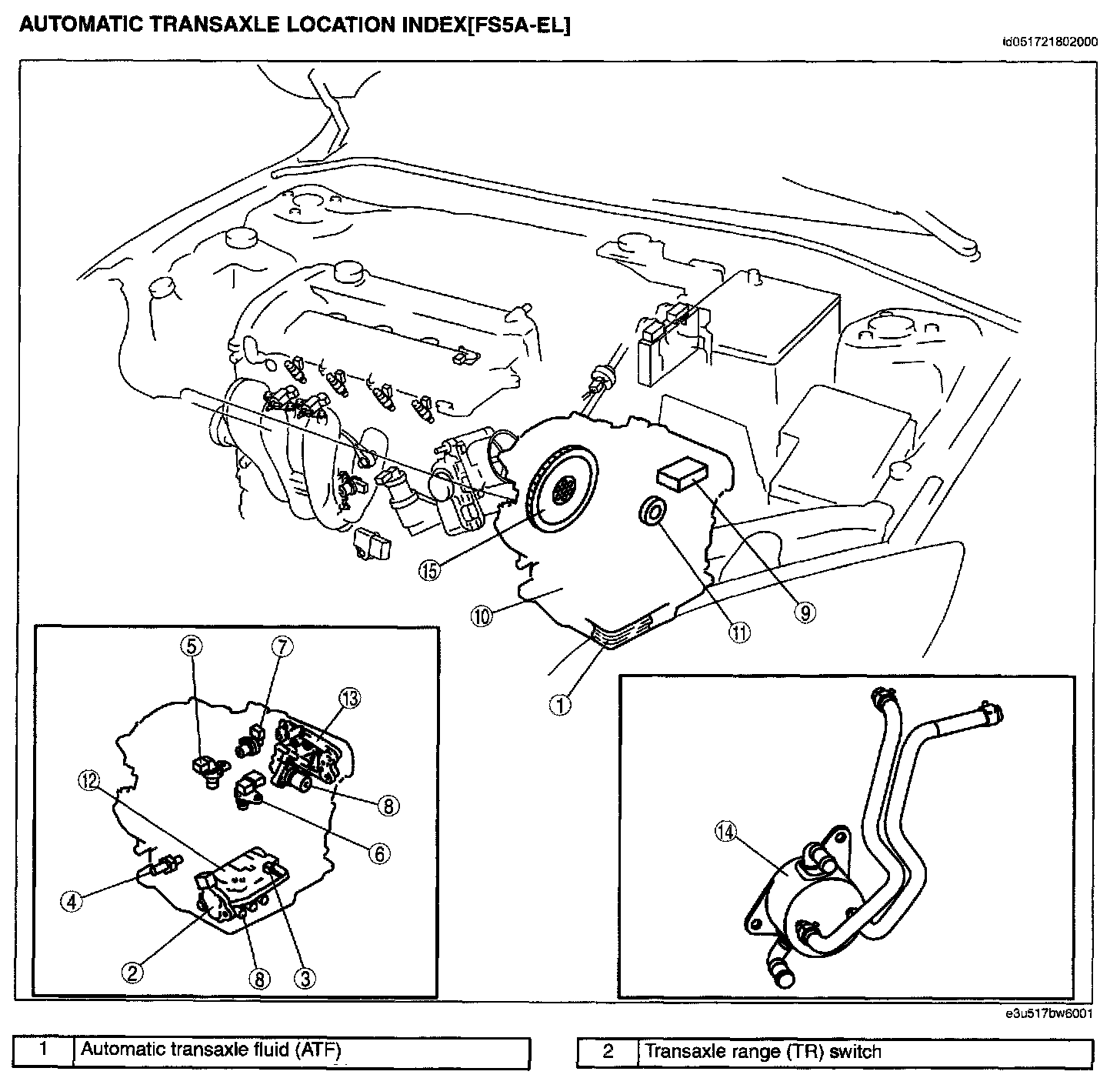

Automatic Transaxle Location Index [FS5A-El] (part 1):

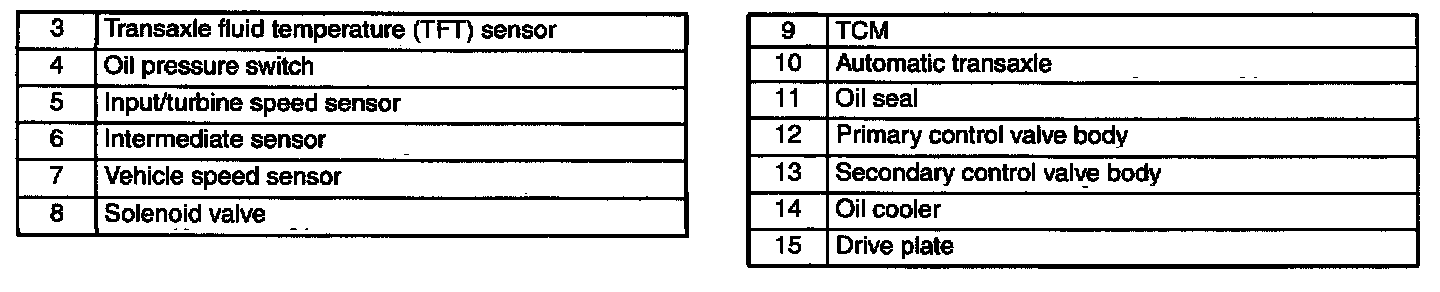

Automatic Transaxle Location Index [FS5A-El] (part 2):
