System Specifications

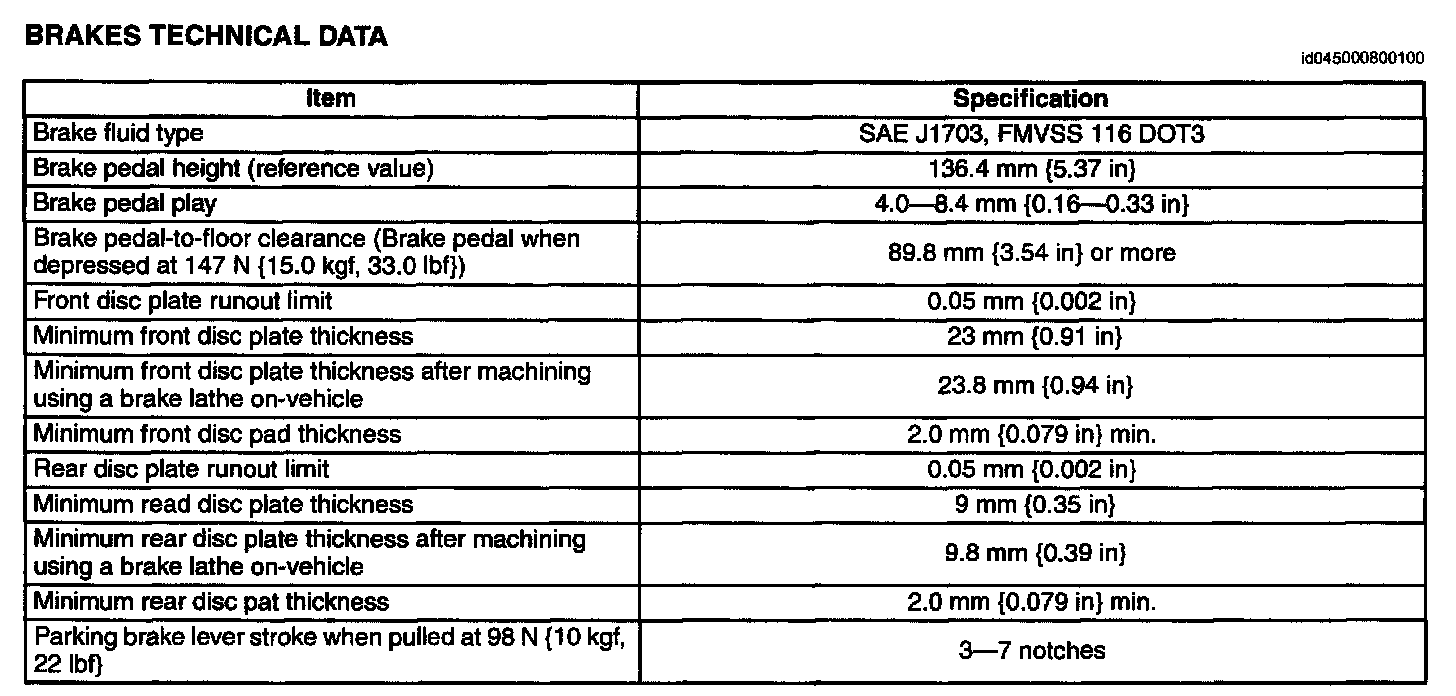

BRAKES TECHNICAL DATA

Brakes Technical Data:

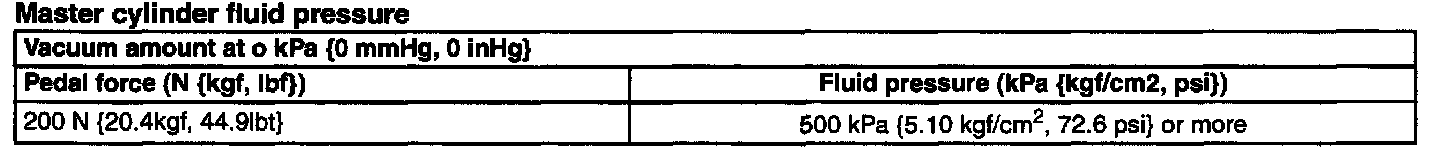

Master Cylinder Fluid Pressure:

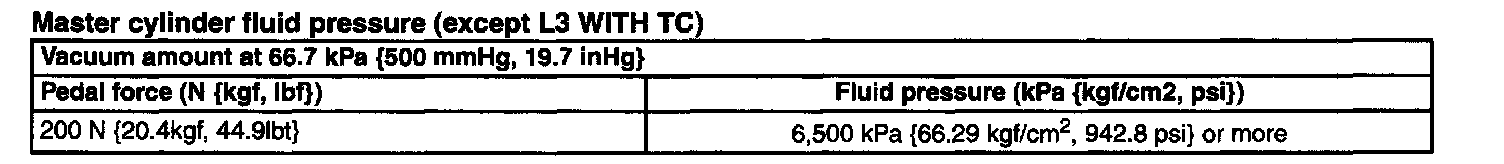

Master Cylinder Fluid Pressure (except L3 With TC):

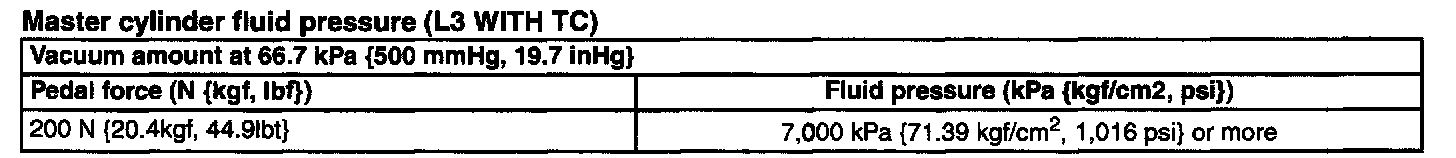

Master Cylinder Fluid Pressure (L3 With TC):

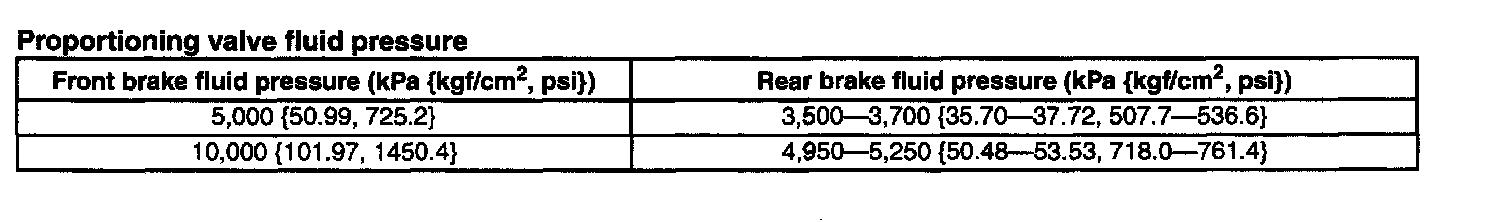

Proportioning Valve Fluid Pressure:
