Oil Pump, Engine
Oil Pump

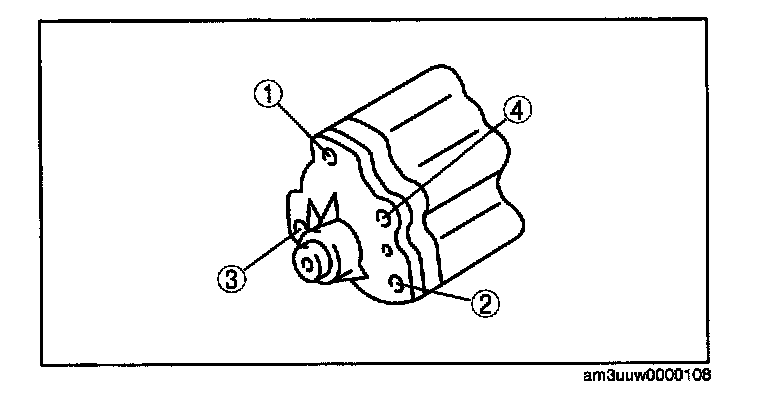

Tighten the oil pump bolts in two steps in the order shown in the figure.
Tightening torque:
Step 1 8 - 12 Nm (82 - 122 kgf-cm, 71 - 105 in-lbf)
Step 2 17 - 23 Nm (1.8 - 2.3 kgf-m, 12.6 - 16.9 ft-lbf)
Tighten the oil pump bolts in two steps in the order shown in the figure.
Tightening torque:
Step 1 8 - 12 Nm (82 - 122 kgf-cm, 71 - 105 in-lbf)
Step 2 17 - 23 Nm (1.8 - 2.3 kgf-m, 12.6 - 16.9 ft-lbf)
