Flywheel

Flywheel

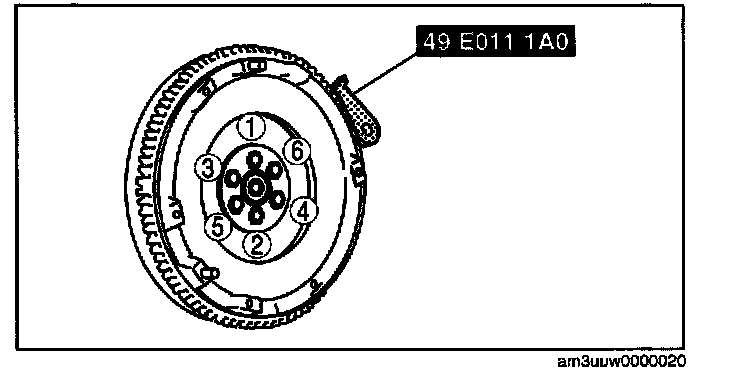

Gradually tighten the flywheel lock bolts or dual mass flywheel lock bolts in a crisscross pattern.
Tightening torque
LF, L3 108 - 116 N-m (11.1 - 11.8 kgf-m, 79.7 - 85.5 ft-lbf)
L3 WITH TC 151.3 - 161.1 N-m (15.5 - 16.4 kgf-m, 111.6 - 118.8 ft-lbf)
