Overhaul

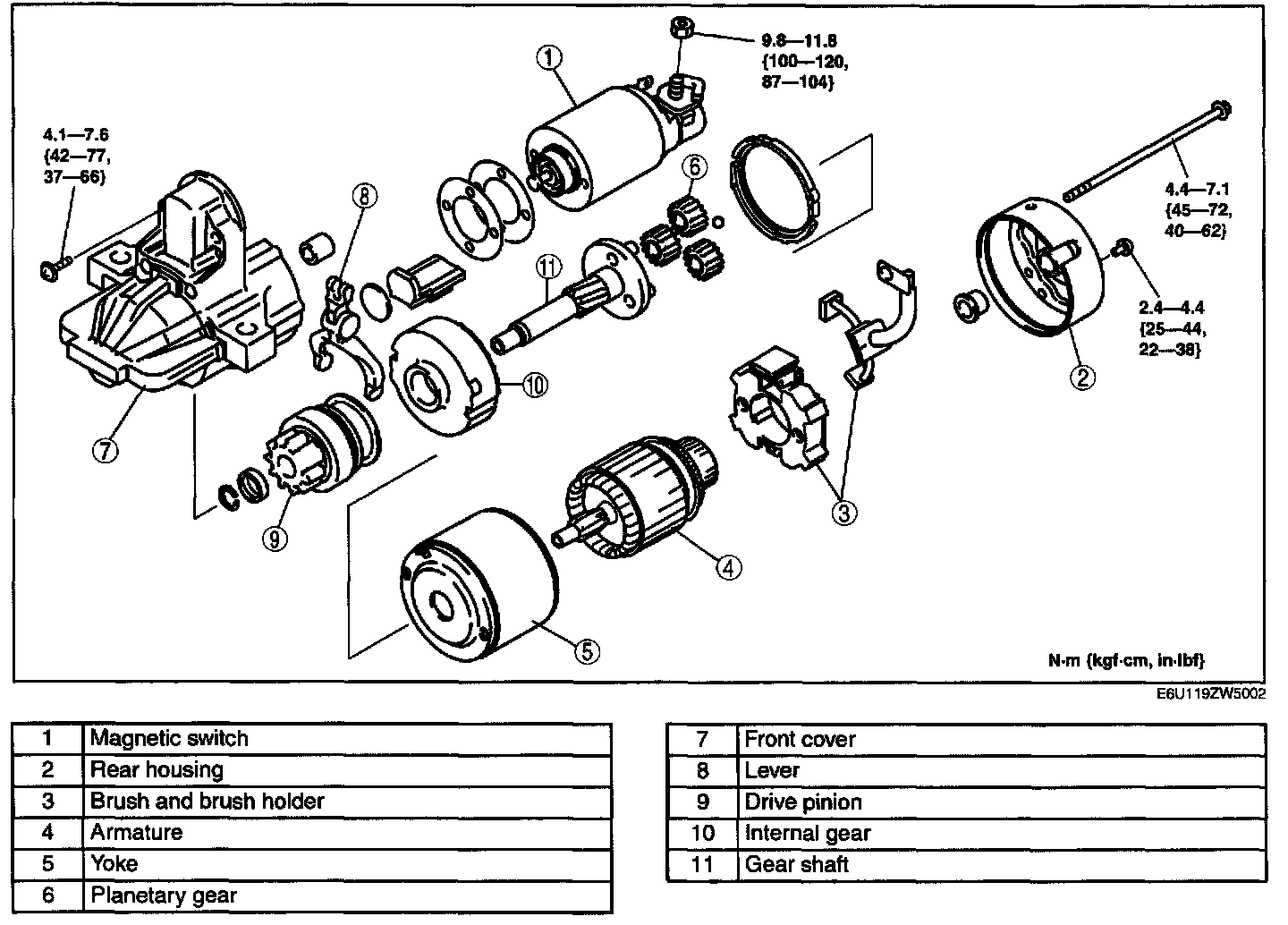

STARTER DISASSEMBLY/ASSEMBLY[LF, L3]




1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
