Control Module: Service and Repair

TCM REMOVAL/INSTALLATION [FS5A-EL]

Caution: Do not apply a shock to or touch the projection on the TCM, otherwise it may not operate normally.

1. Remove the battery duct and battery cover.
2. Disconnect the negative battery cable.
3. Remove the battery, battery box and battery tray.

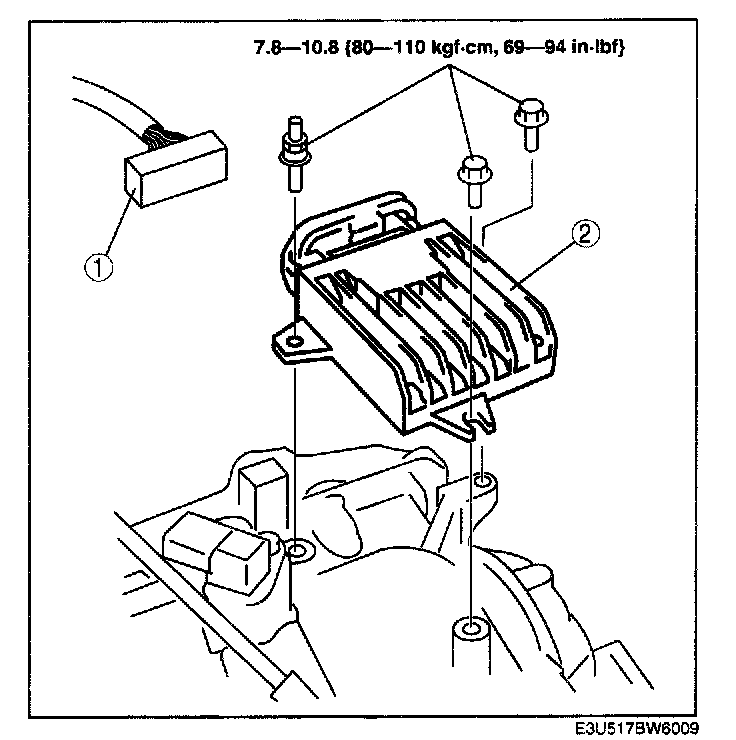

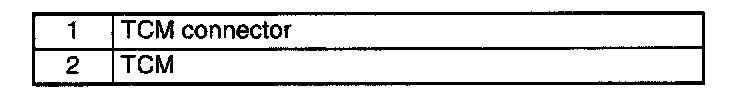

4. Remove in the order indicated in the table.








5. Install in the reverse order of removal.
