Navigation Module: Service and Repair

CAR-NAVIGATION UNIT REMOVAL/INSTALLATION

1. Remove the battery cover.
2. Disconnect the negative battery cable.
3. Remove the following parts:
1. Side wall
2. Front console
3. Front scuff plate
4. Front side trim
5. Side panel
6. Glove compartment

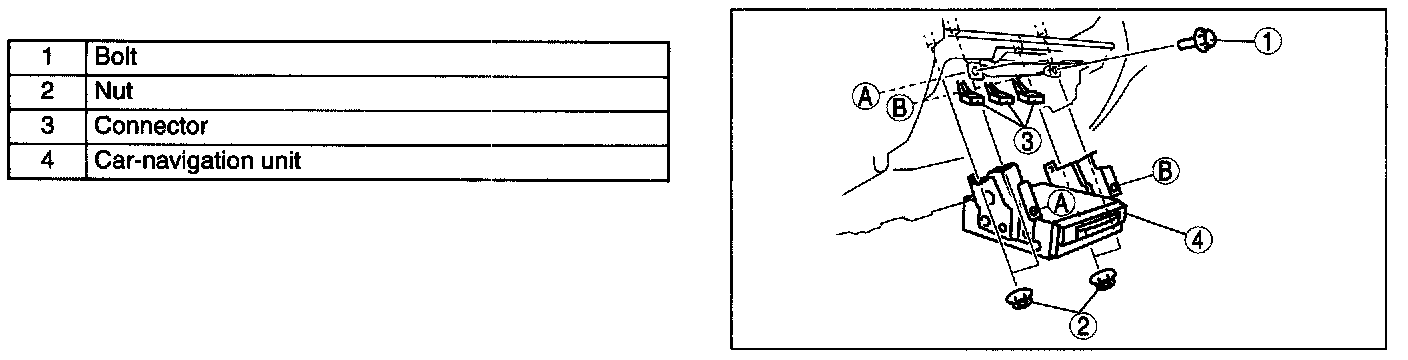

4. Remove in the order indicated in the above table.
5. Install in the reverse order of removal.
