Navigation Control Switch

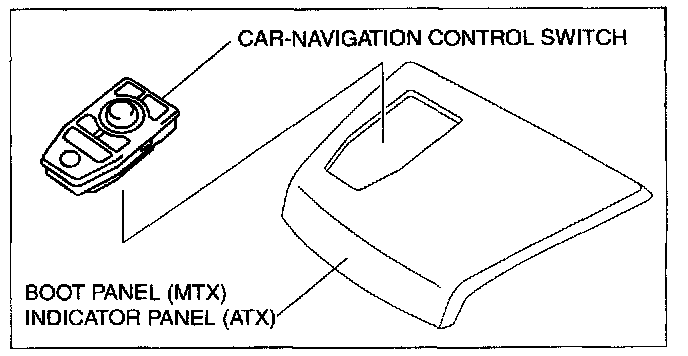

CAR-NAVIGATION CONTROL SWITCH REMOVAL/INSTALLATION




1. Remove the battery cover.
2. Disconnect the negative battery cable.
3. Remove the shift lever knob. (MTX)
4. Remove the selector lever knob. (ATX)
5. Remove the boot panel. (MTX)
6. Remove the indicator panel. (ATX)
7. Remove the car-navigation control switch.
8. Install in the reverse order of removal.

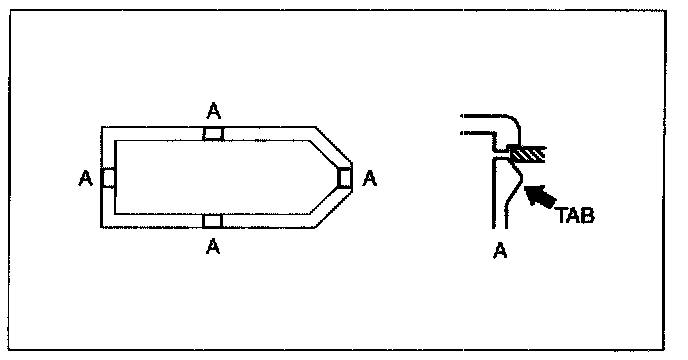

Car-Navigation Control Switch Removal Note




1. Pry the car-navigation control switch from the console using a flathead screwdriver wrapped with protective tape.
