Keyless Entry Receiver: Testing and Inspection

KEYLESS RECEIVER INSPECTION

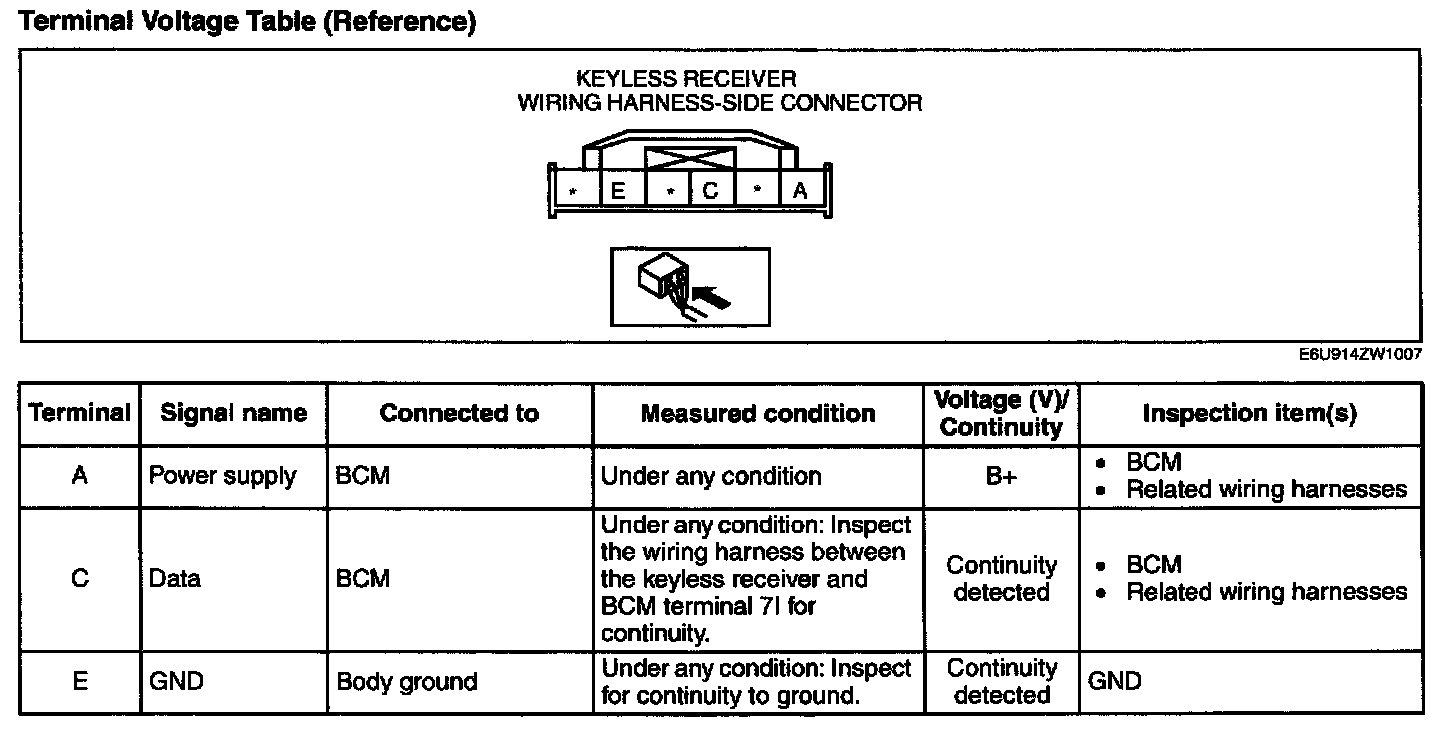

Terminal Voltage Table (Reference):

1. Measure the voltage or inspect for continuity according to the Terminal Voltage Table (Reference).
- If the voltage is not as specified in the Terminal Voltage Table (Reference), inspect the parts under "Inspection item(s)" and related wiring harnesses.
