Power Locks: Service and Repair

SLIDING DOOR LATCH REMOVAL/INSTALLATION

1. Remove the battery cover.
2. Disconnect the negative battery cable.
3. Remove the following parts.
1. Sliding door trim
2. Cover

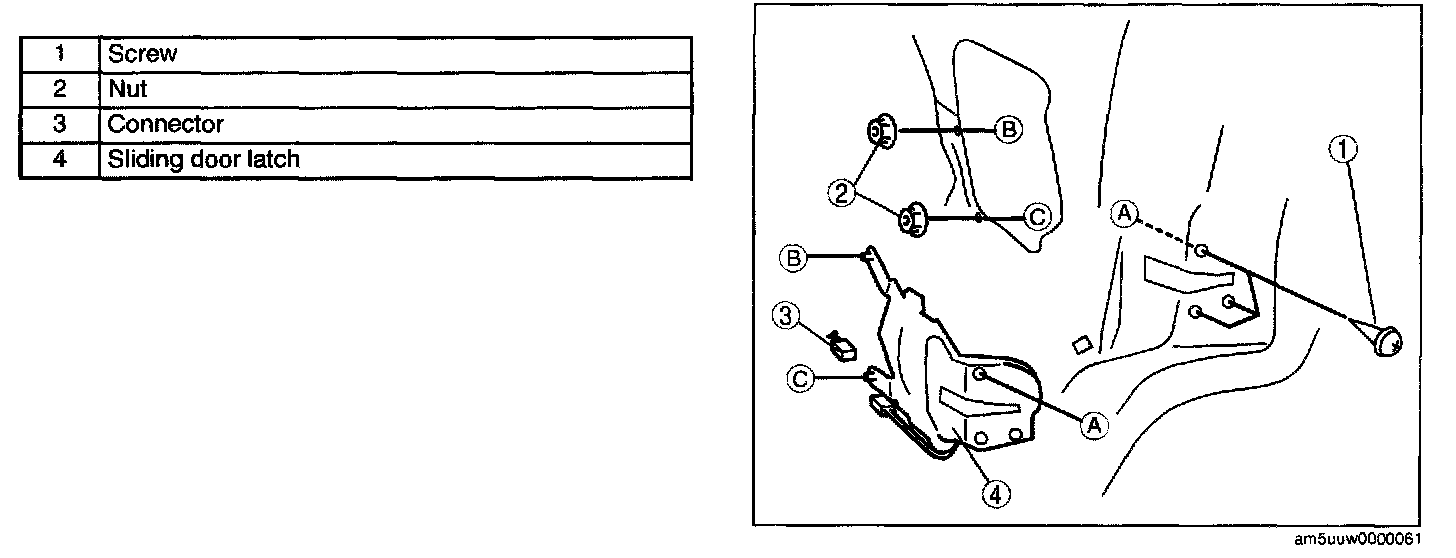

4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
