Third-Row Seat Disassembly/Assembly

THIRD-ROW SEAT DISASSEMBLY/ASSEMBLY

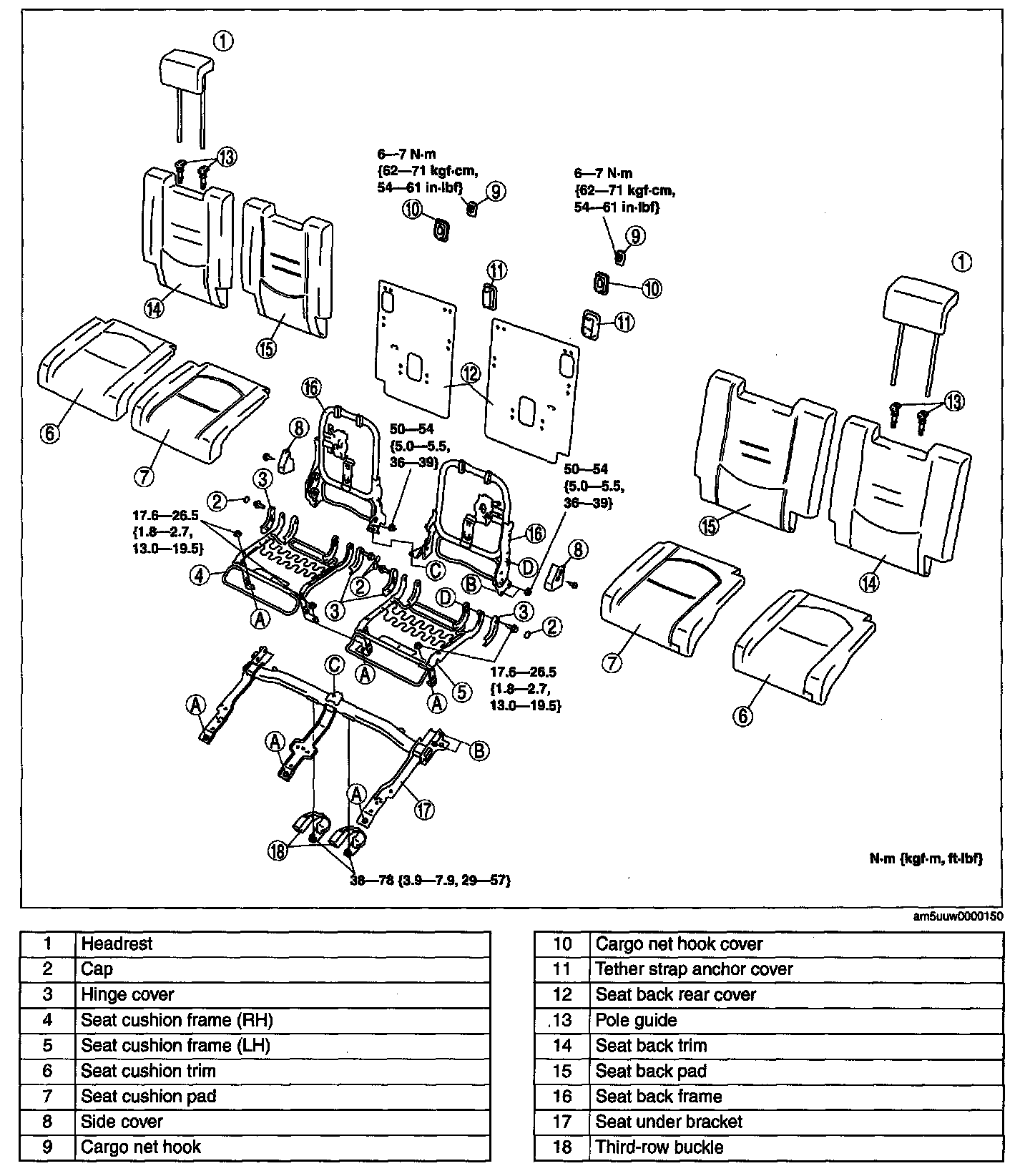

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
