Brakes and Traction Control: Locations

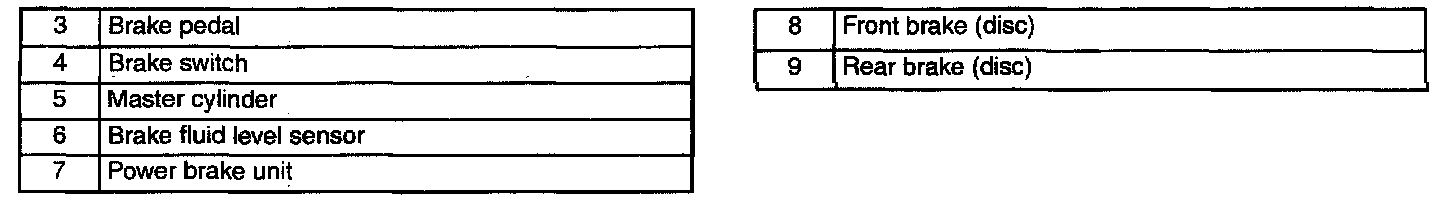

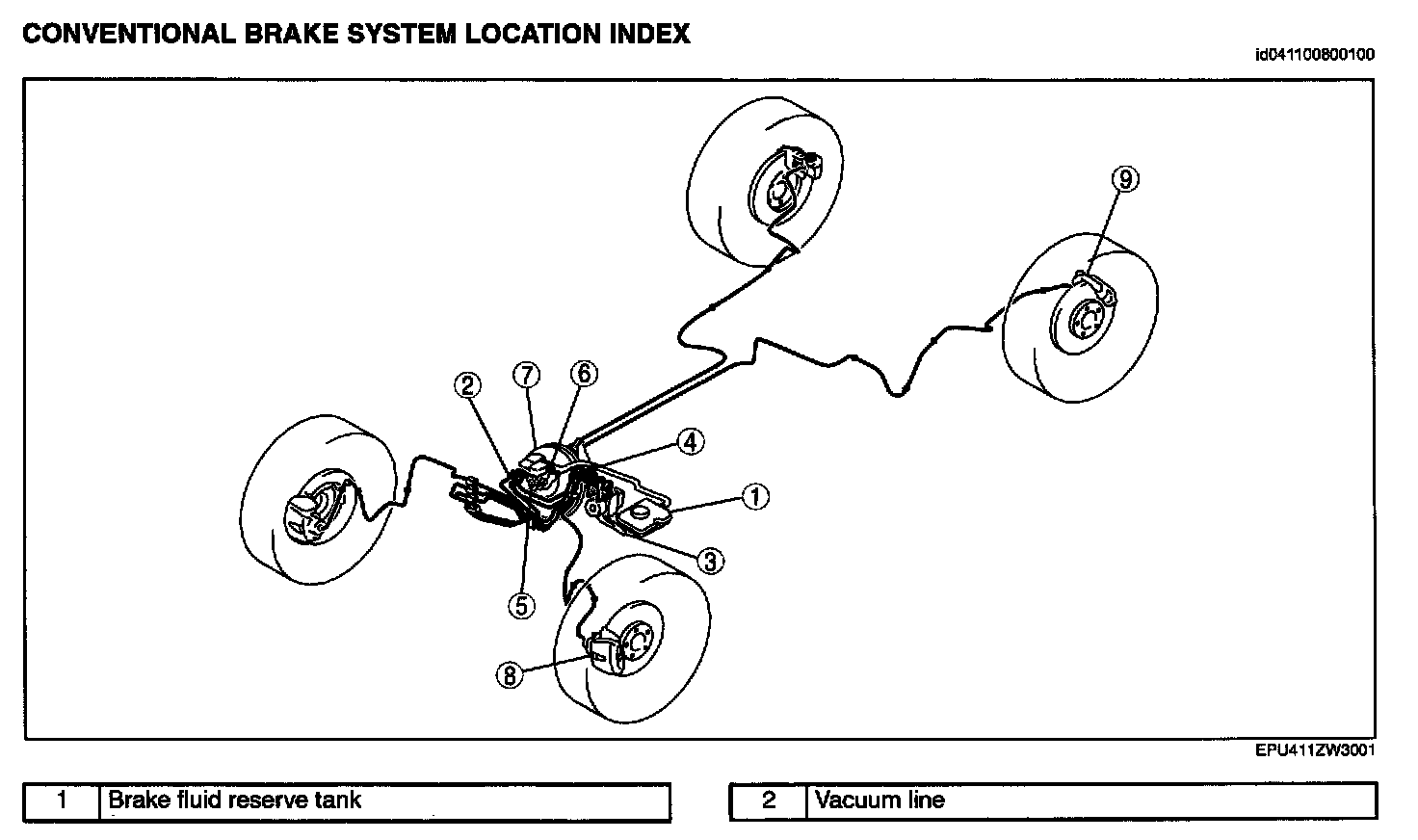

Conventional Brake System Location Index (part 1):



Conventional Brake System Location Index (part 2):
