Crash-Zone Sensor

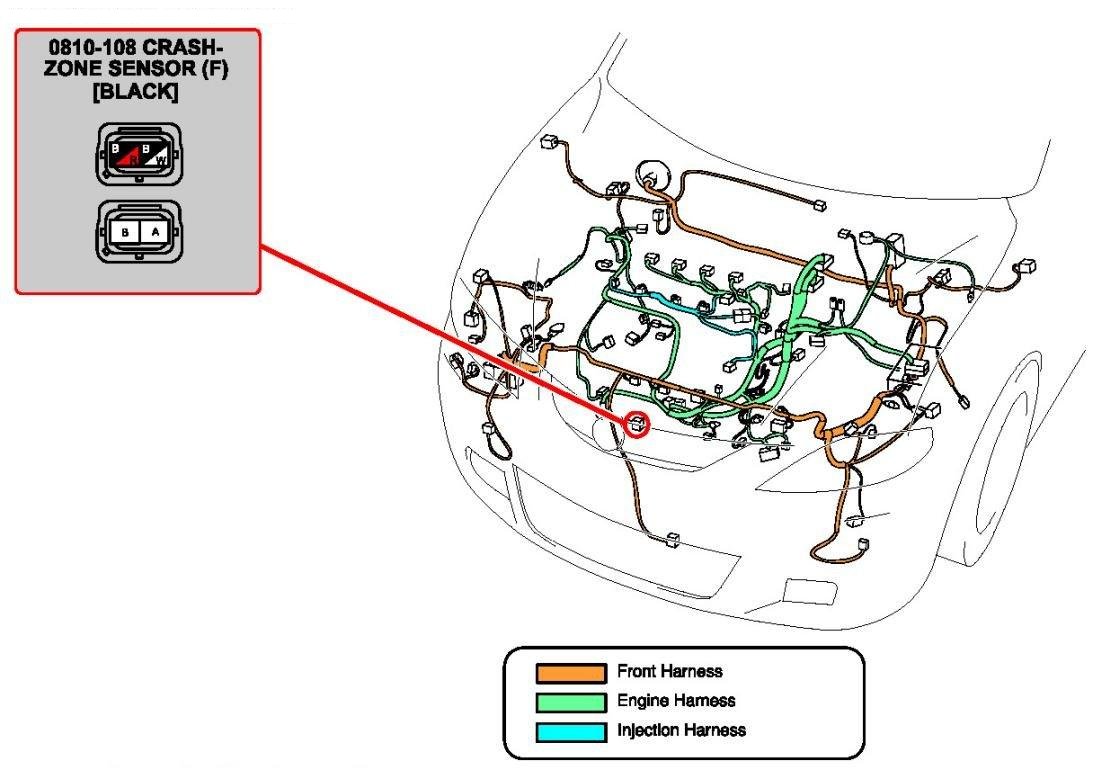

Crash-Zone Sensor:

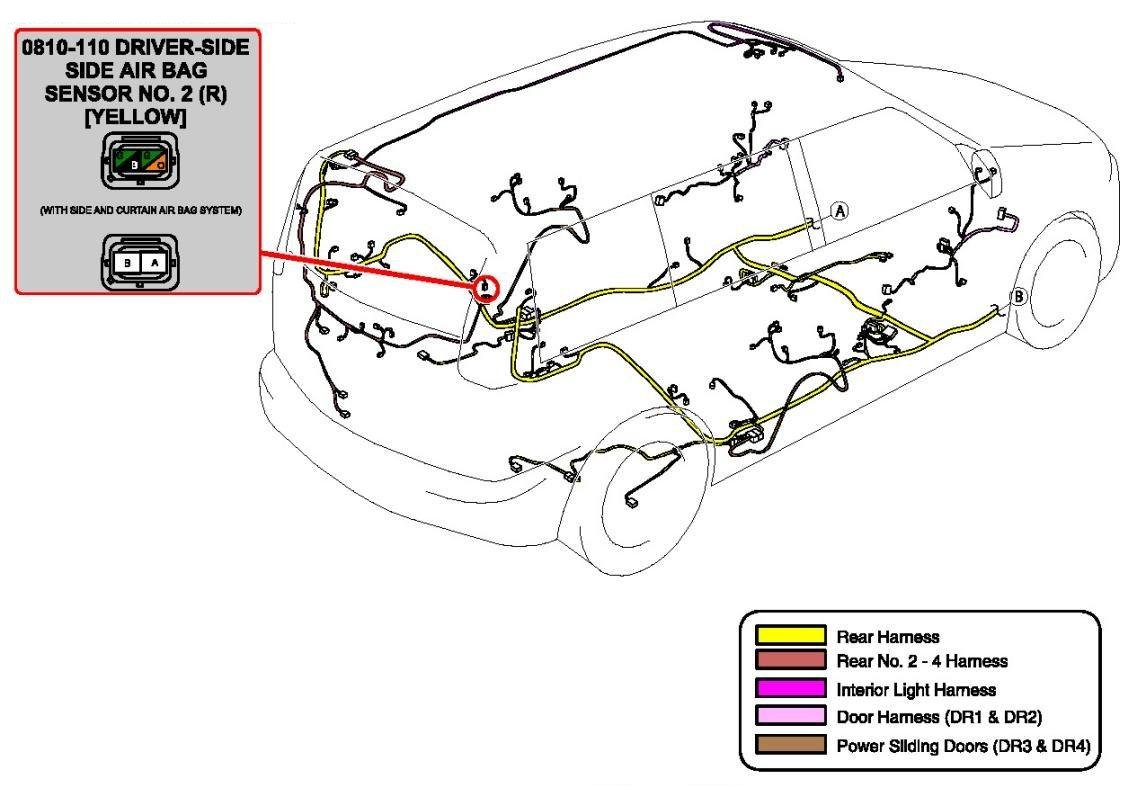

Driver-Side Side Air Bag Sensor No. 2:

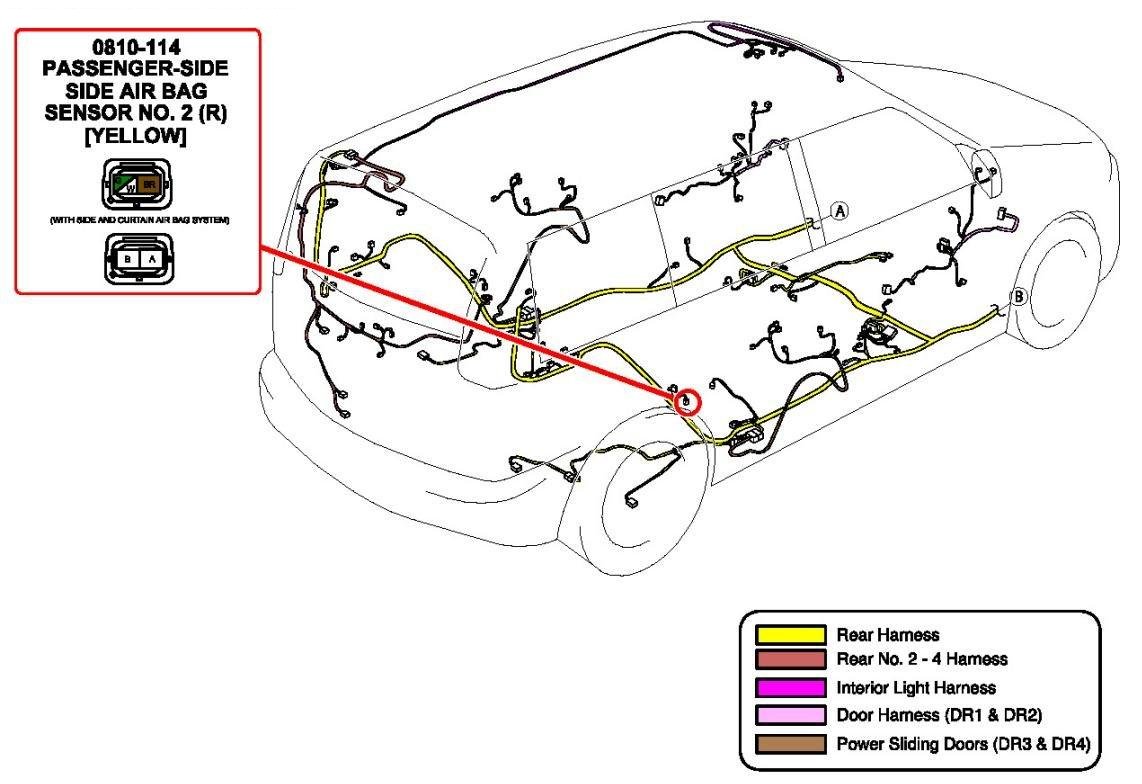

Passenger-Side Side Air Bag Sensor No. 2:

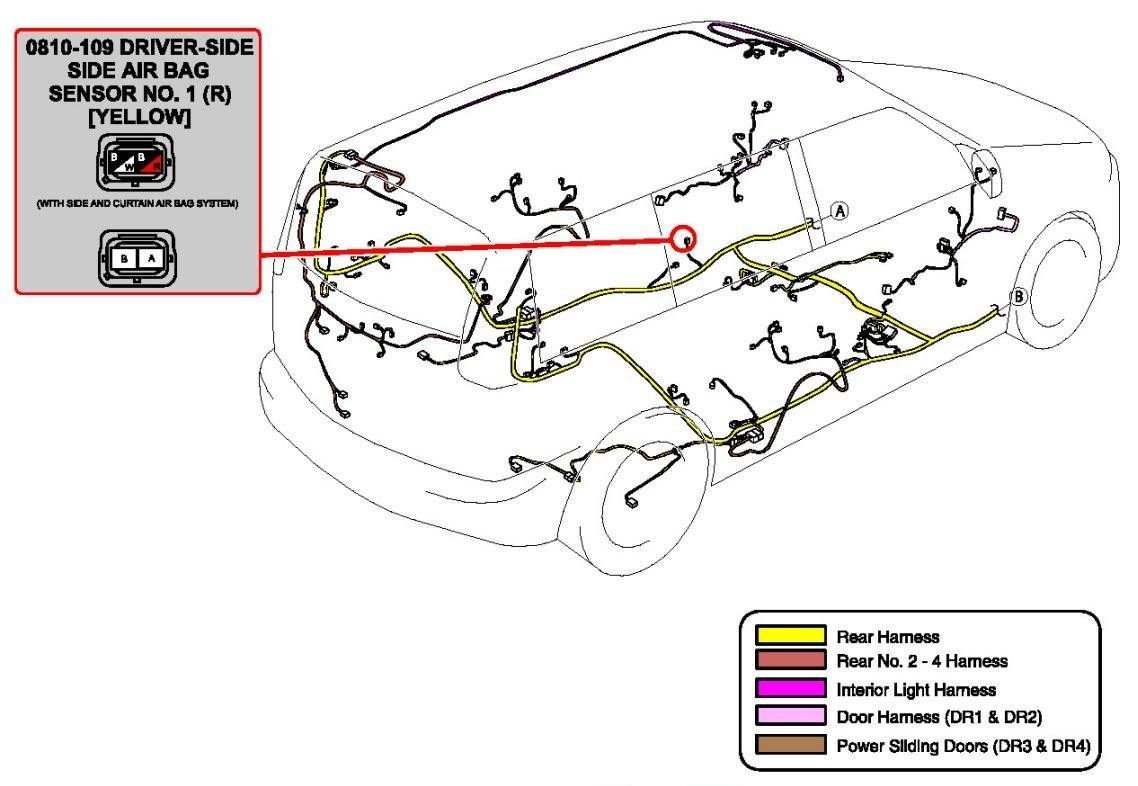

Driver-Side Side Air Bag Sensor No. 1:
