Power Window Subswitch LR

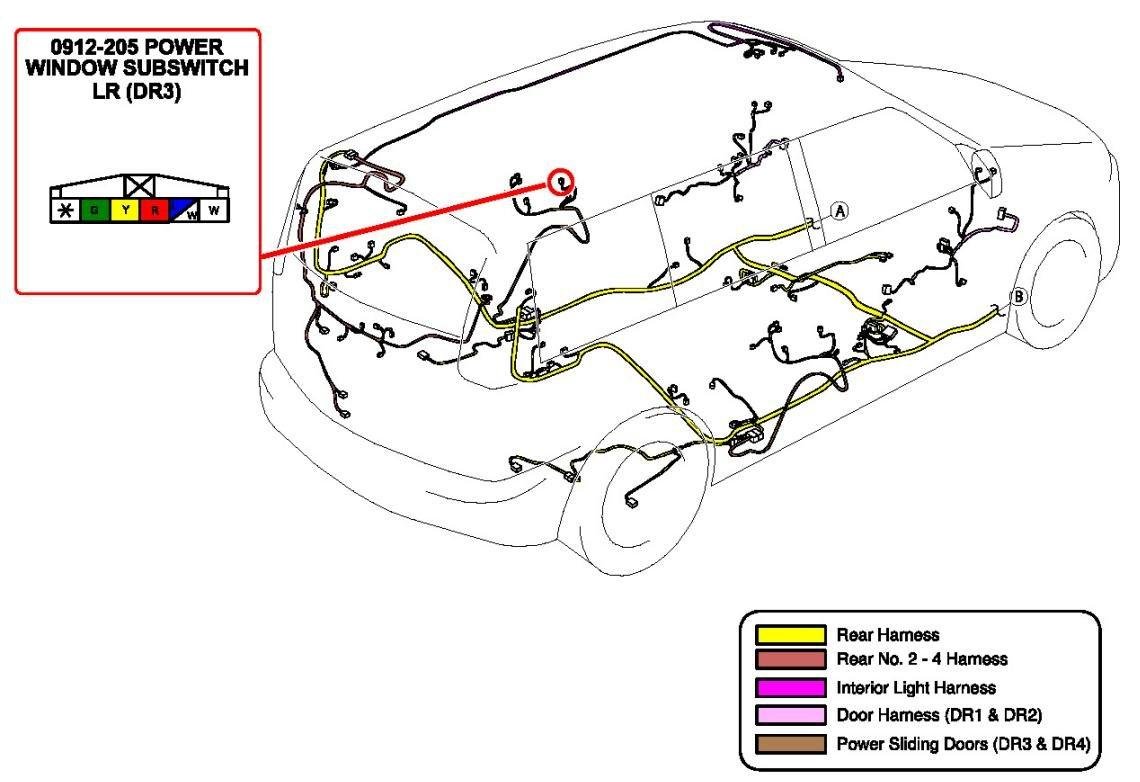

Power Window Subswitch LR:

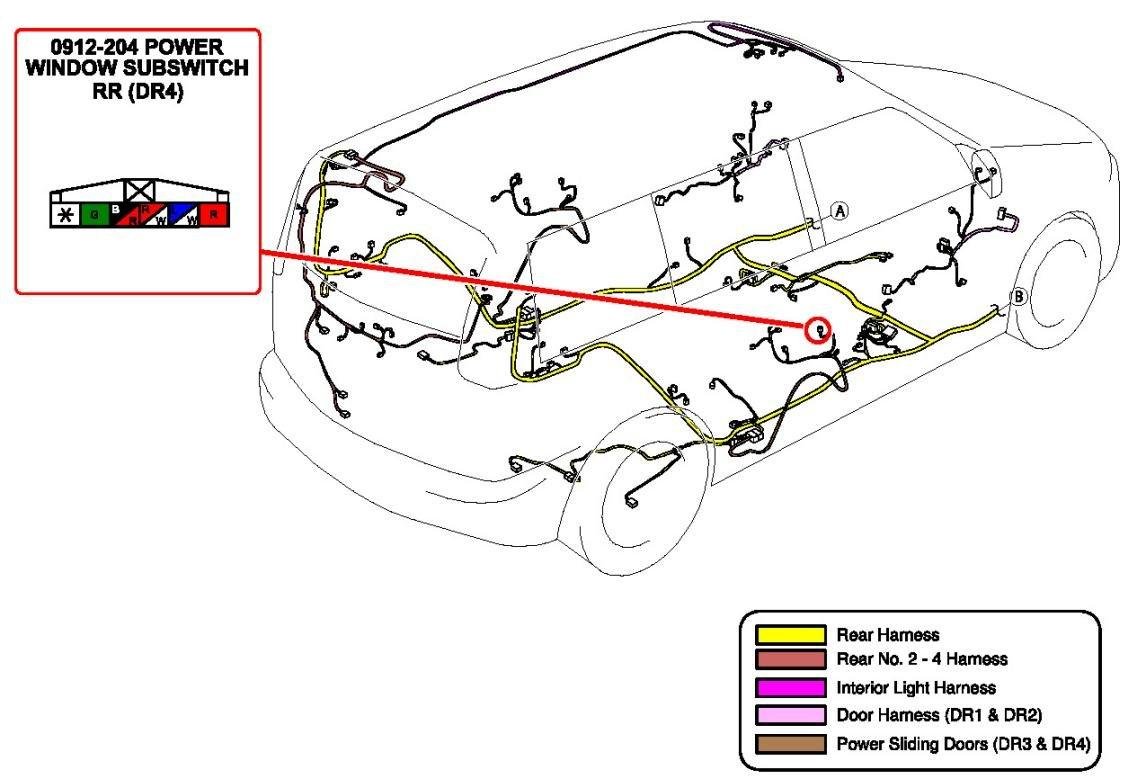

Power Window Subswitch RR:

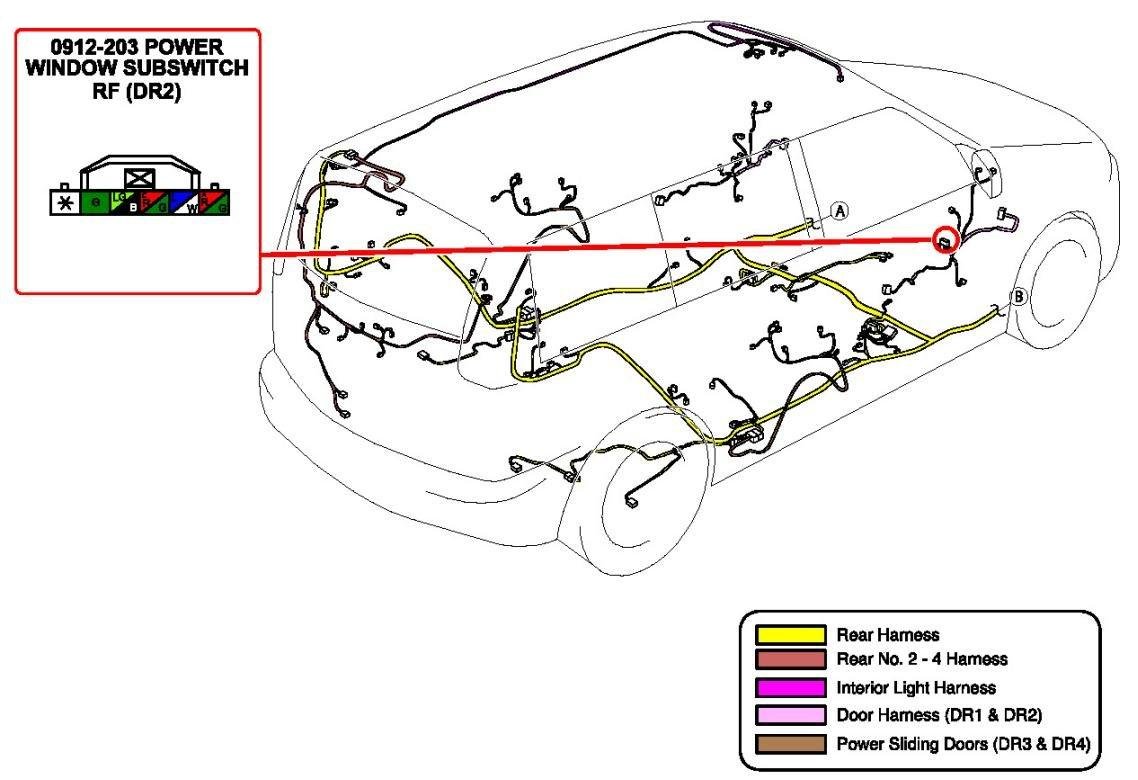

Power Window Subswitch RF:

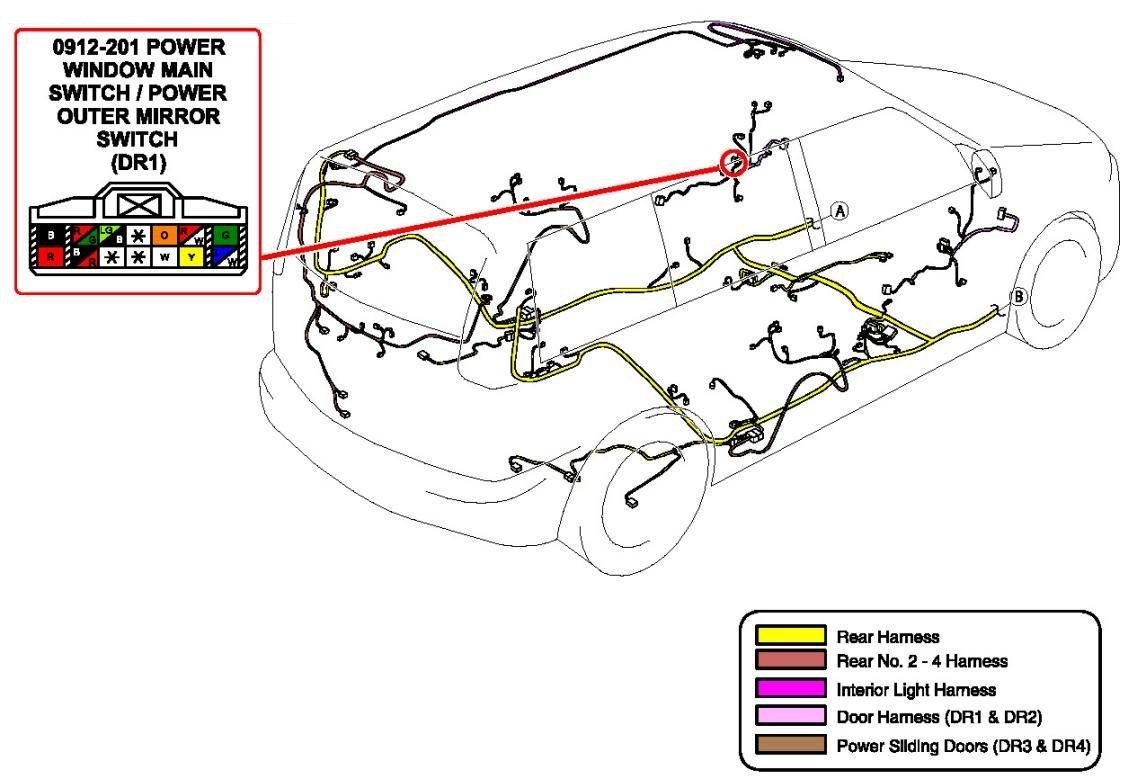

Power Window Main Switch/Power Outer Mirror Switch:
