Navigation System

Diagram 0920-3a:

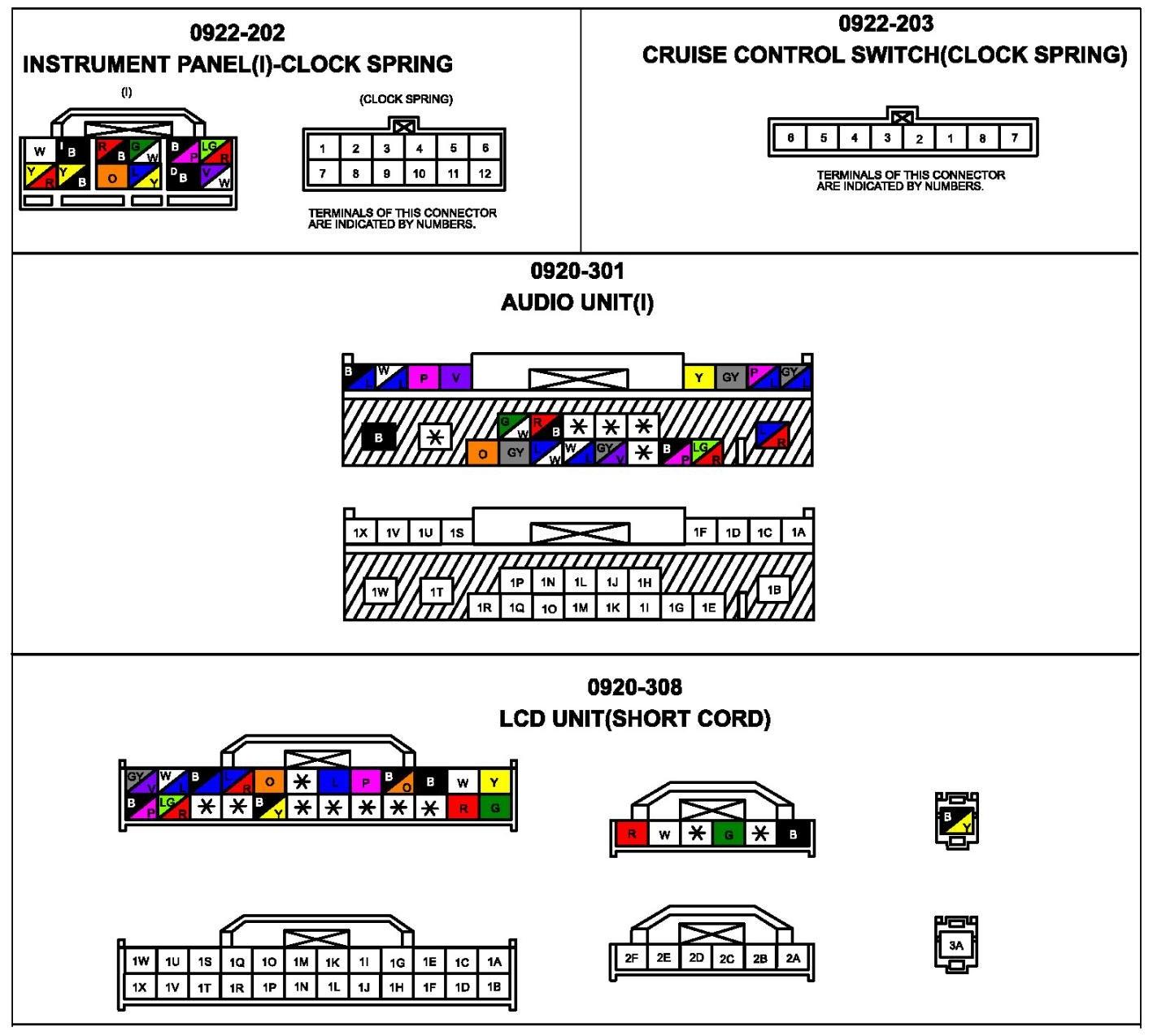

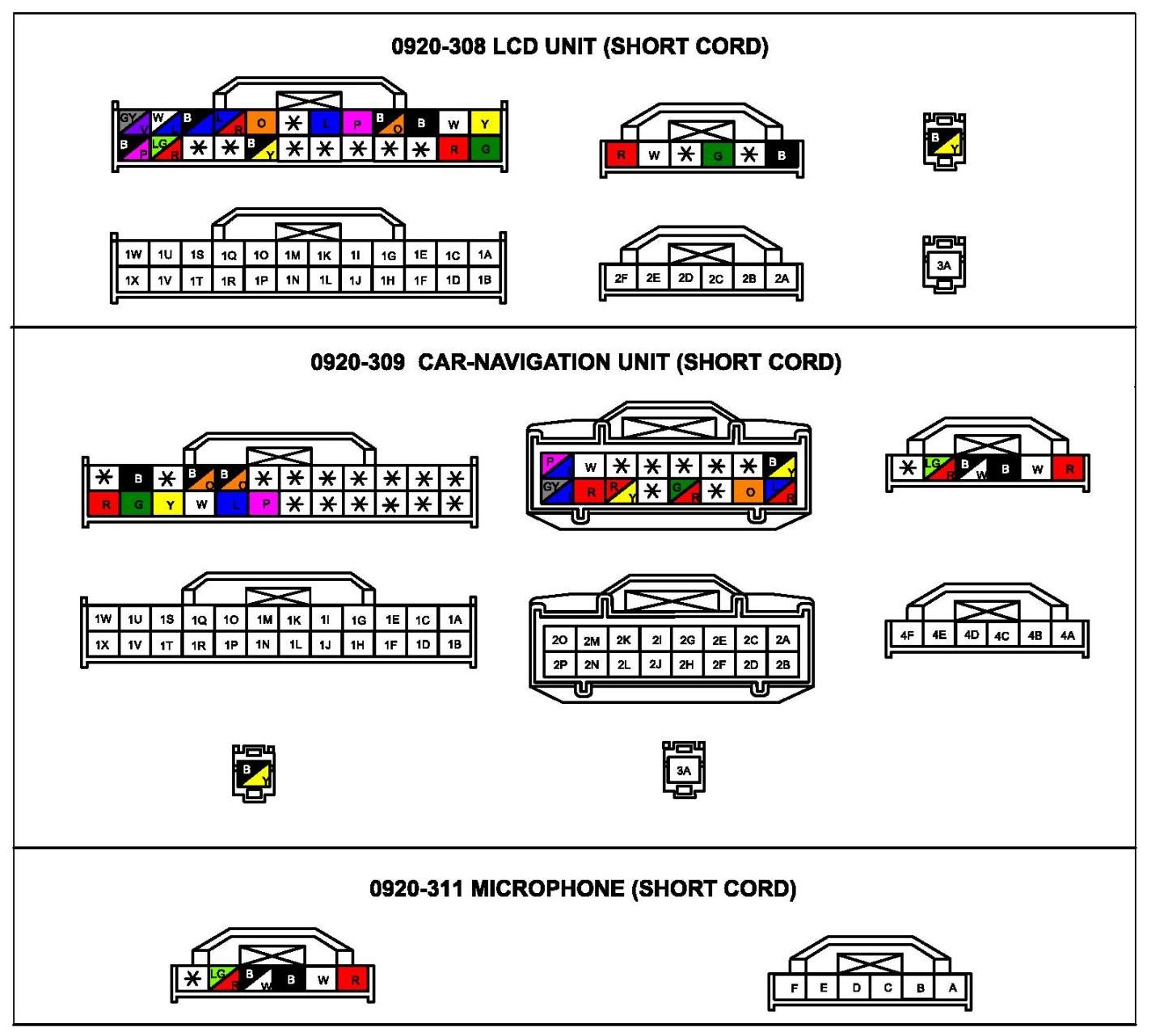

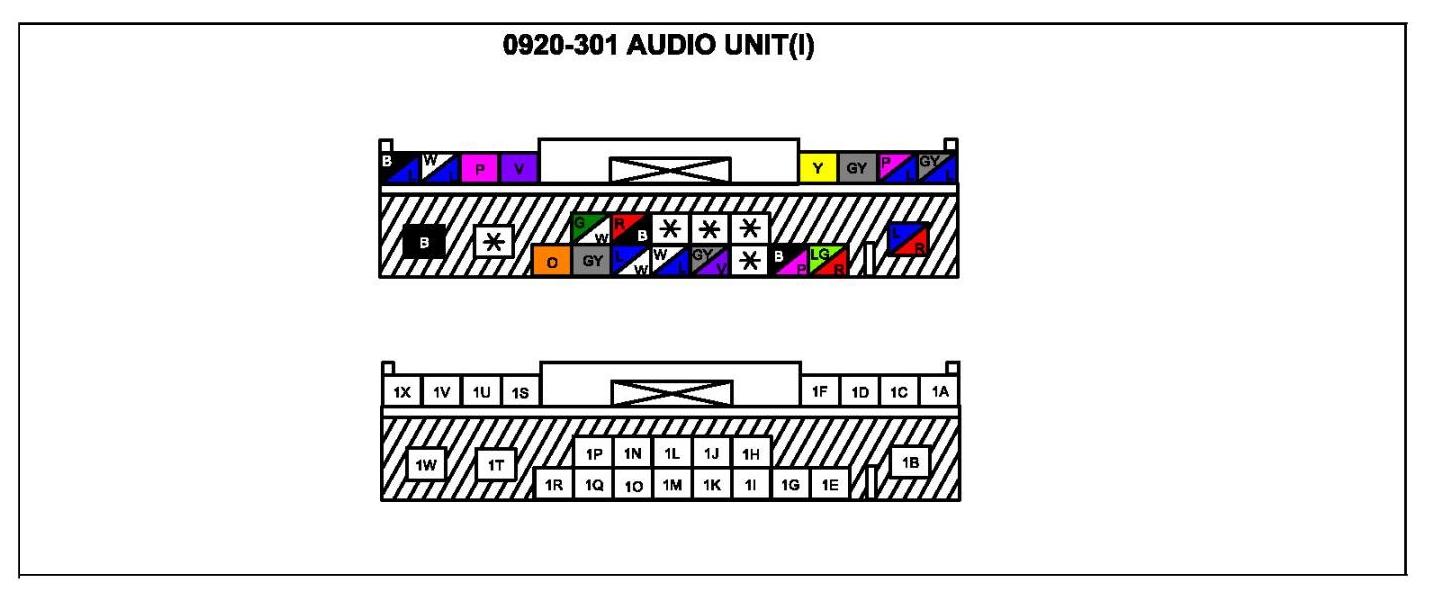

Connectors 0920-3a:

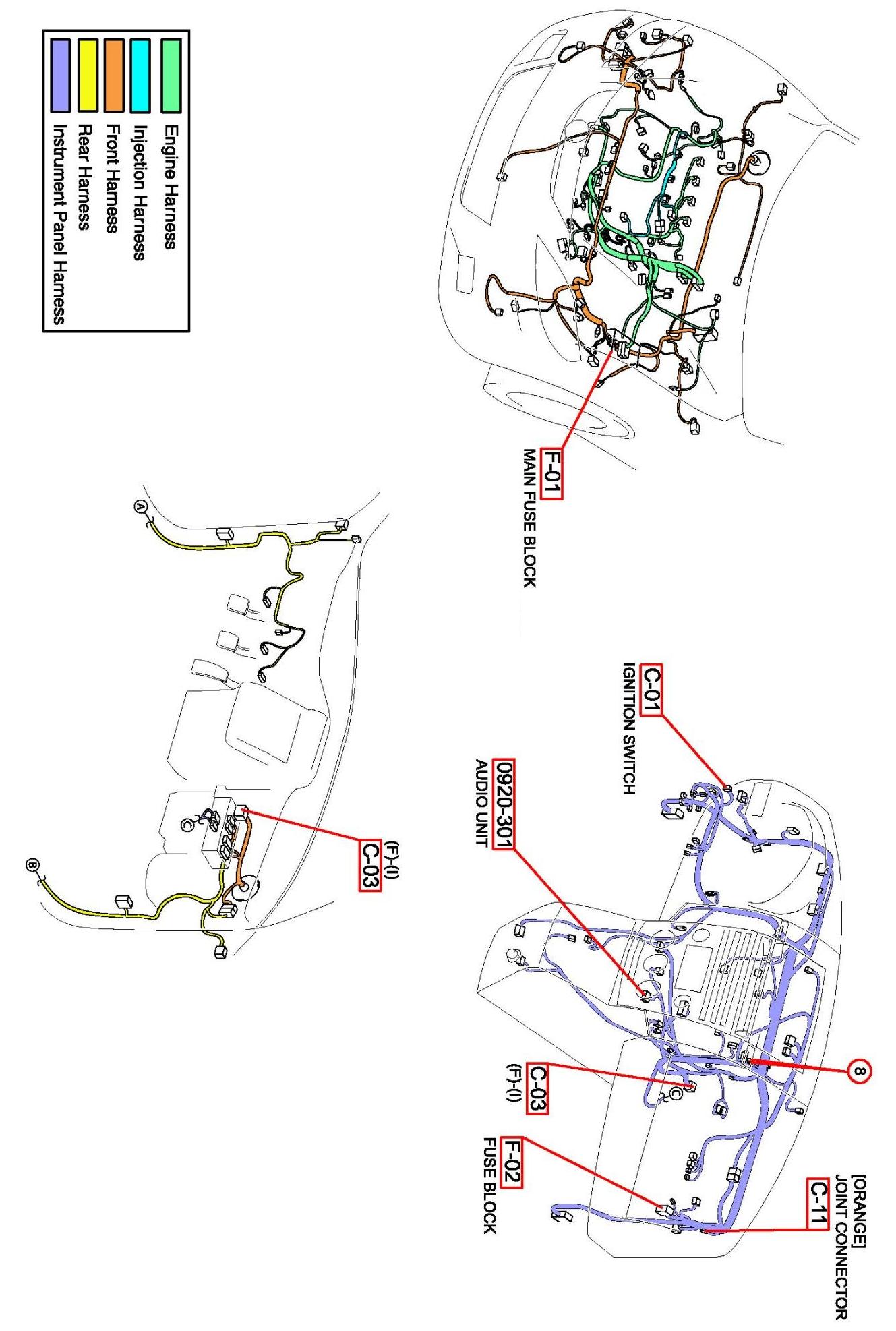

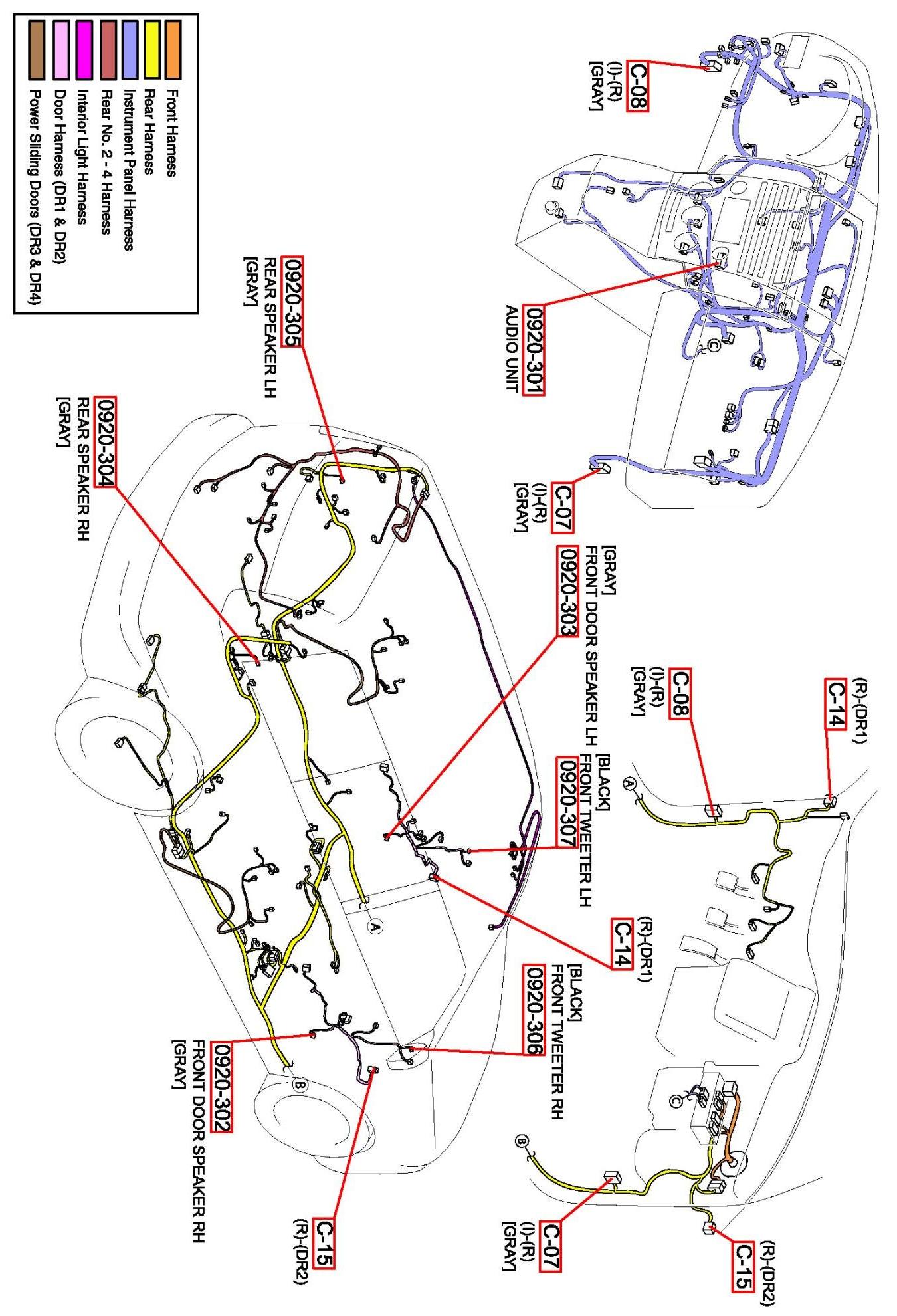

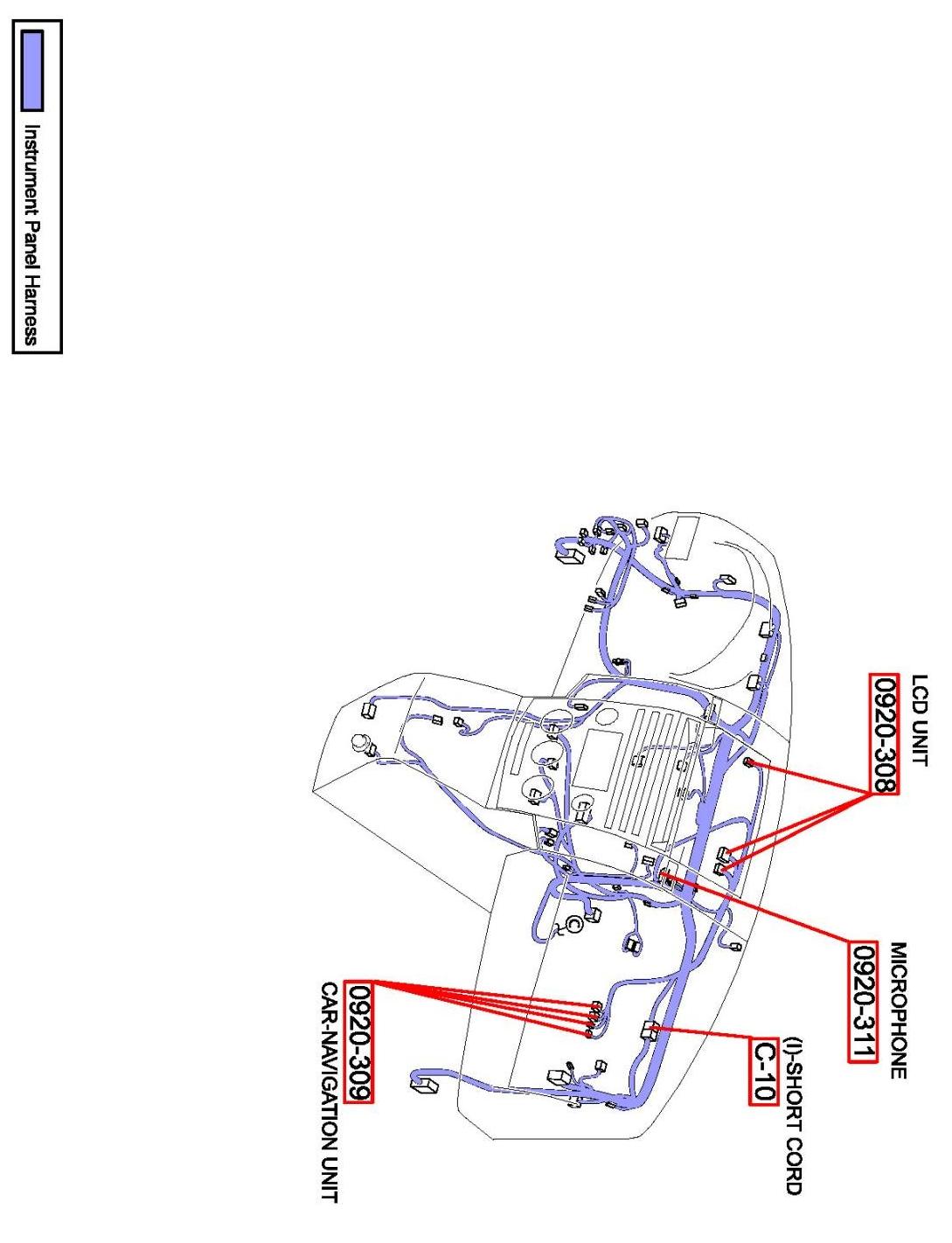

Routing View 0920-3a:

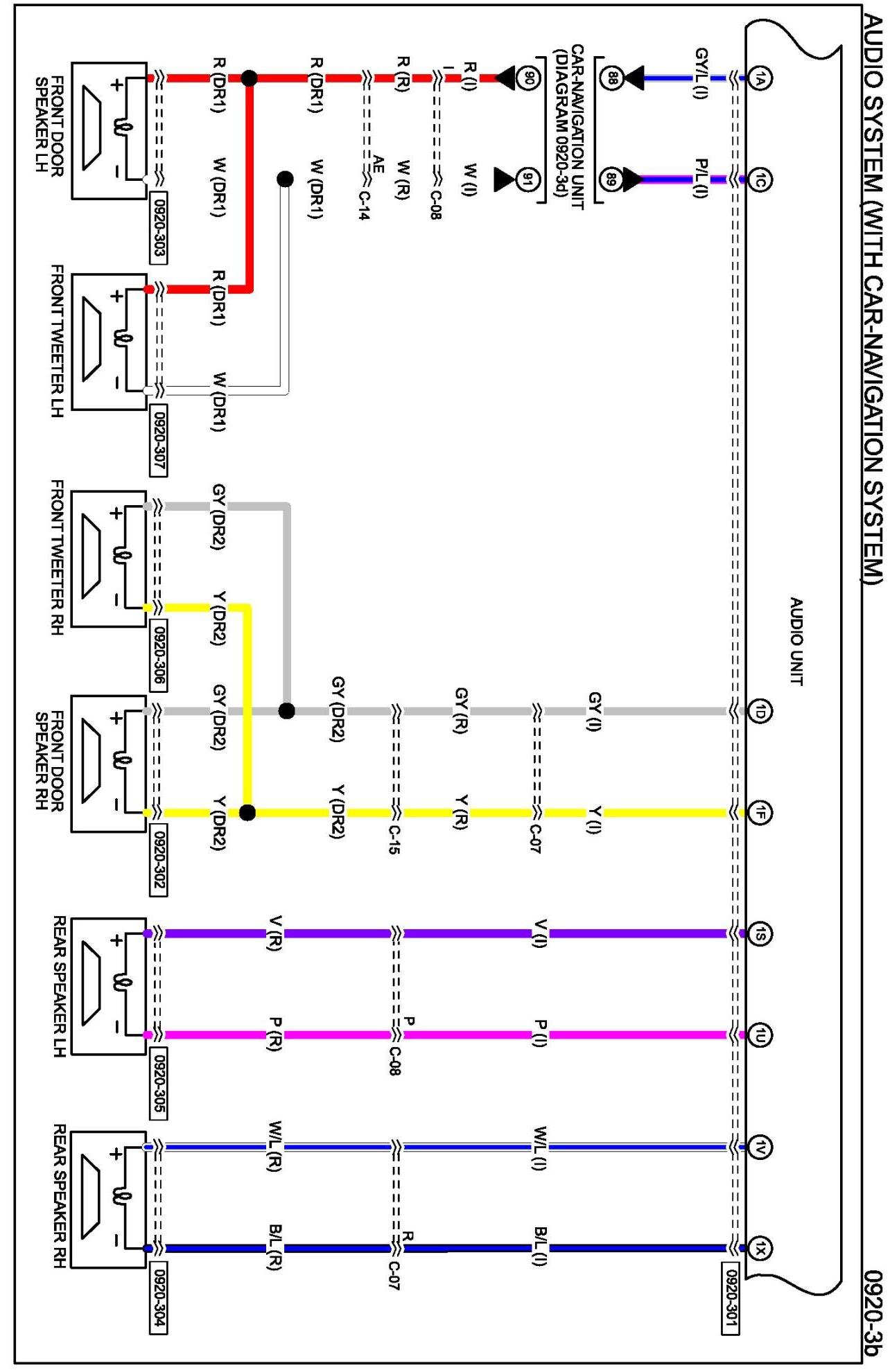

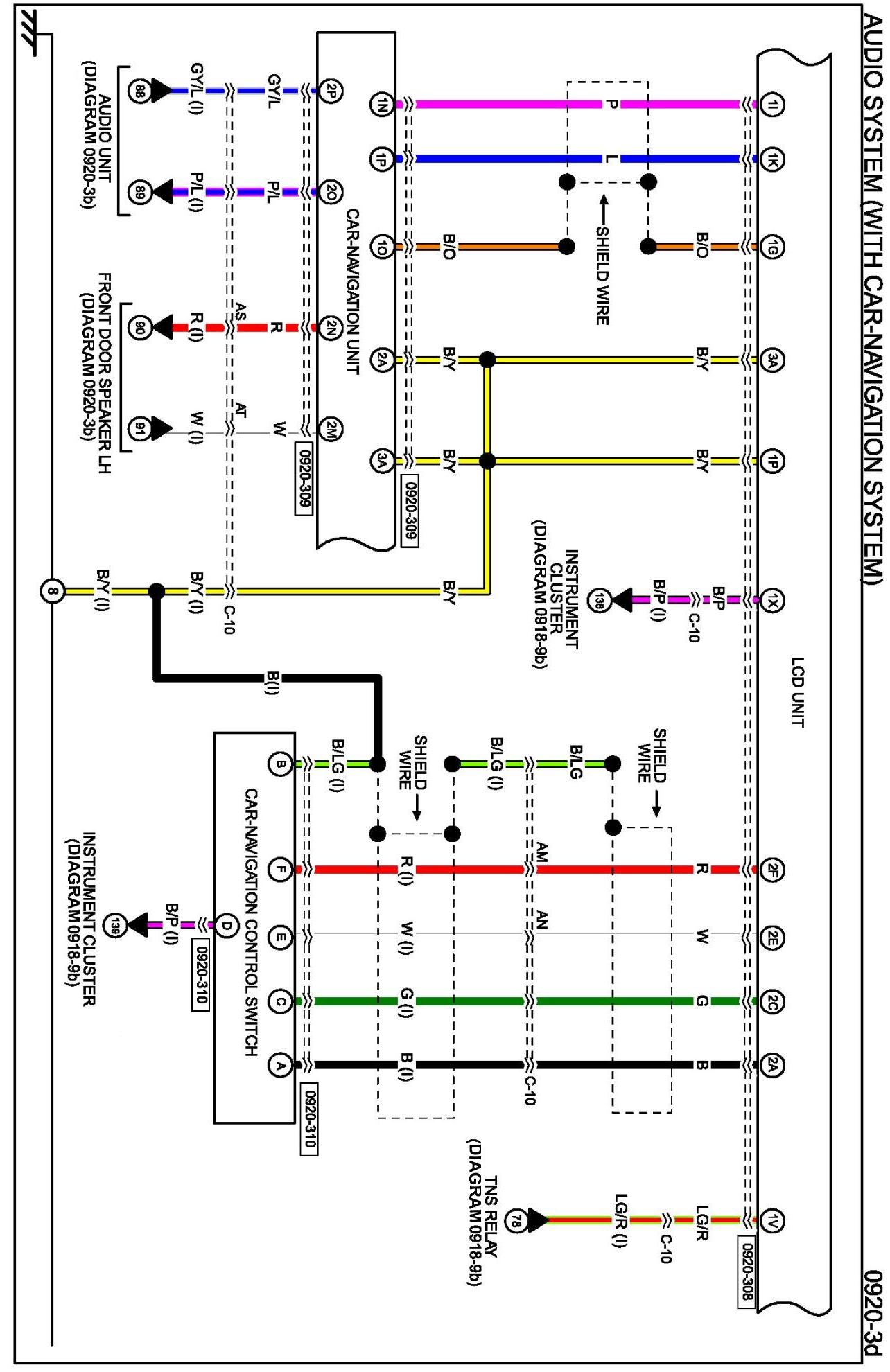

Diagram 0920-3b:

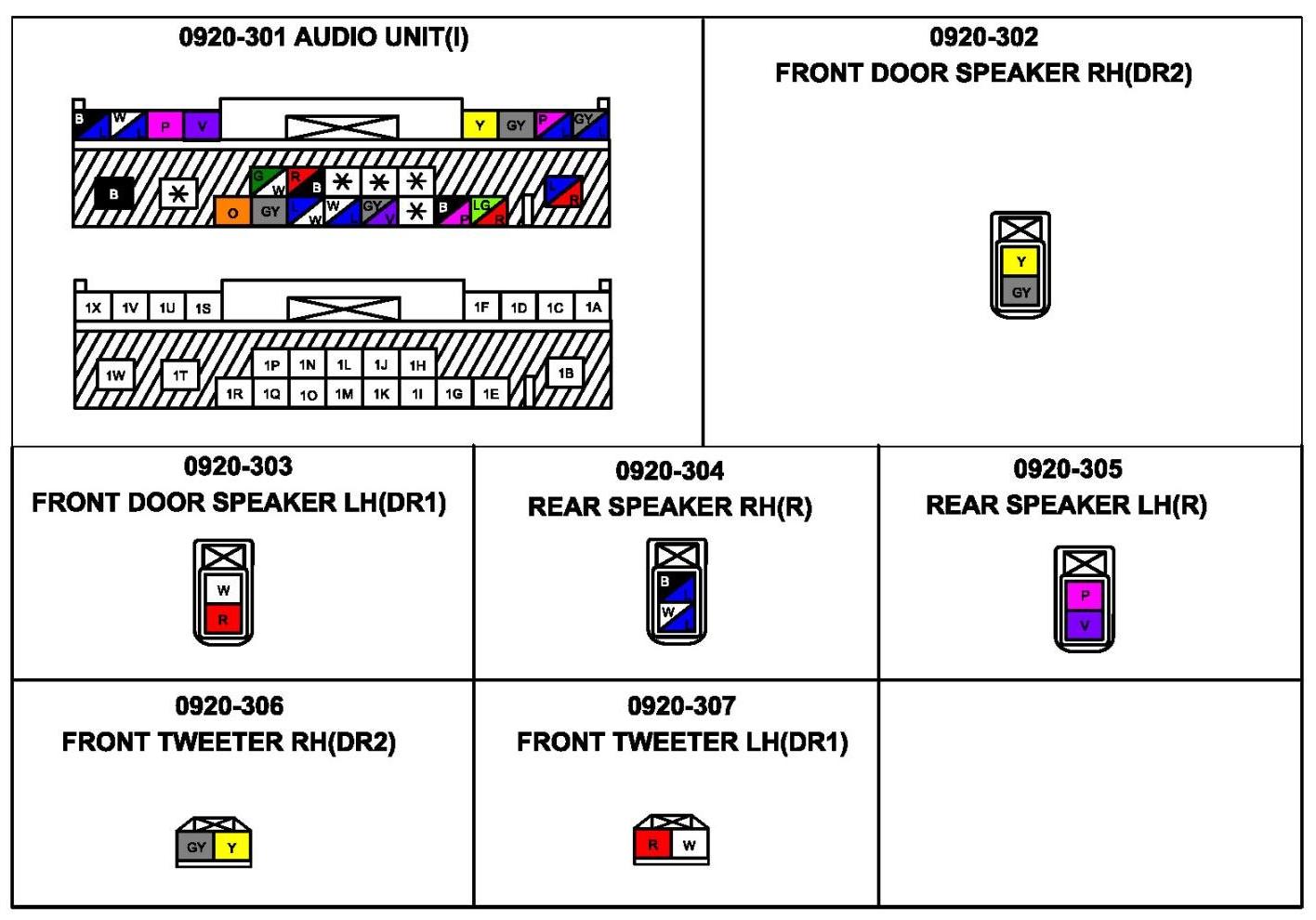

Connectors 0920-3b:

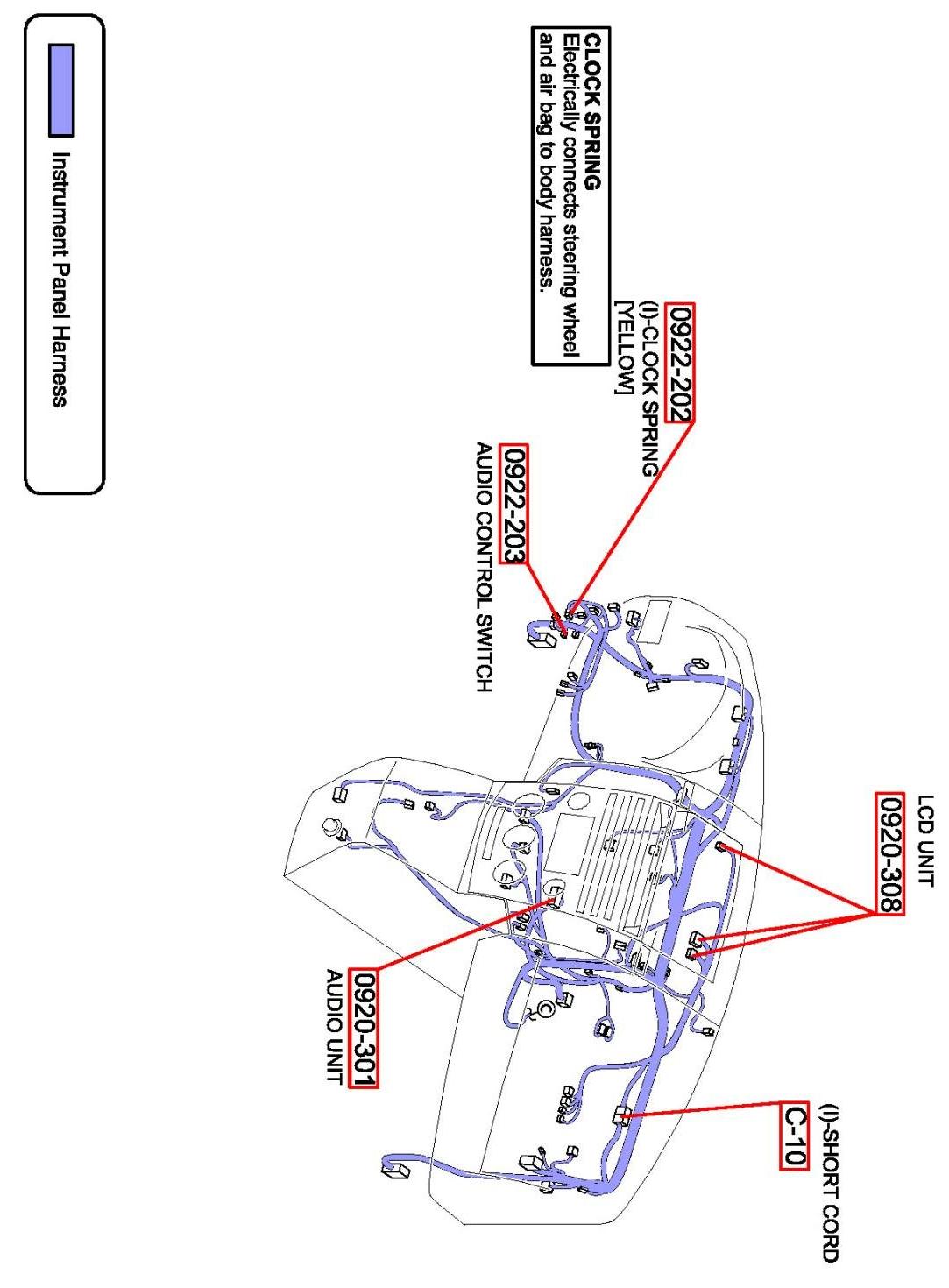

Routing View 0920-3b:

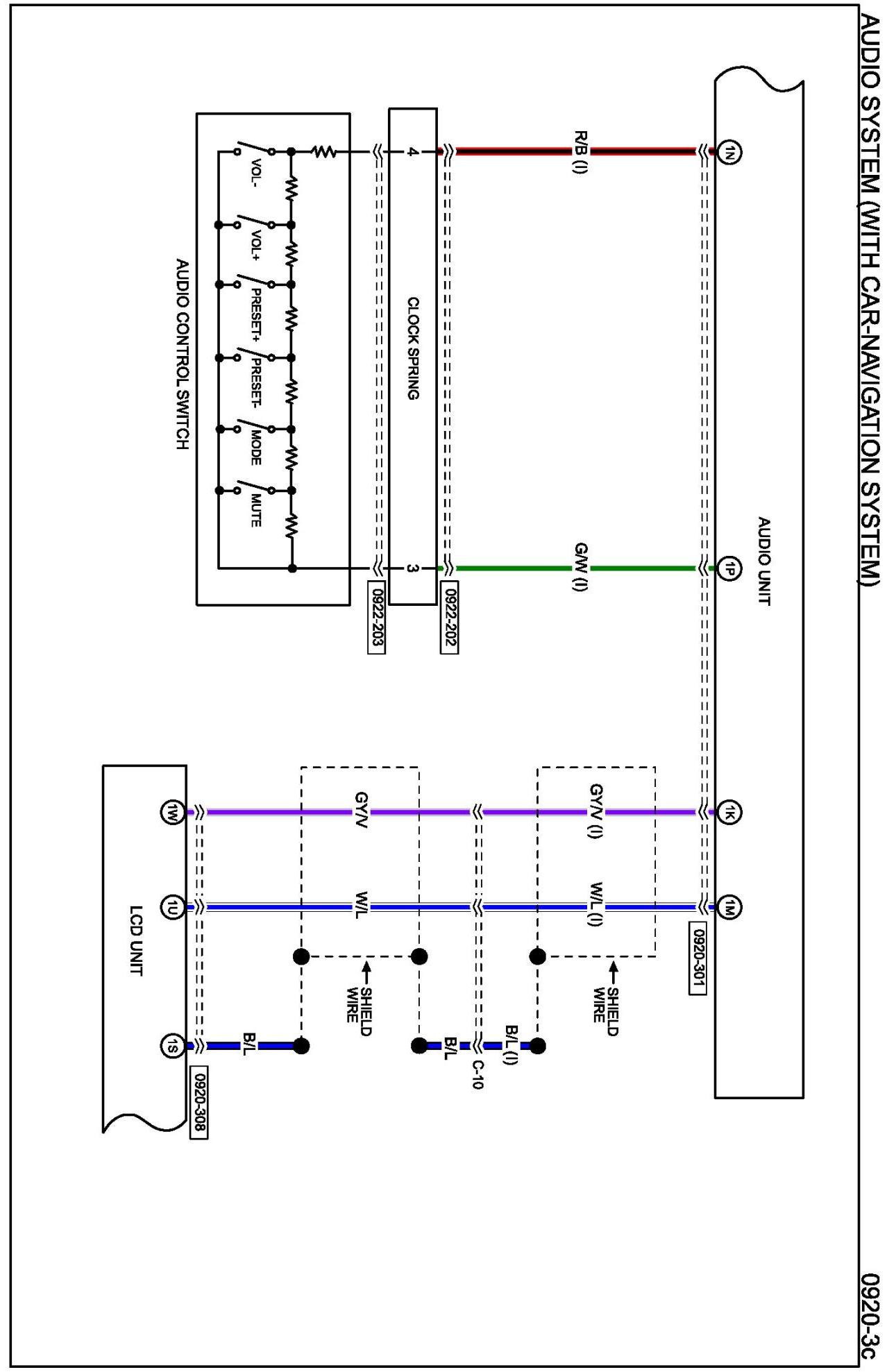

Diagram 0920-3c:

Connectors 0920-3c:

Routing View 0920-3c:

Diagram 0920-3d:

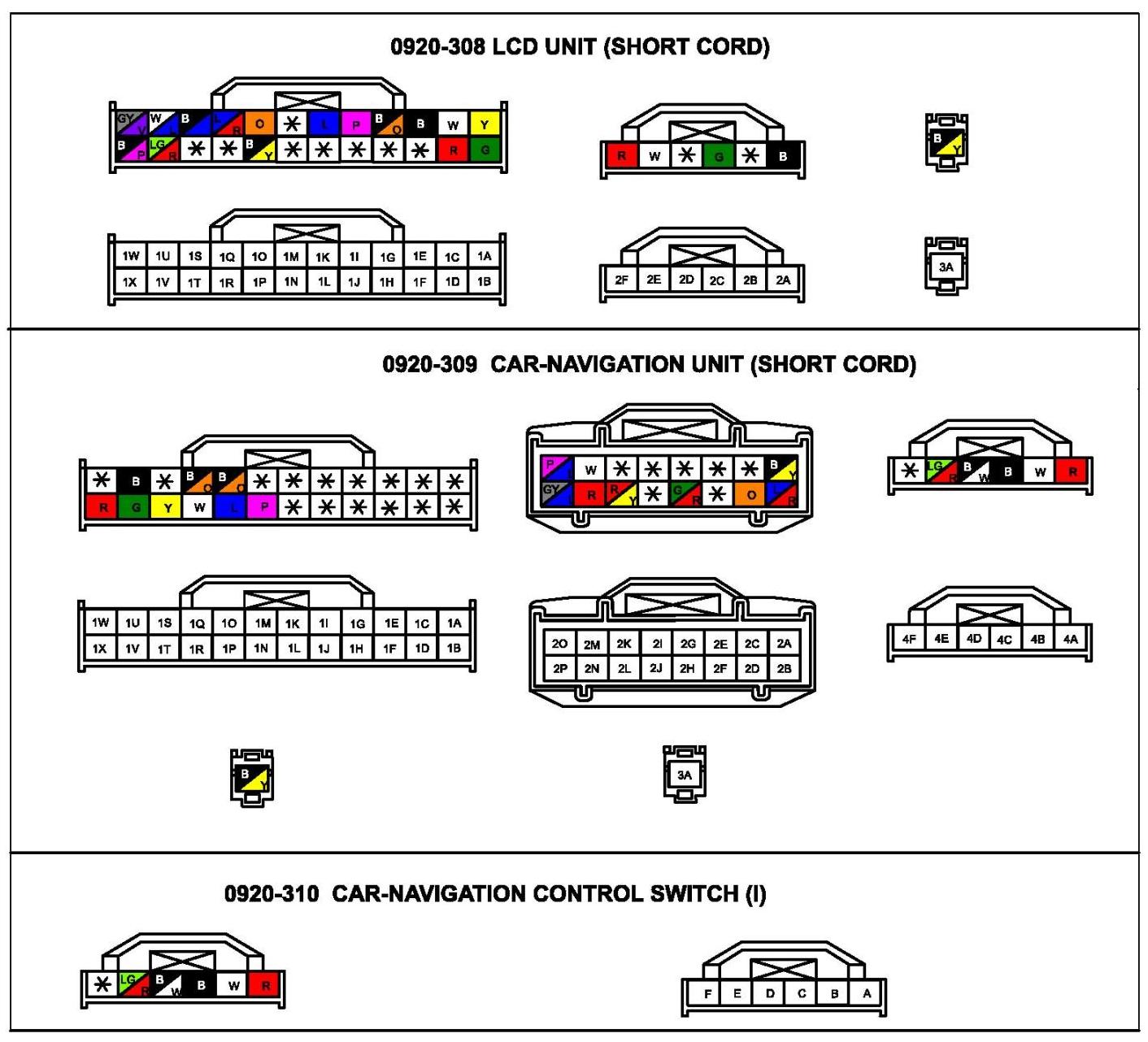

Connectors 0920-3d:

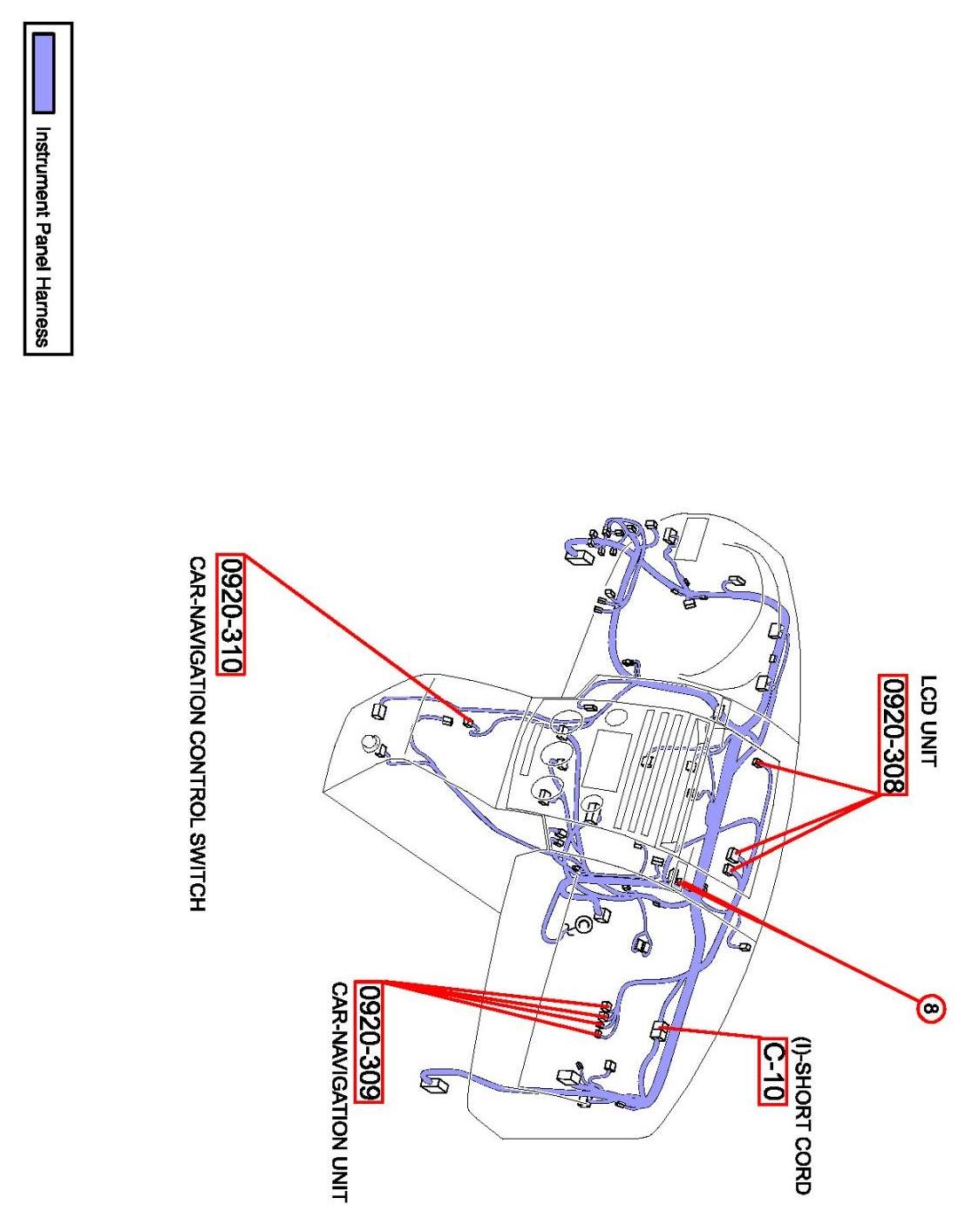

Routing View 0920-3d:

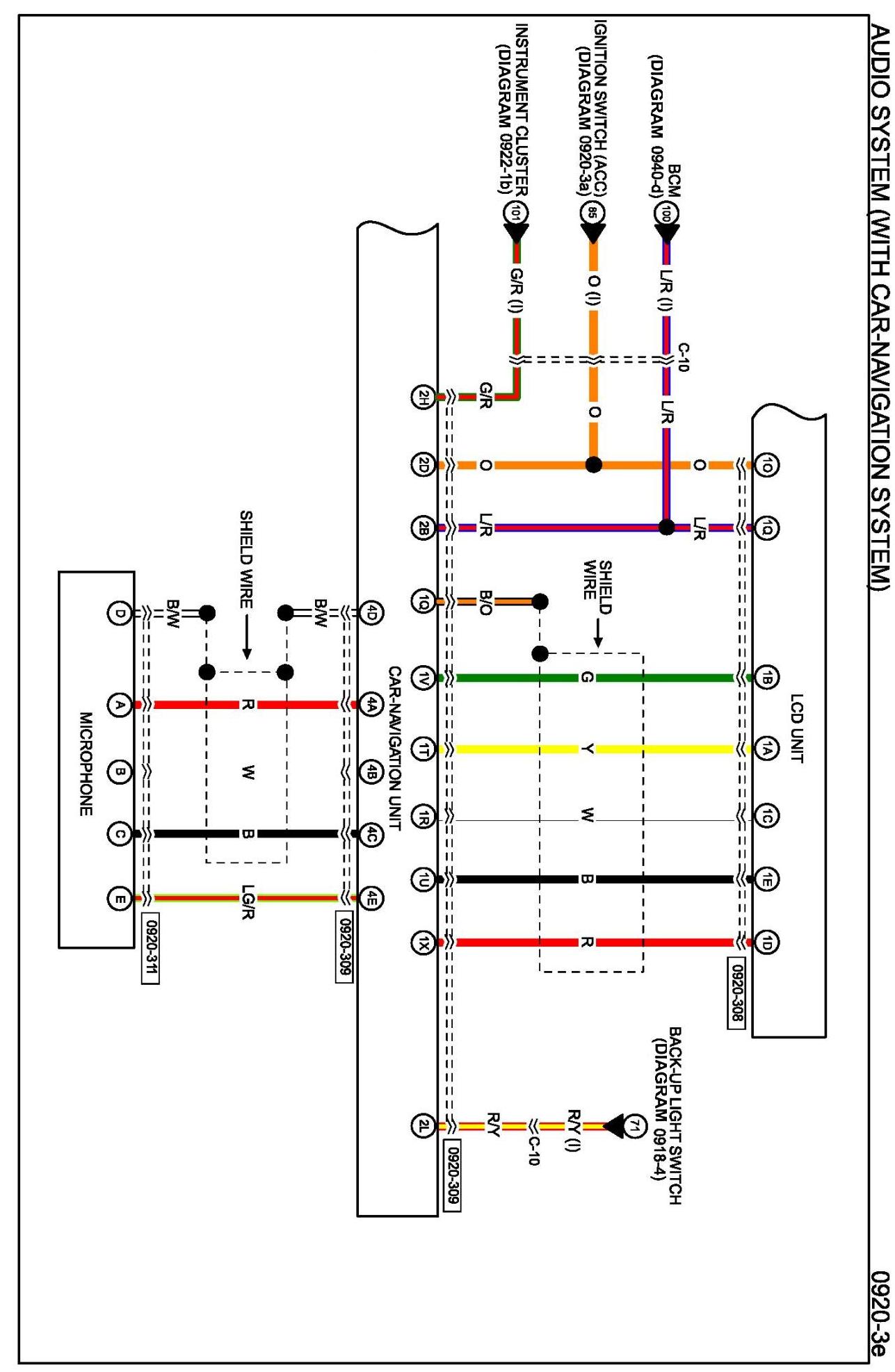

Diagram 0920-3e:

Connectors 0920-3e:

Routing View 0920-3e:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
