Main Relay (Computer/Fuel System): Testing and Inspection

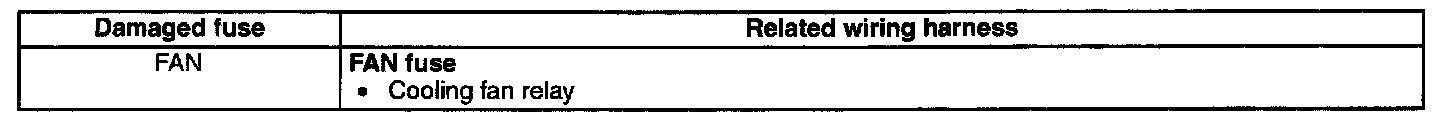

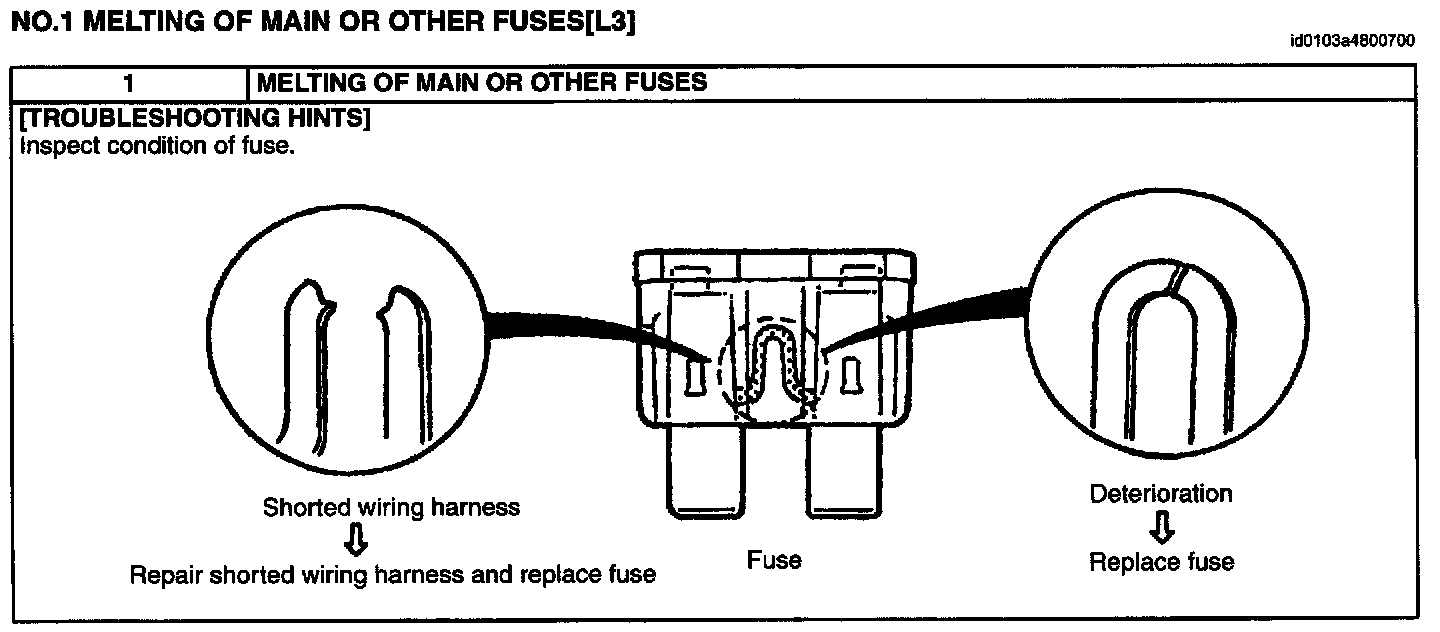

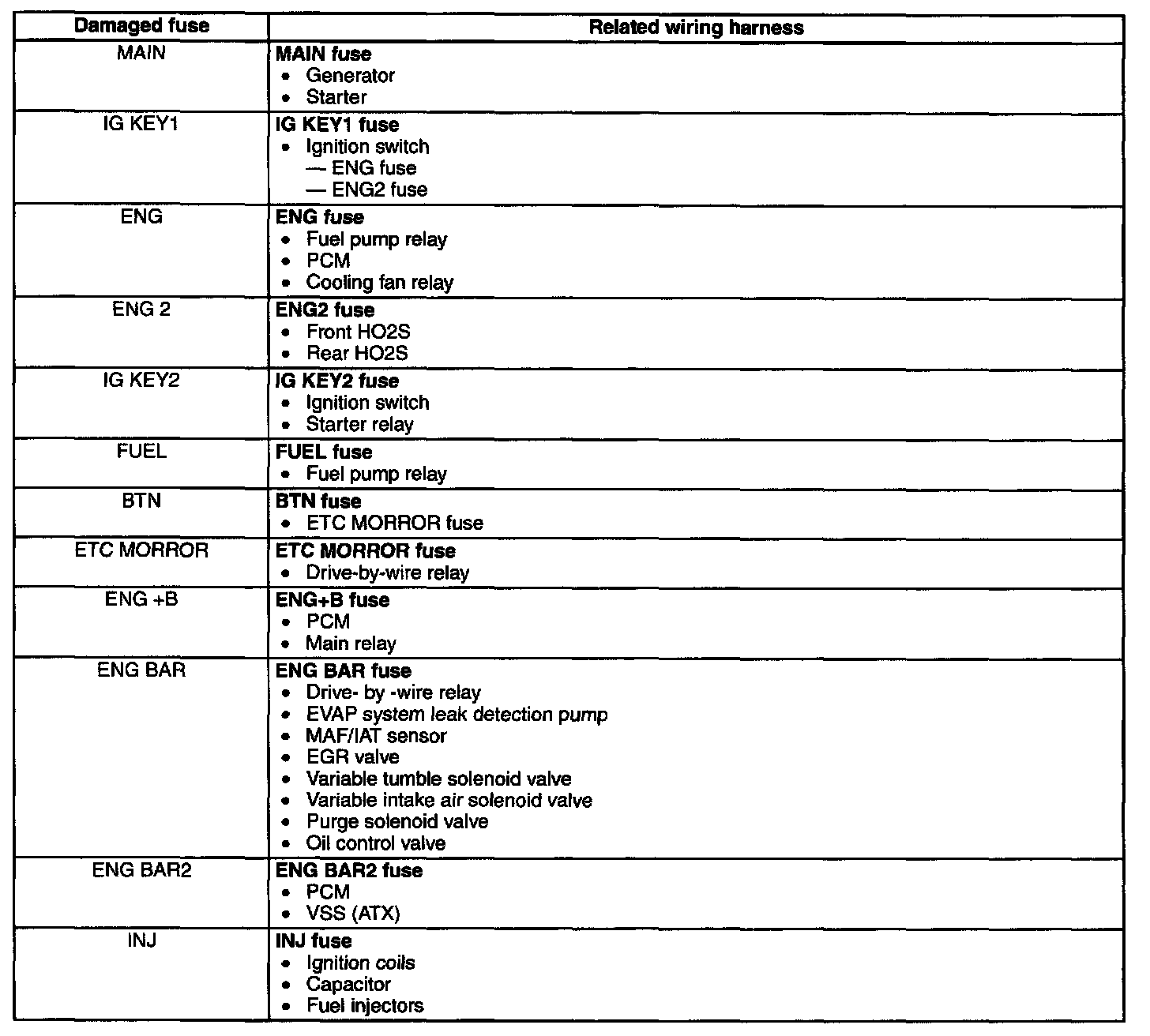

No.1 Melting Of Main Or Other Fuses (L3) Part 1:



No.1 Melting Of Main Or Other Fuses (L3) Part 2:



No.1 Melting Of Main Or Other Fuses (L3) Part 3:
