Component Locations

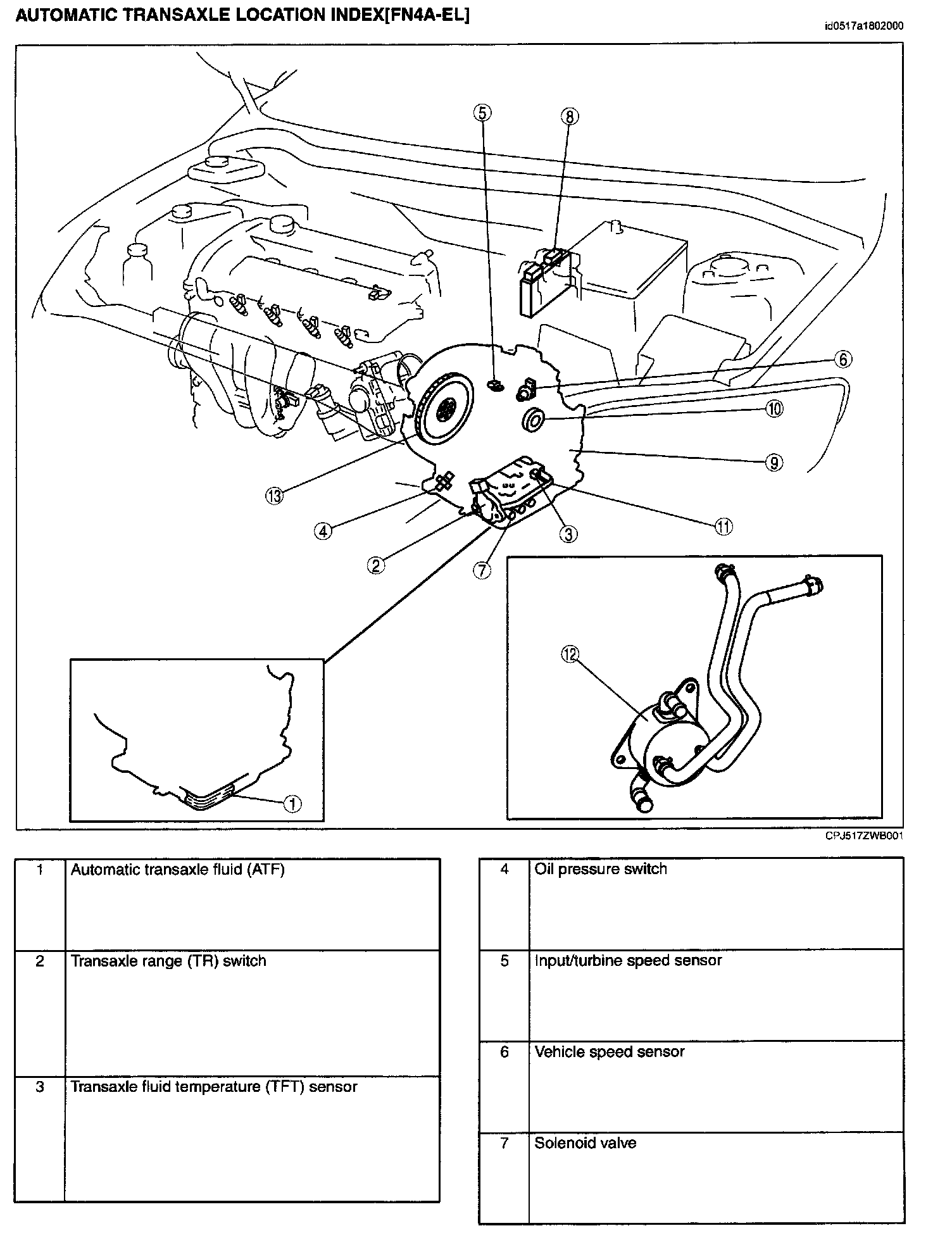

Automatic Transaxle Location Index (FN4A-EL) (Part 1):

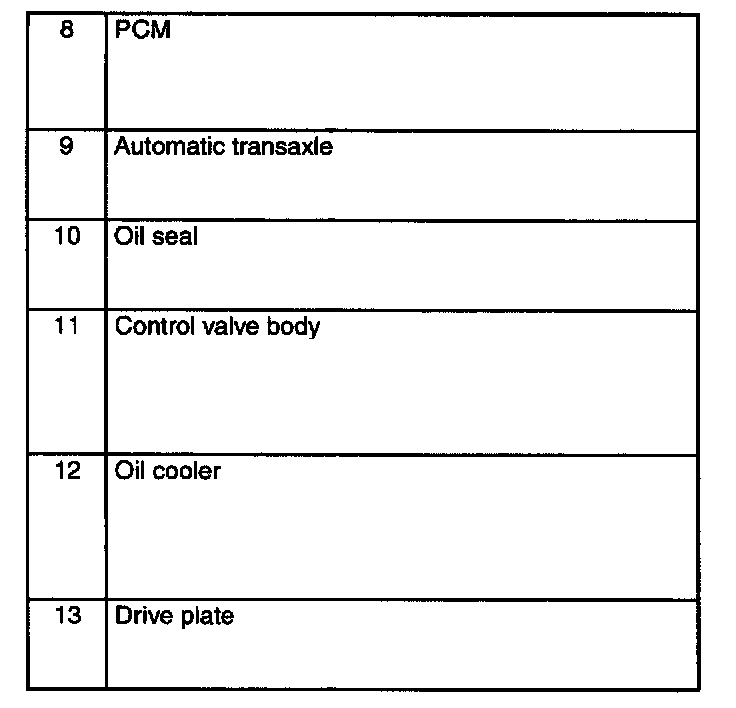

Automatic Transaxle Location Index (FN4A-EL) (Part 2):
