Vehicle Speed Sensor: Specifications

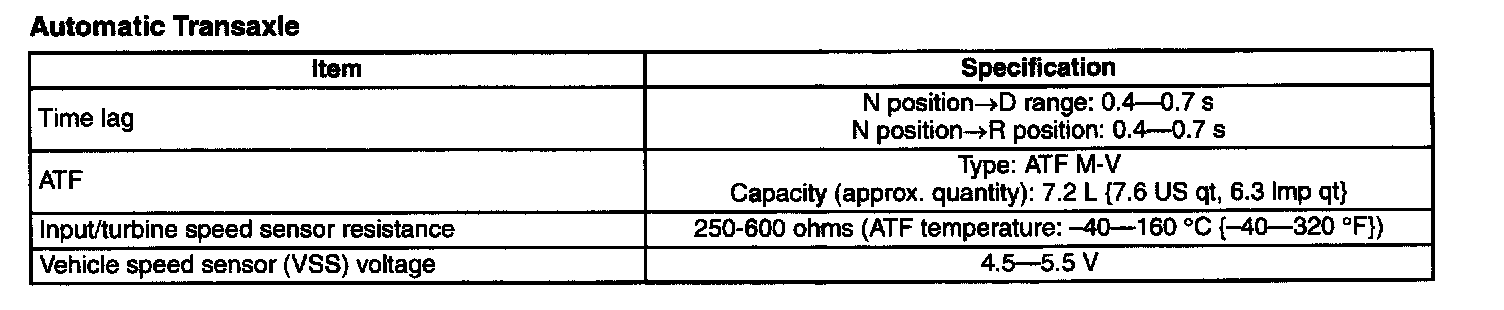

Automatic Transaxle

Automatic Transaxle:

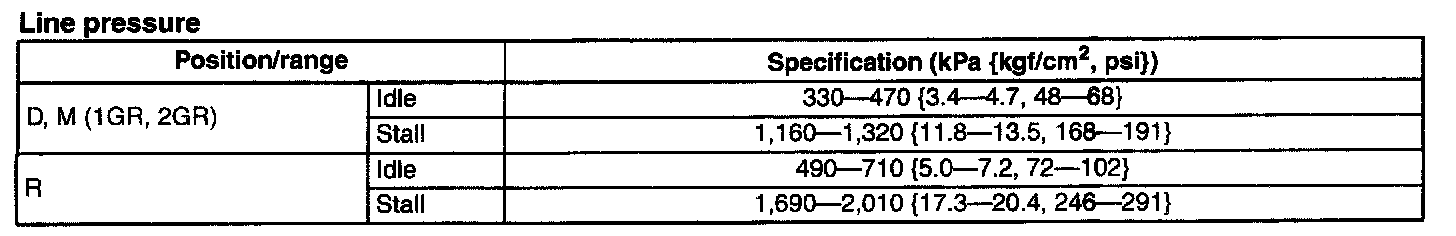

Line Pressure:




Engine Stall Speed:

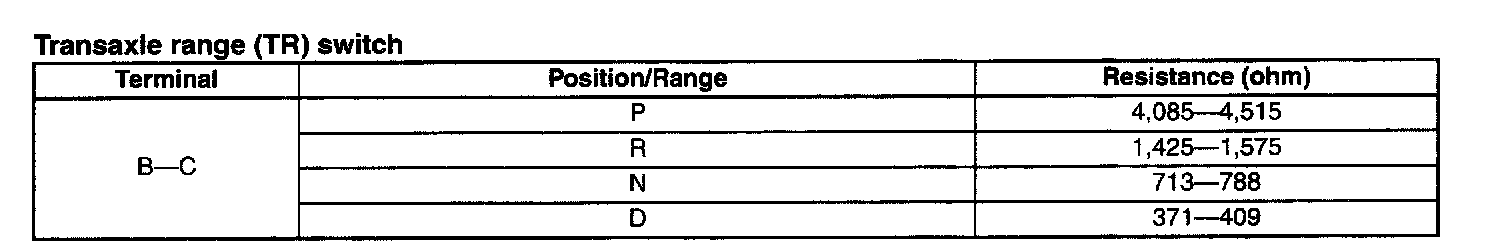

Transaxle Range (TR) Switch:

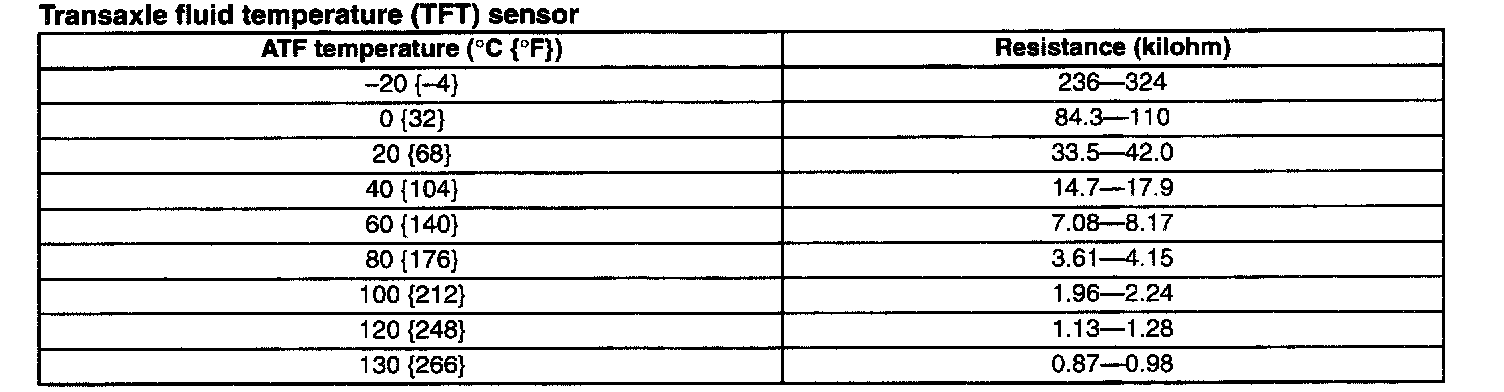

Transaxle Fluid Temperature (TFT) Sensor:

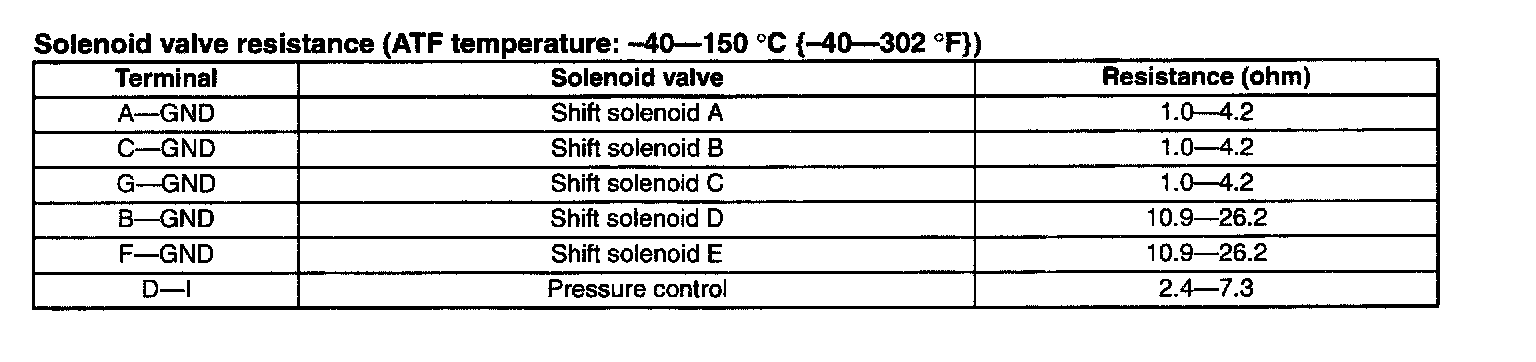

Solenoid Valve Resistance:
