Direction of View For Connector

Direction of View for Connector

- The viewing direction of connectors is indicated with a symbol.
- The figures showing the viewing direct on are the same as those used in Wiring Diagrams.
- The viewing directions are shown in the following three ways:

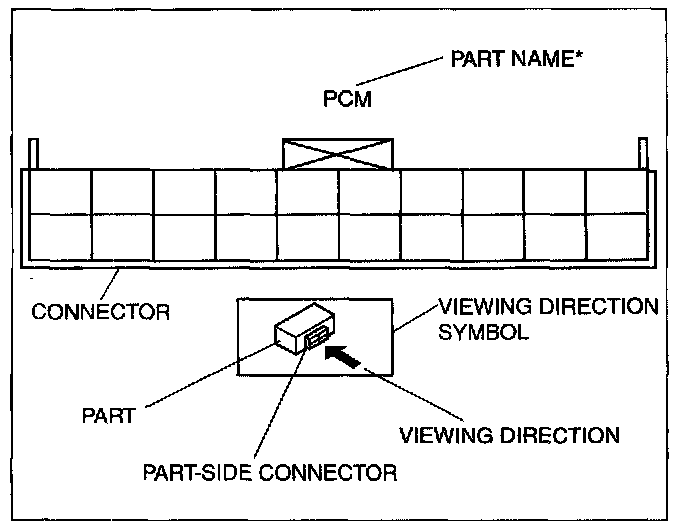

Part-side connector




The viewing direction of part-side connectors is from the terminal side.
- Part names are shown only when there are multiple connector drawings.

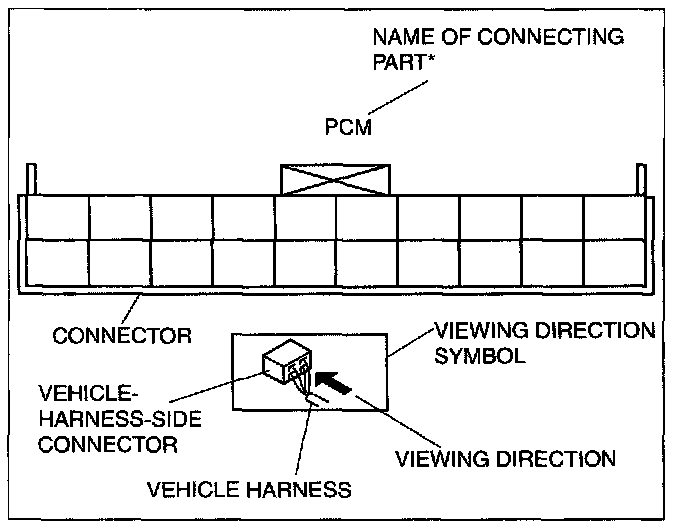

Vehicle harness-side connector




The viewing direction of vehicle harness-side connectors is from the harness side.
- Part names are shown only when there are multiple connector drawings.

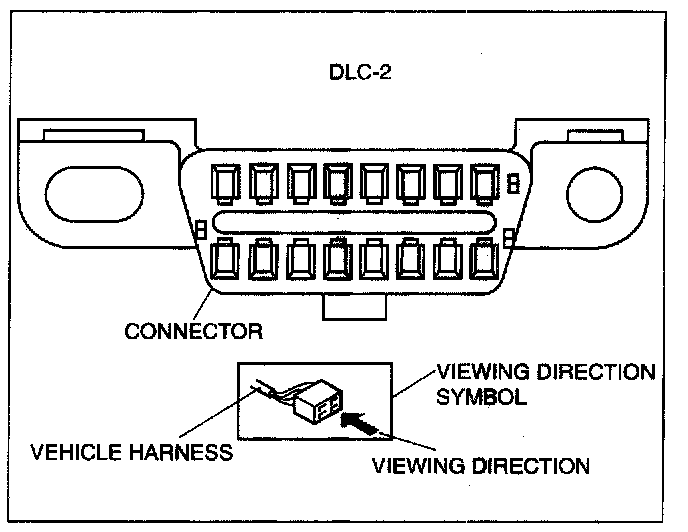

Other




When it is necessary to show the terminal side of vehicle harness-side connectors, such as the following connectors, the viewing direction is from the terminal side.
- Main fuse block and the main fuse block relays
- Data link connector
- Check connector
- Relay box
