Oil Pan, Engine

Oil Pan

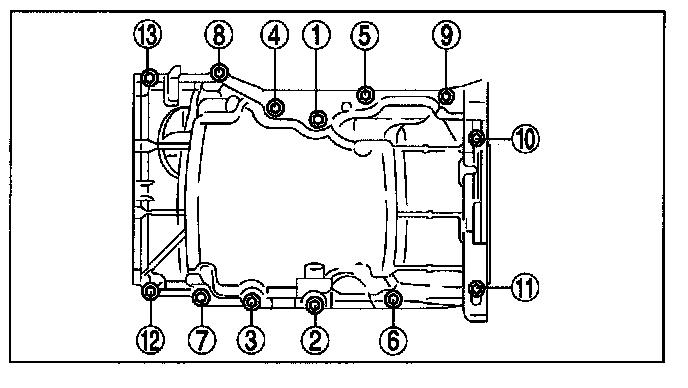

Tighten the bolts in the order as shown in the figure.





Tightening torque
17-23 N-m (1.8-2.3 kgf-m, 12.6-16.9 ft-lbf)

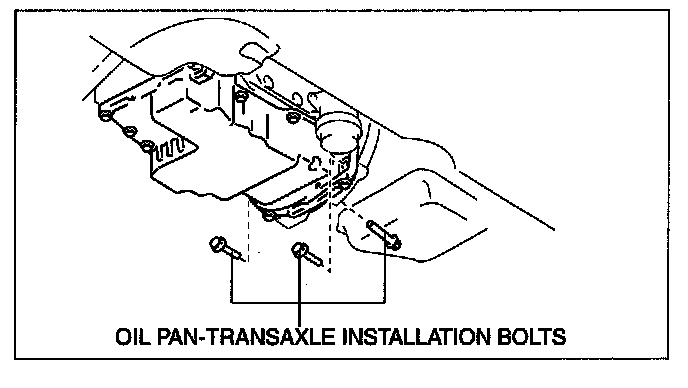

Tighten the three oil pan-transaxle installation bolts.
Tightening torque
37.3-52.0 N-m (3.8-5.3 kgf-m, 27.5-38.3 ft-lbf)
