Engine Technical Data [L3]

ENGINE TECHNICAL DATA [L3]

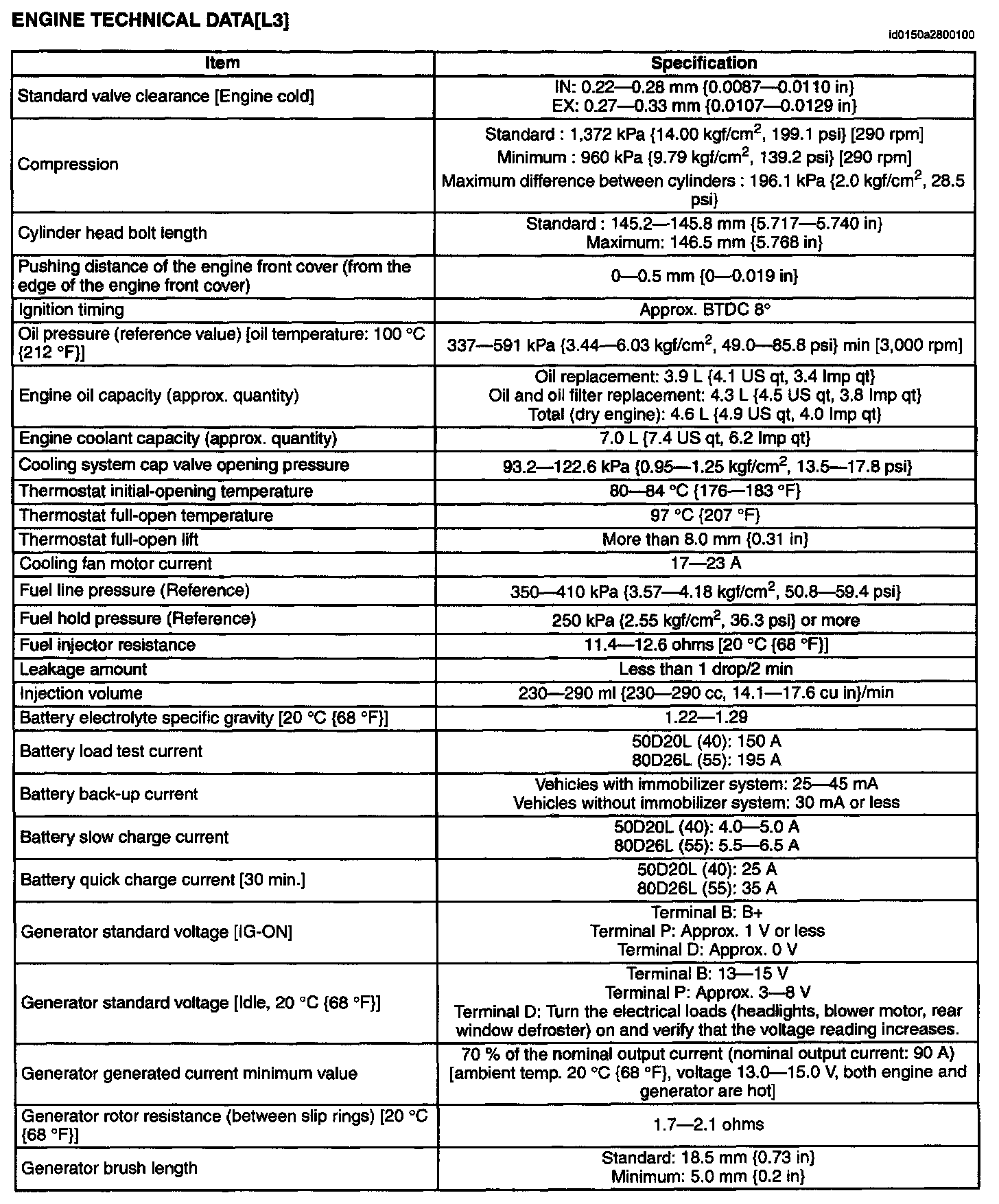

Engine Technical Data (L3) (Part 1):

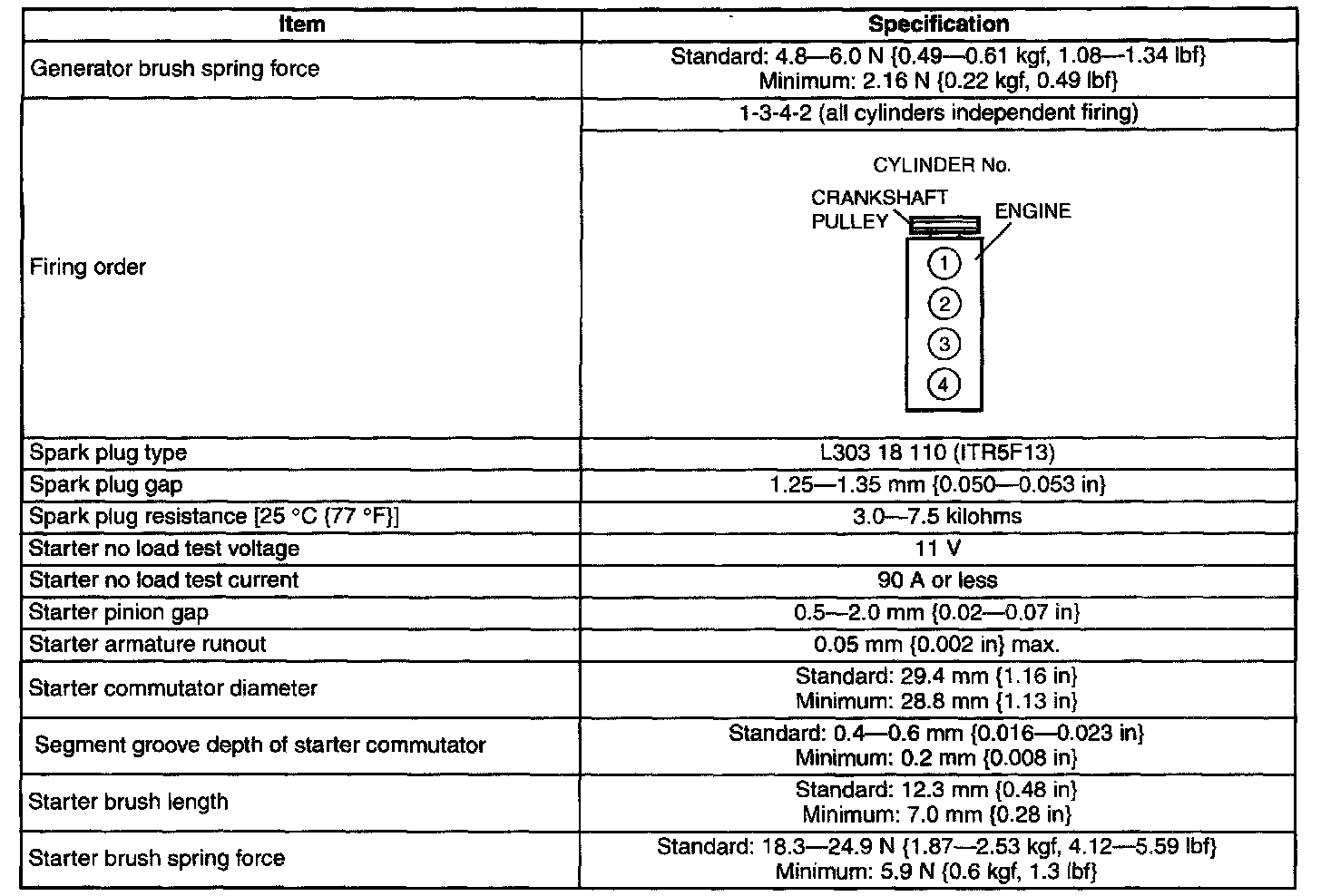

Engine Technical Data (L3) (Part 2):

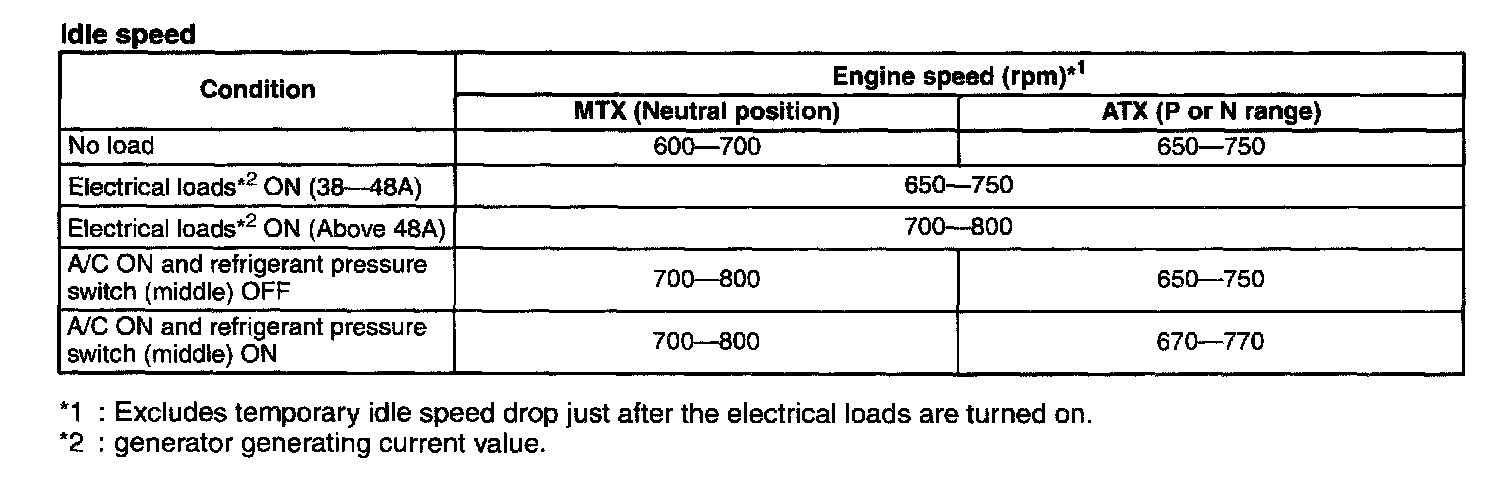

Idle Speed:

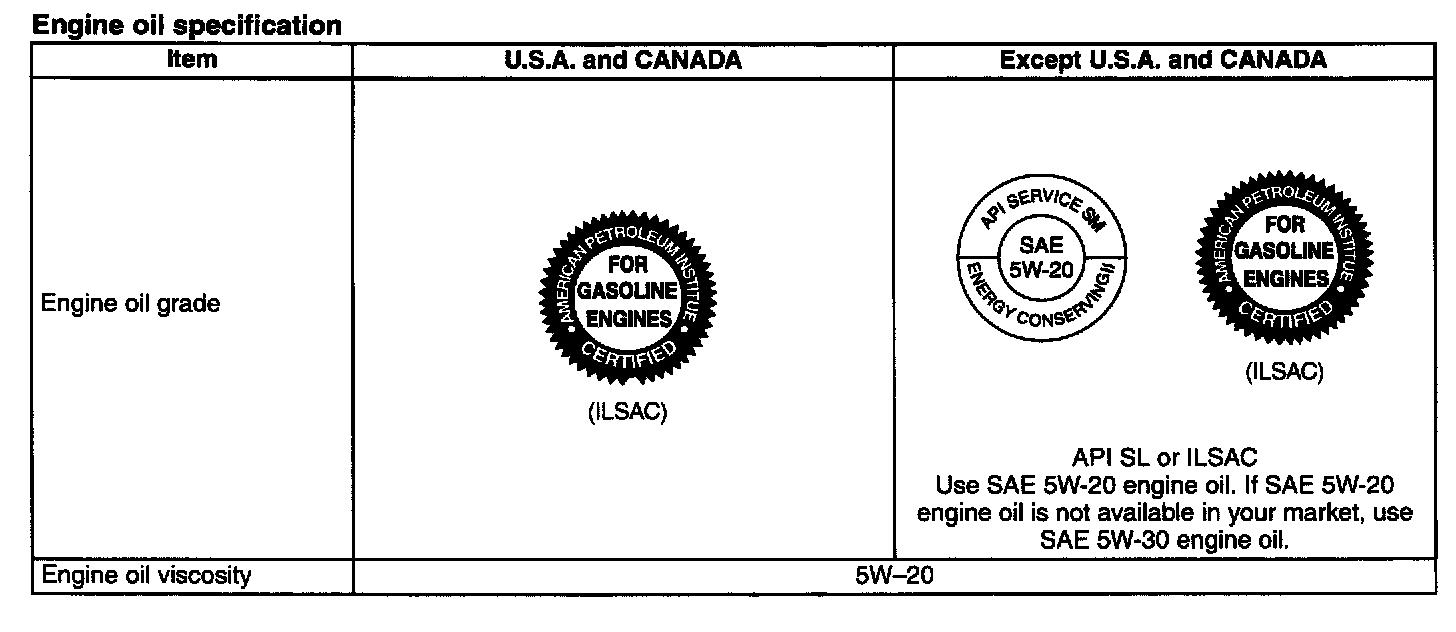

Engine Oil Specification:
