Flywheel

Flywheel

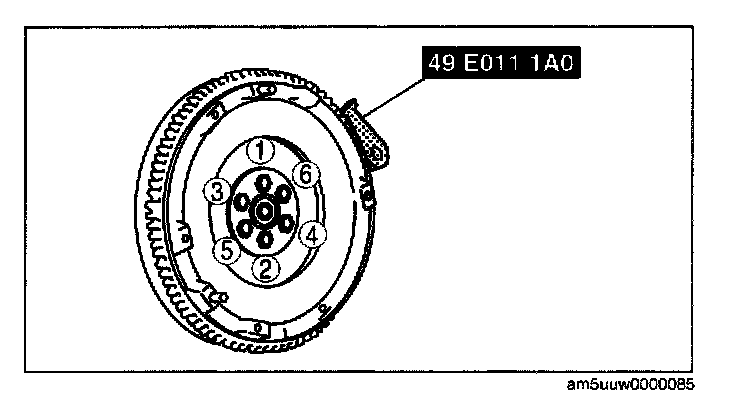

Gradually tighten the flywheel lock bolts in a crisscross pattern.
Tightening torque 108-116 Nm (11.1 - 11.8 kgf.m, 79.7-85.5 ft.lbf)
