Oscilloscope Patterns and Waveforms

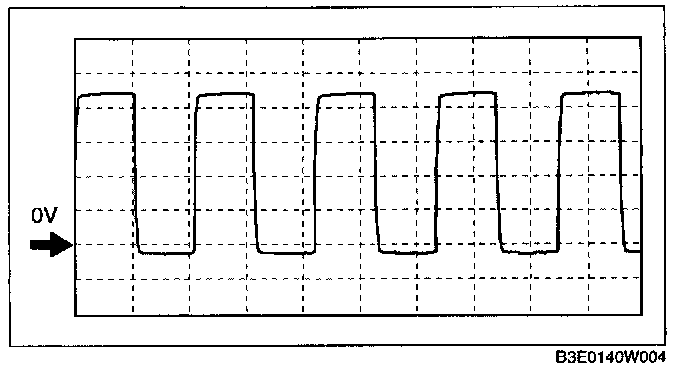

Generator output voltage signal




PCM terminals: 2AM (+)-body ground (-)
- Oscilloscope setting: 2 V/DIV (Y), 2.5 minutes/DIV (X), DC range
- Vehicle condition: Idle after warm up (engine speed approx. 650 rpm, no load)
