Ignition Switch: Service and Repair

IGNITION SWITCH REMOVAL/INSTALLATION

1. Remove the battery cover.
2. Disconnect the negative battery cable.
3. Remove the meter hood.
4. Remove the column cover.

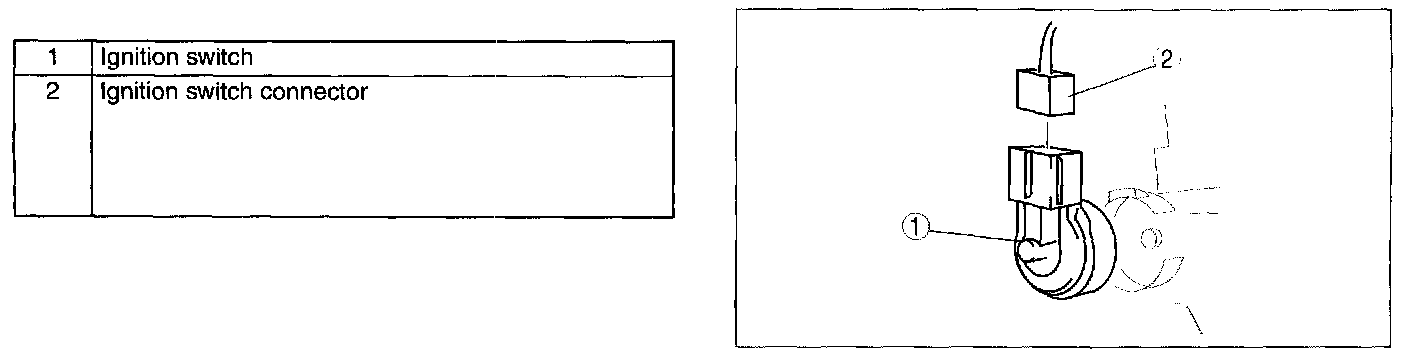

Power System Location Index:

5. Remove in the order indicated in the above table.
6. Install in the reverse order of removal.

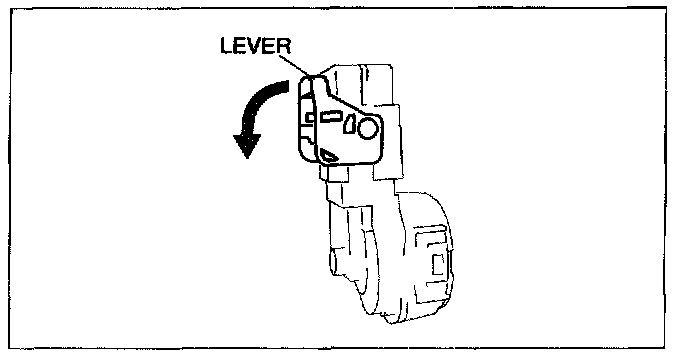

Ignition Switch Connector Removal Note




1. Rotate the lever in the direction of the arrow and remove the connector.

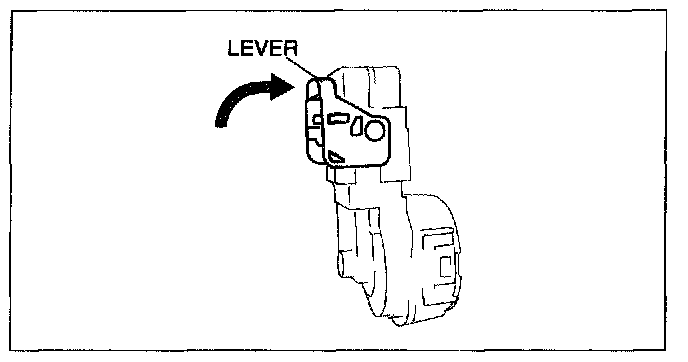

Ignition Switch Connector Installation Note




1. After connecting the connector, rotate the lever in the direction of the arrow to install the connector.
