Navigation Module: Service and Repair

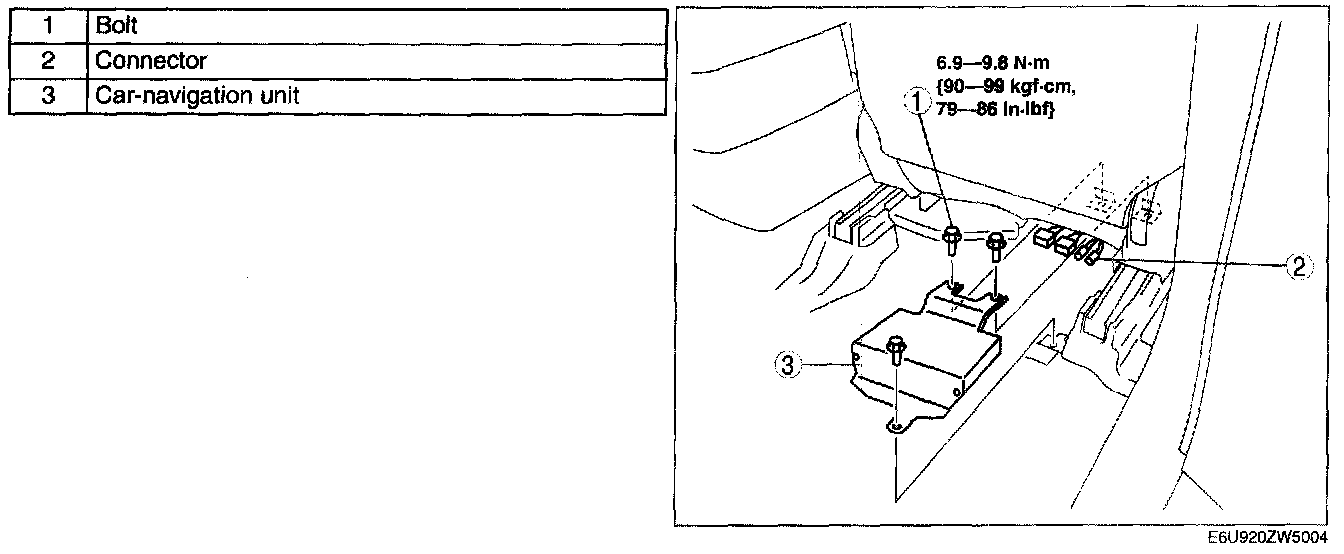

CAR-NAVIGATION UNIT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.




2. Remove in the order indicated in the above table.
3. Install in the reverse order of removal.
