Control System

BODY CONTROL MODULE (BCM) INSPECTION

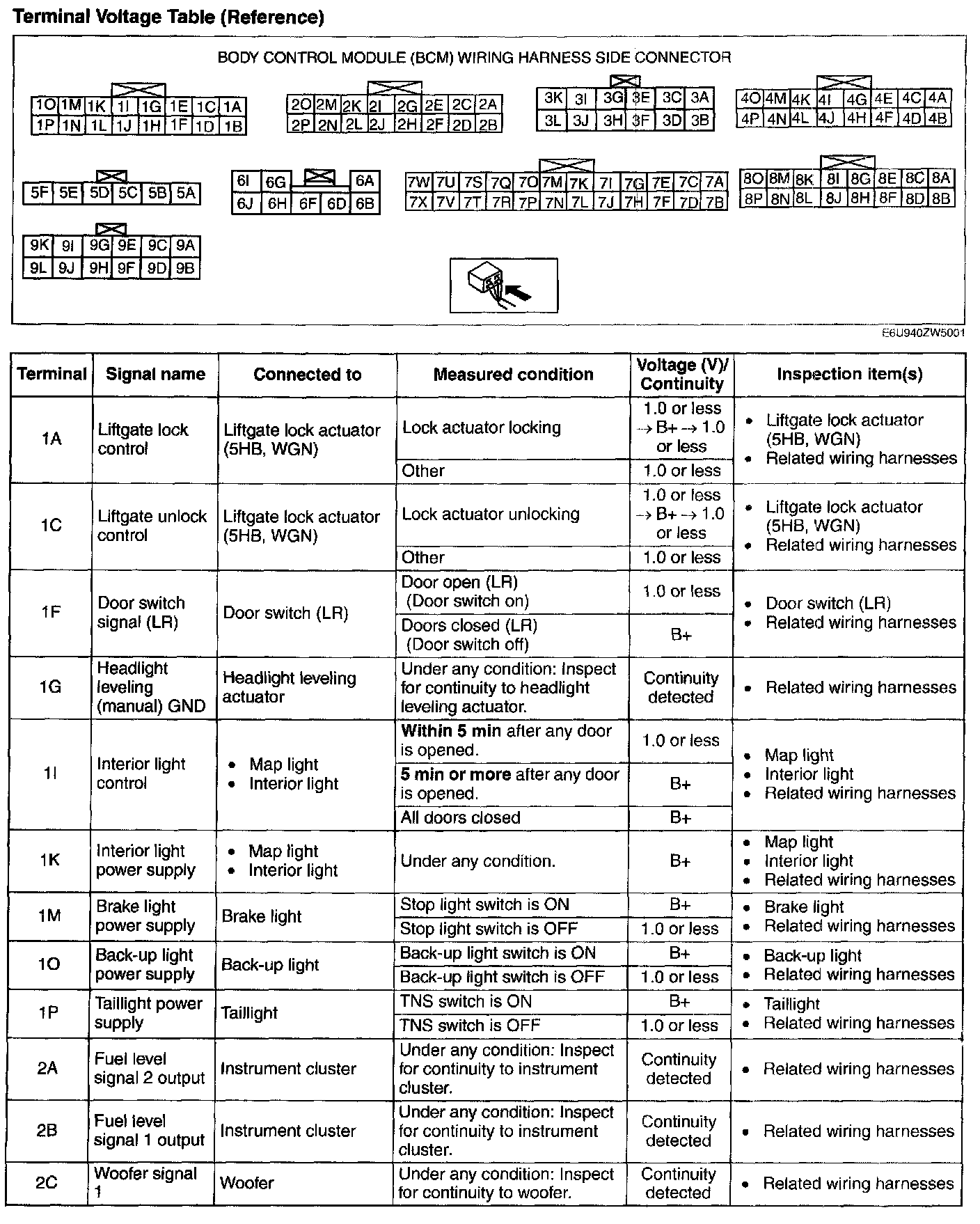

Terminal Voltage Table (Reference) - Terminals (1A -2C):

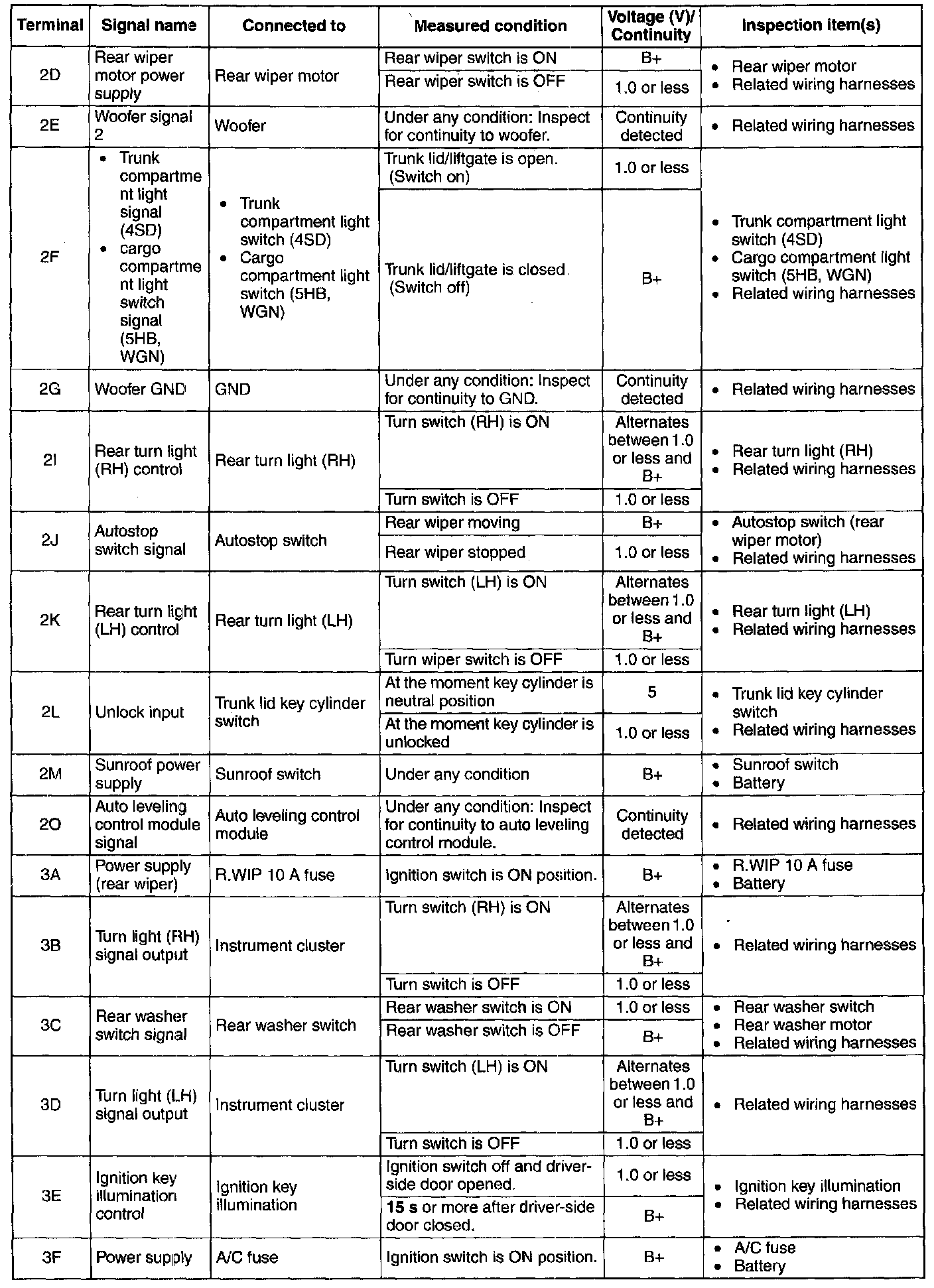

Terminal Voltage Table (Reference) - Terminals (2D-3F):

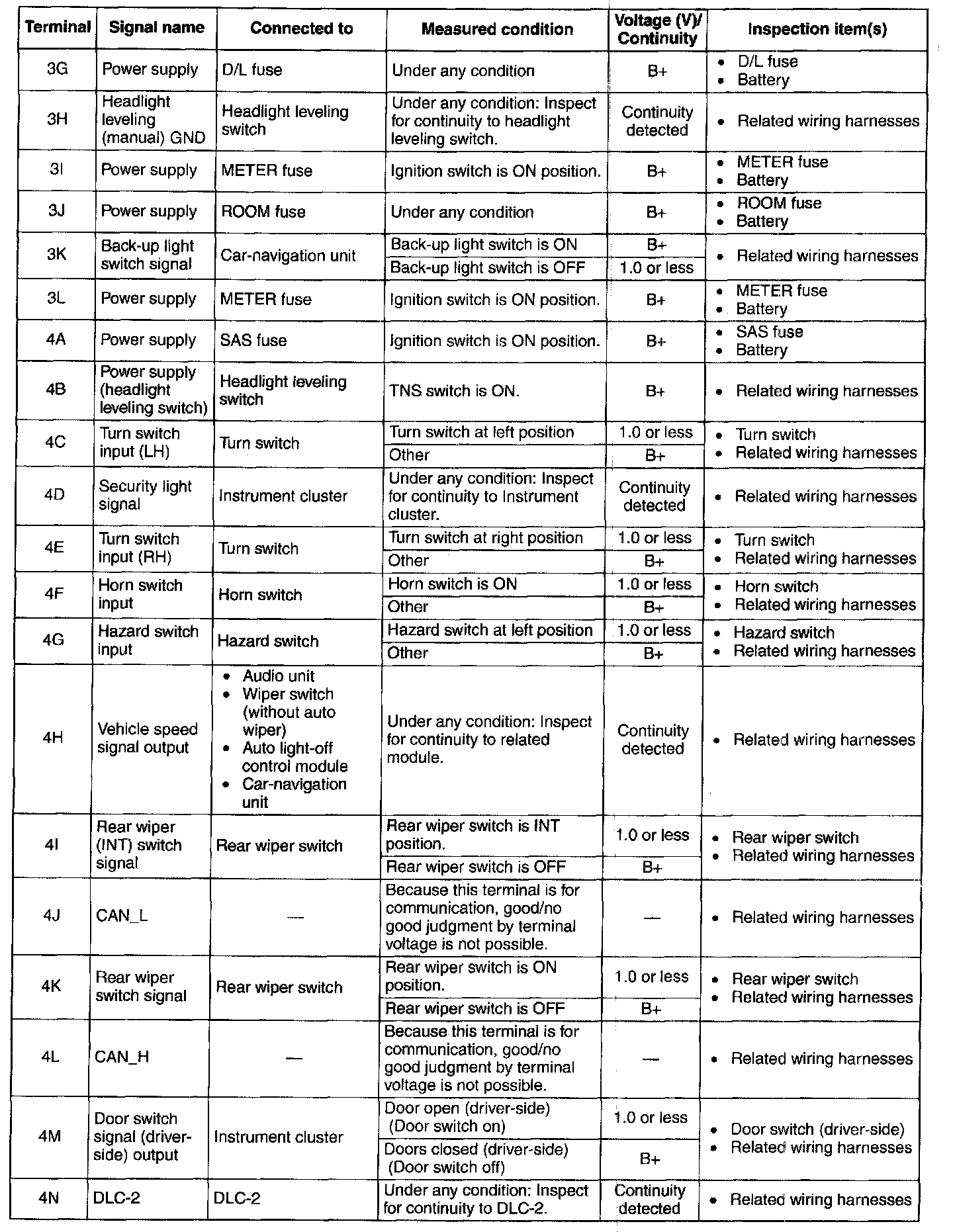

Terminal Voltage Table (Reference) - Terminals (3G-4N):

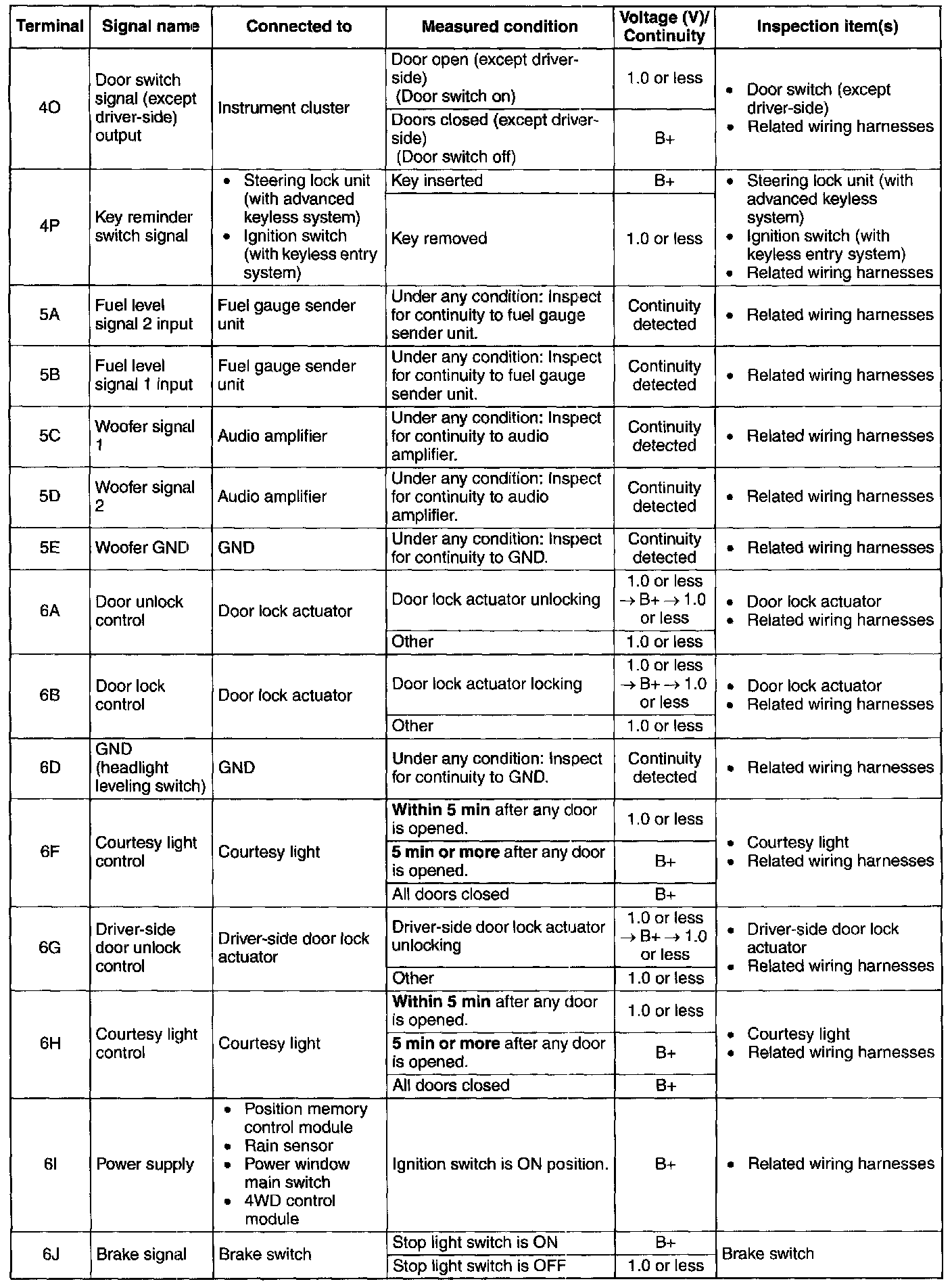

Terminal Voltage Table (Reference) - Terminals (4O-6J):

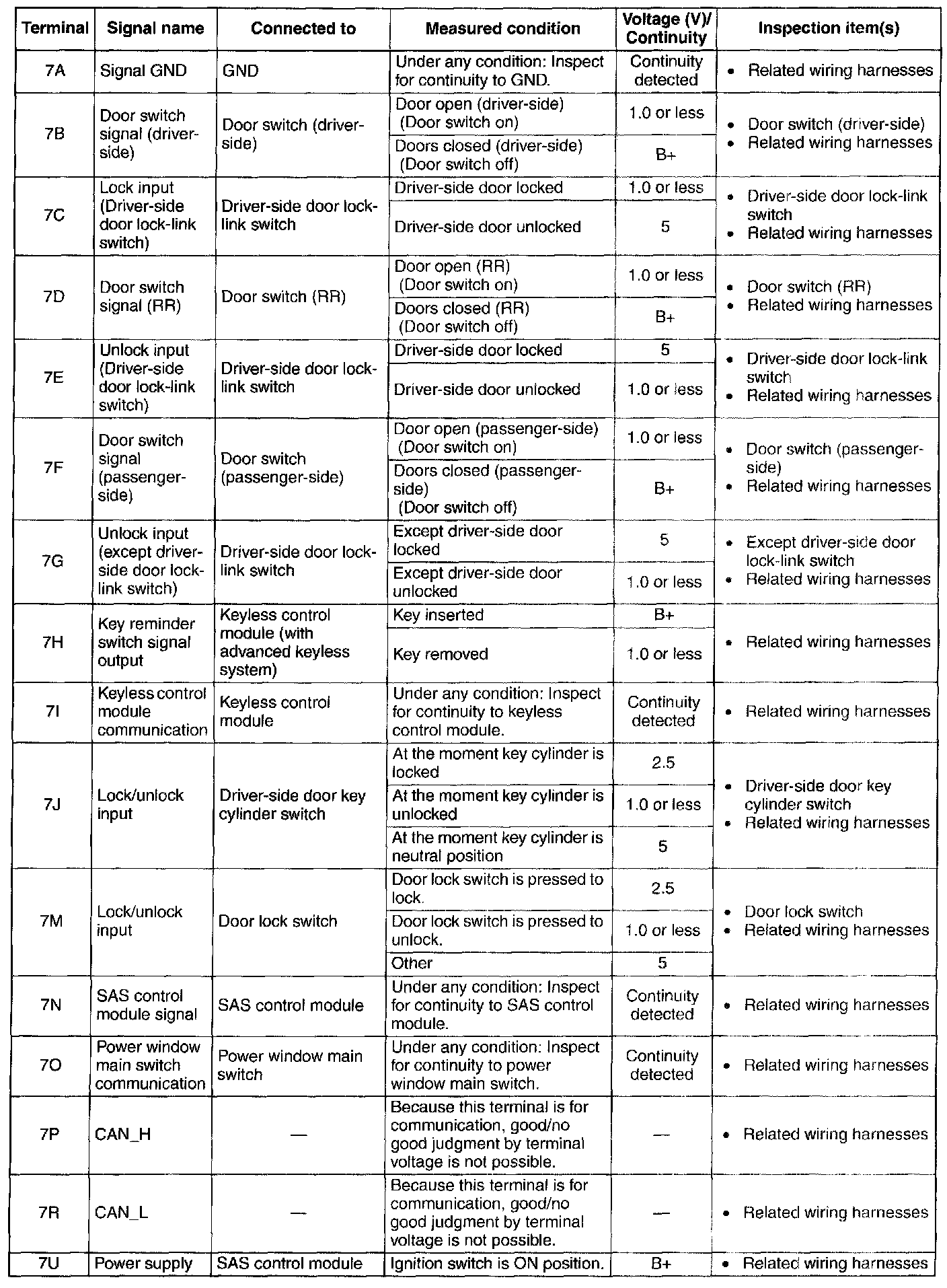

Terminal Voltage Table (Reference) - Terminals (7A-7U):

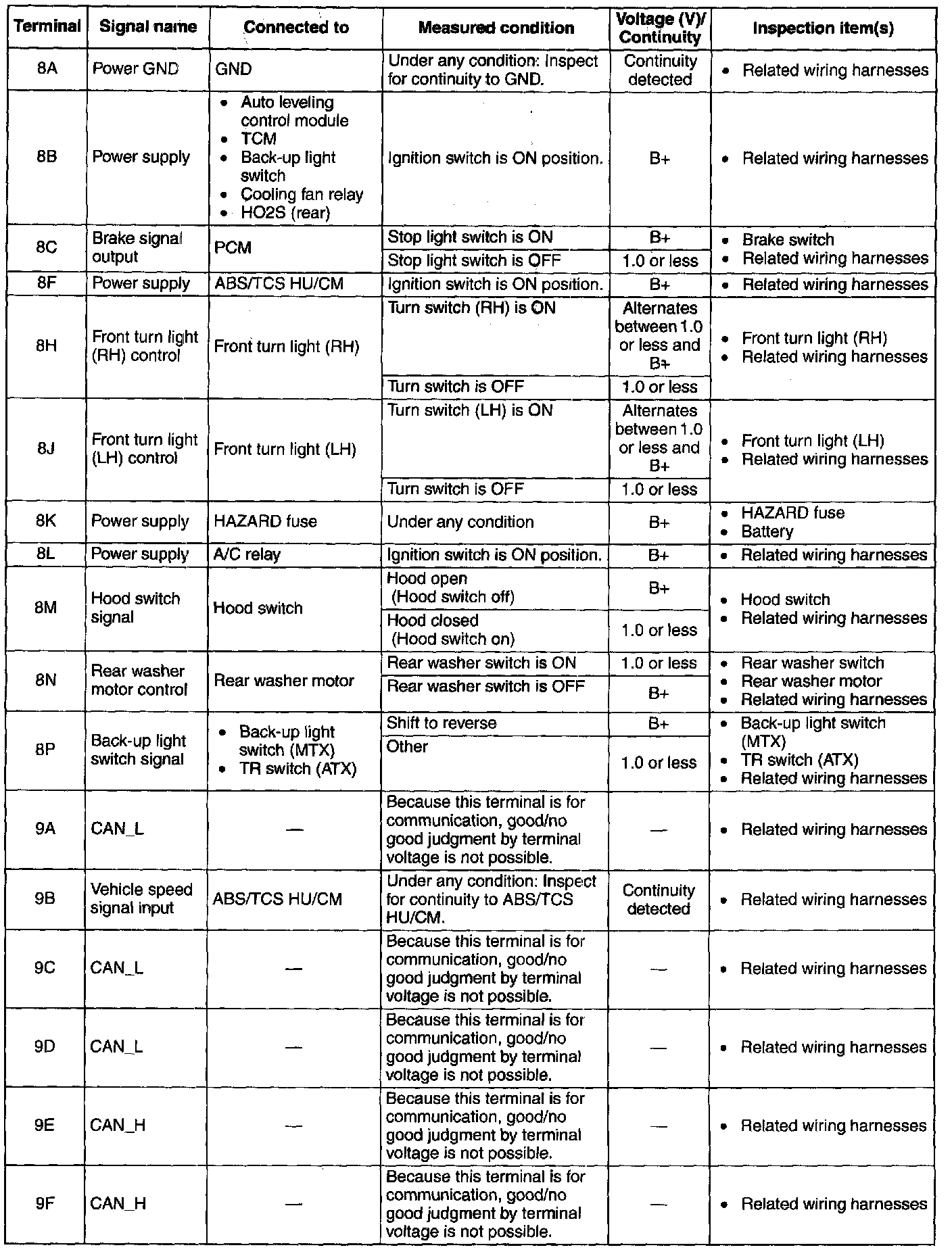

Terminal Voltage Table (Reference) - Terminals (8A-9F):

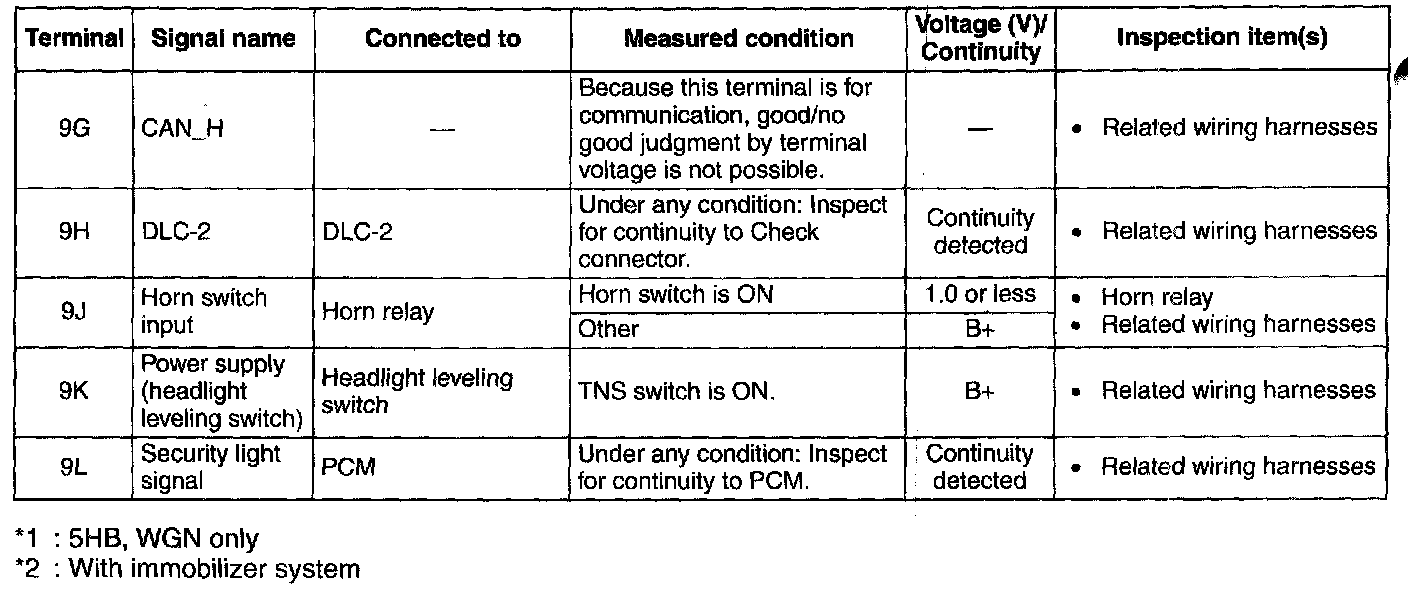

Terminal Voltage Table (Reference) - Terminals (9G-9L):

1. Measure the voltage or inspect for continuity according to the Terminal Voltage Table (Reference).
- If the voltage is not as specified in the Terminal Voltage Table (Reference), inspect the parts under "Inspection item(s)" and related wiring harnesses.
