Outline and Flowchart

MULTIPLEX COMMUNICATION SYSTEM [L3, AJ]

Outline
- If the controller area network (CAN) system is malfunctioning, read the DTCs of the following modules, using the SST (WDS or equivalent) to determine the malfunctioning system.
- PCM
- ABS/TCS HU/CM
- TCM
- Instrument cluster

Flowchart

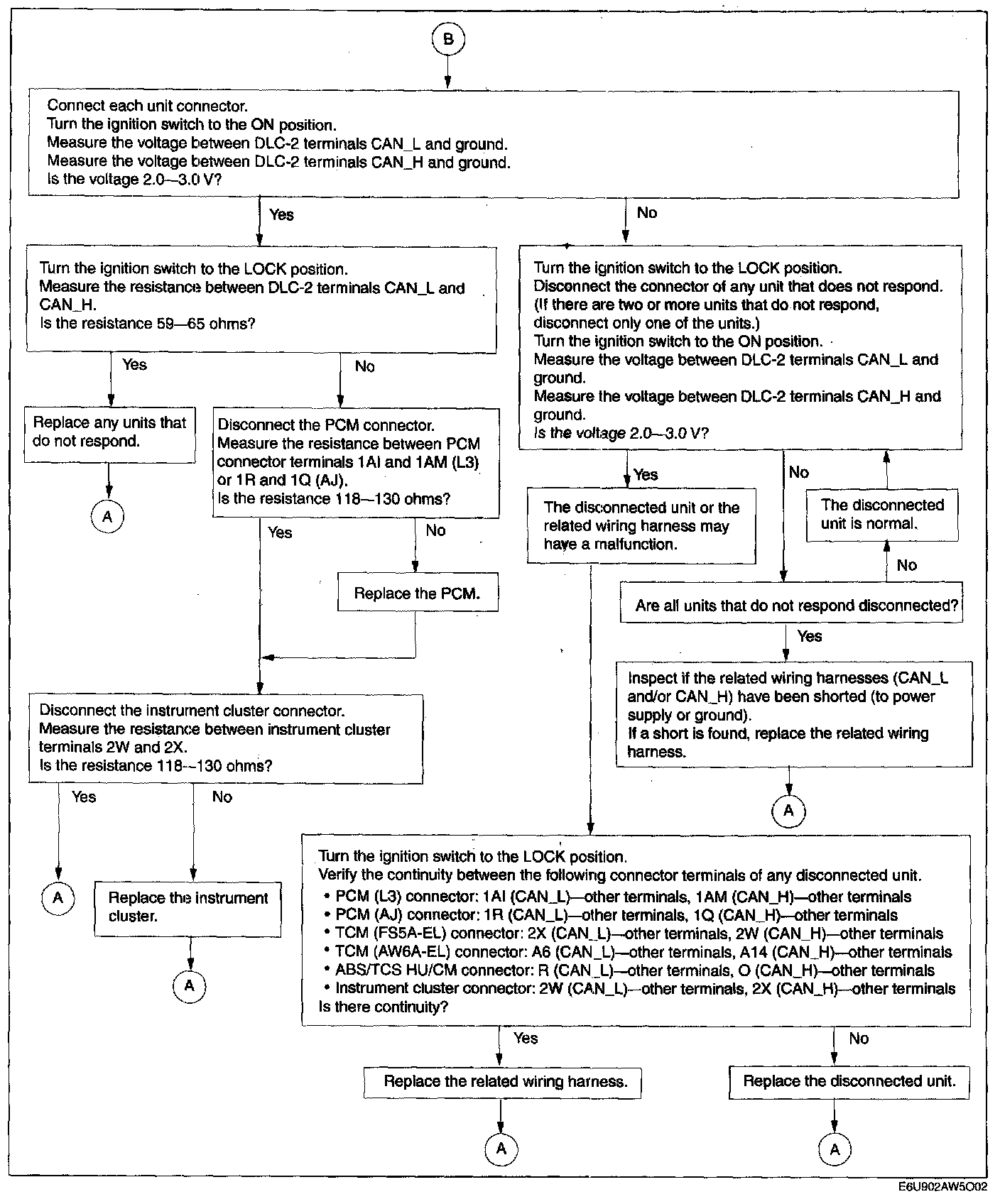

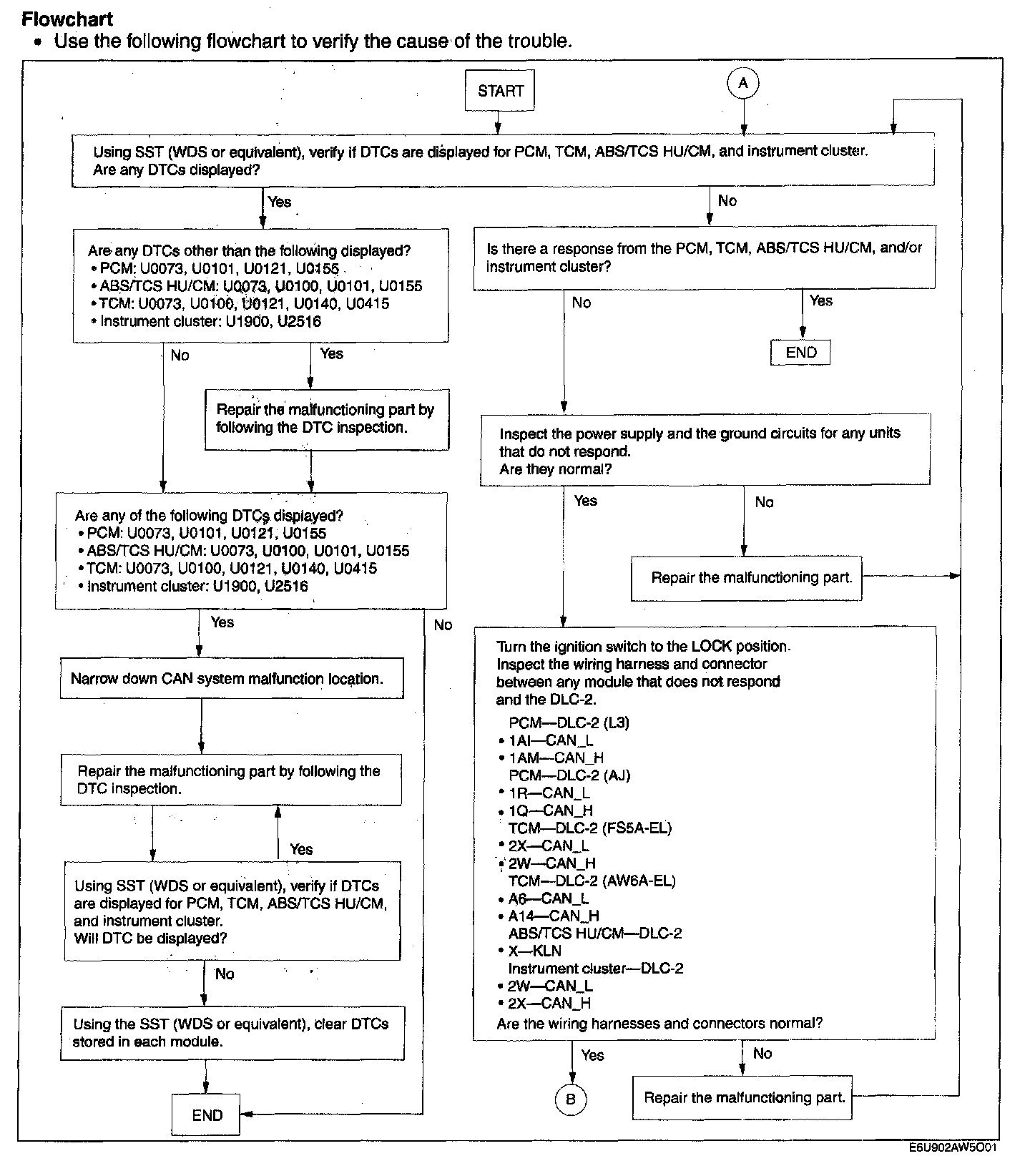

Flowchart:

- Use the flowchart to verify the cause of the trouble.
