System Schematic

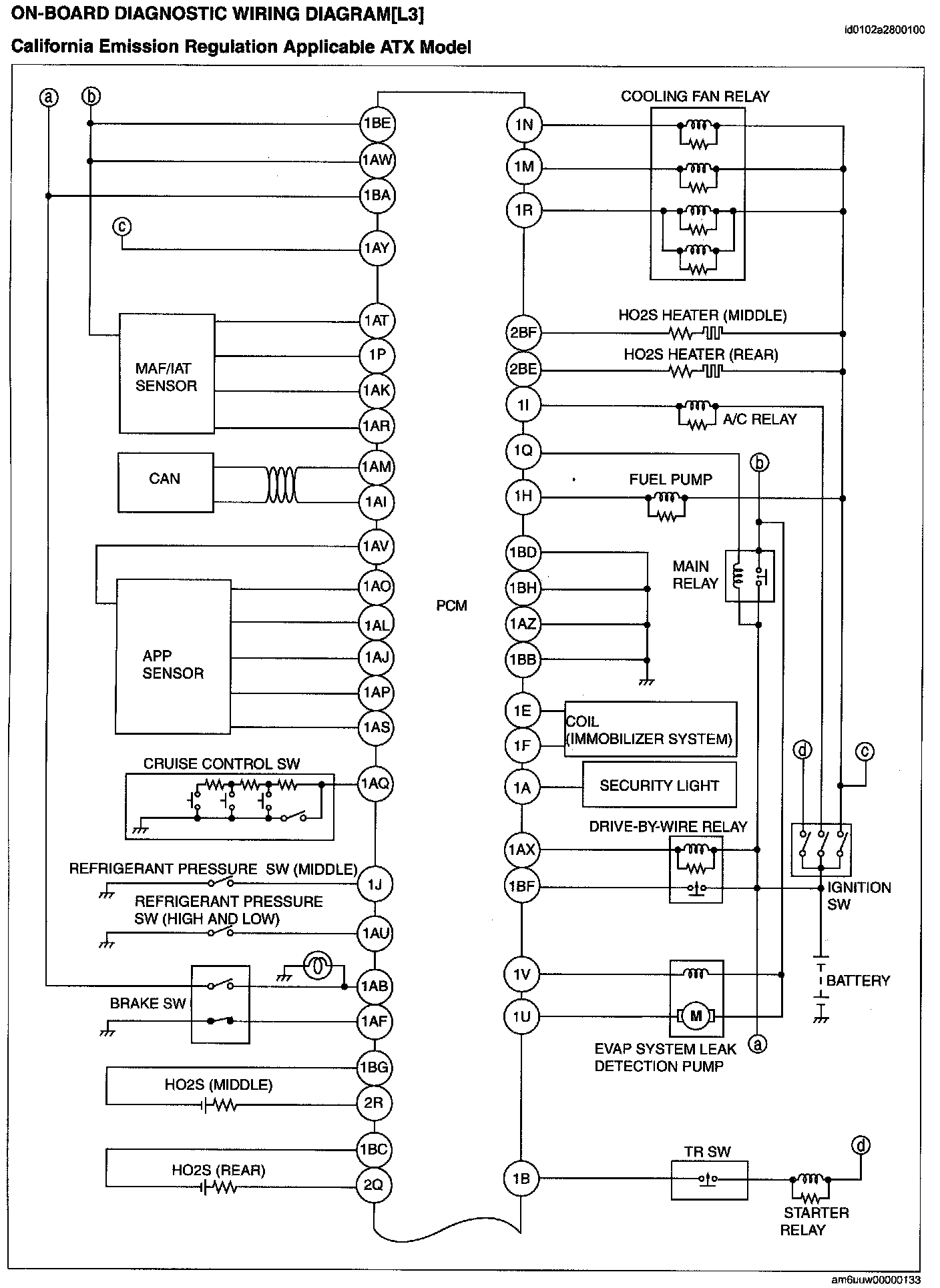

On-Board Diagnostic Wiring Diagram[L3]:

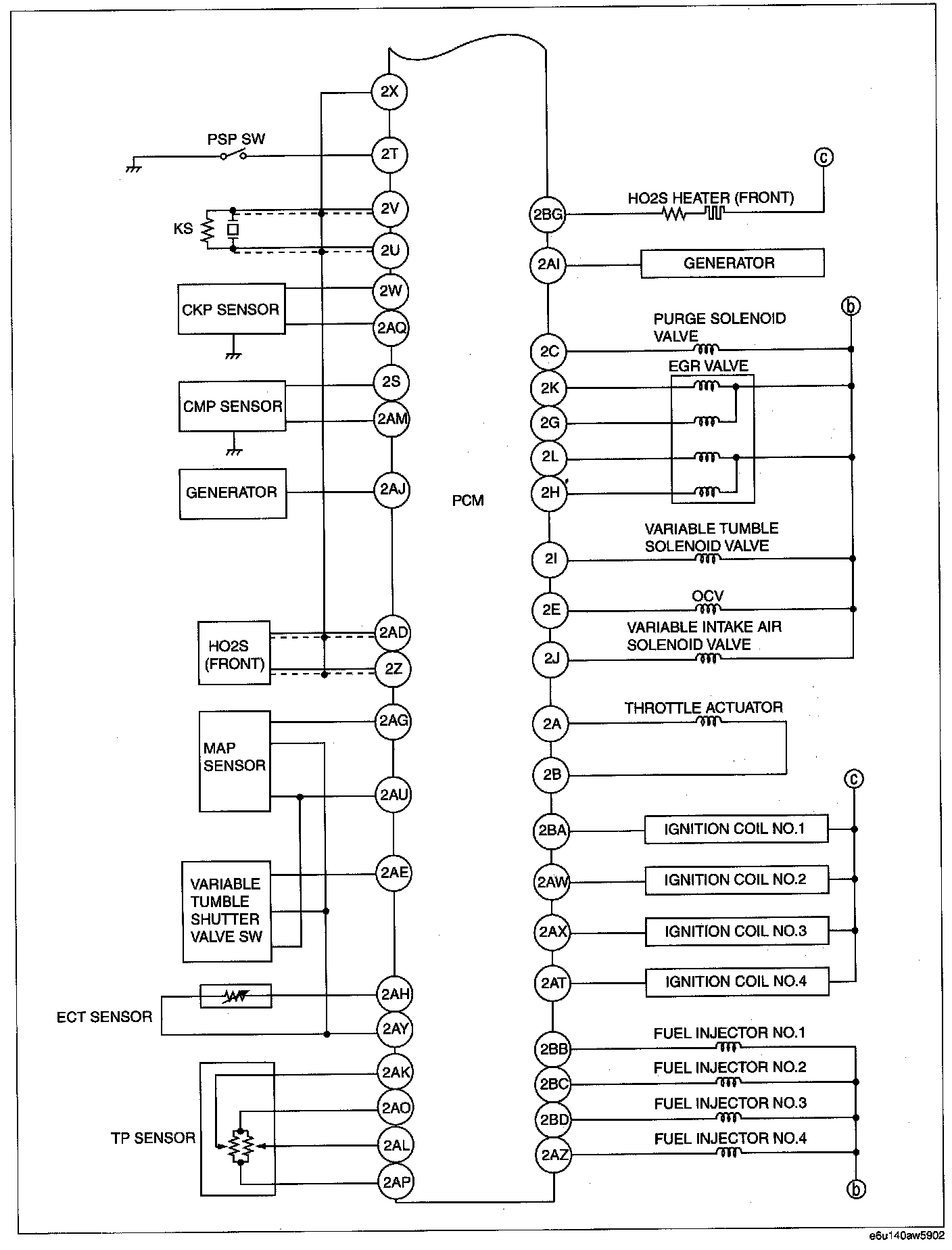

On-Board Diagnostic Wiring Diagram[L3] (Part 2):

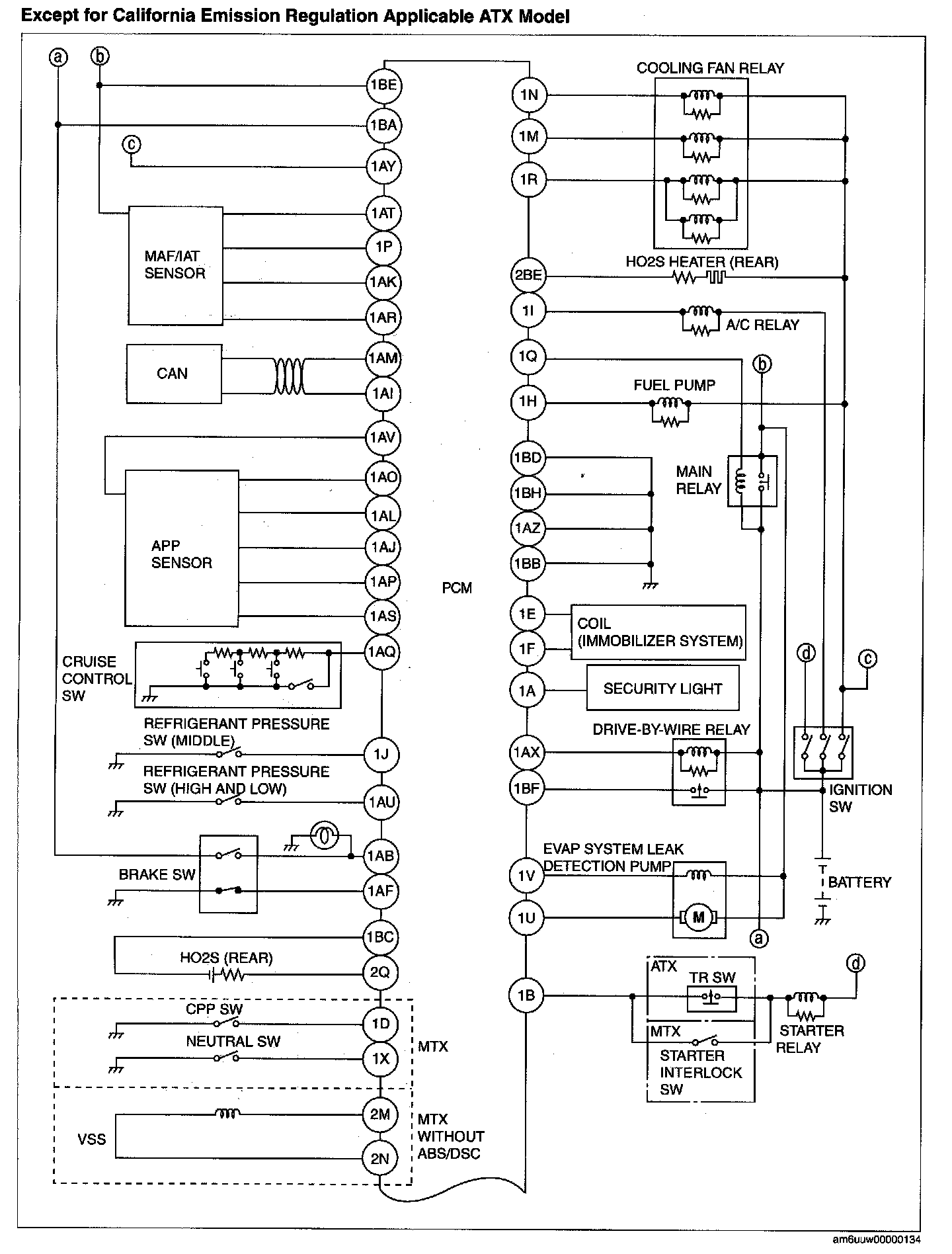

On-Board Diagnostic Wiring Diagram[L3]-Except For California Emission Regulation Applicable ATX Model:

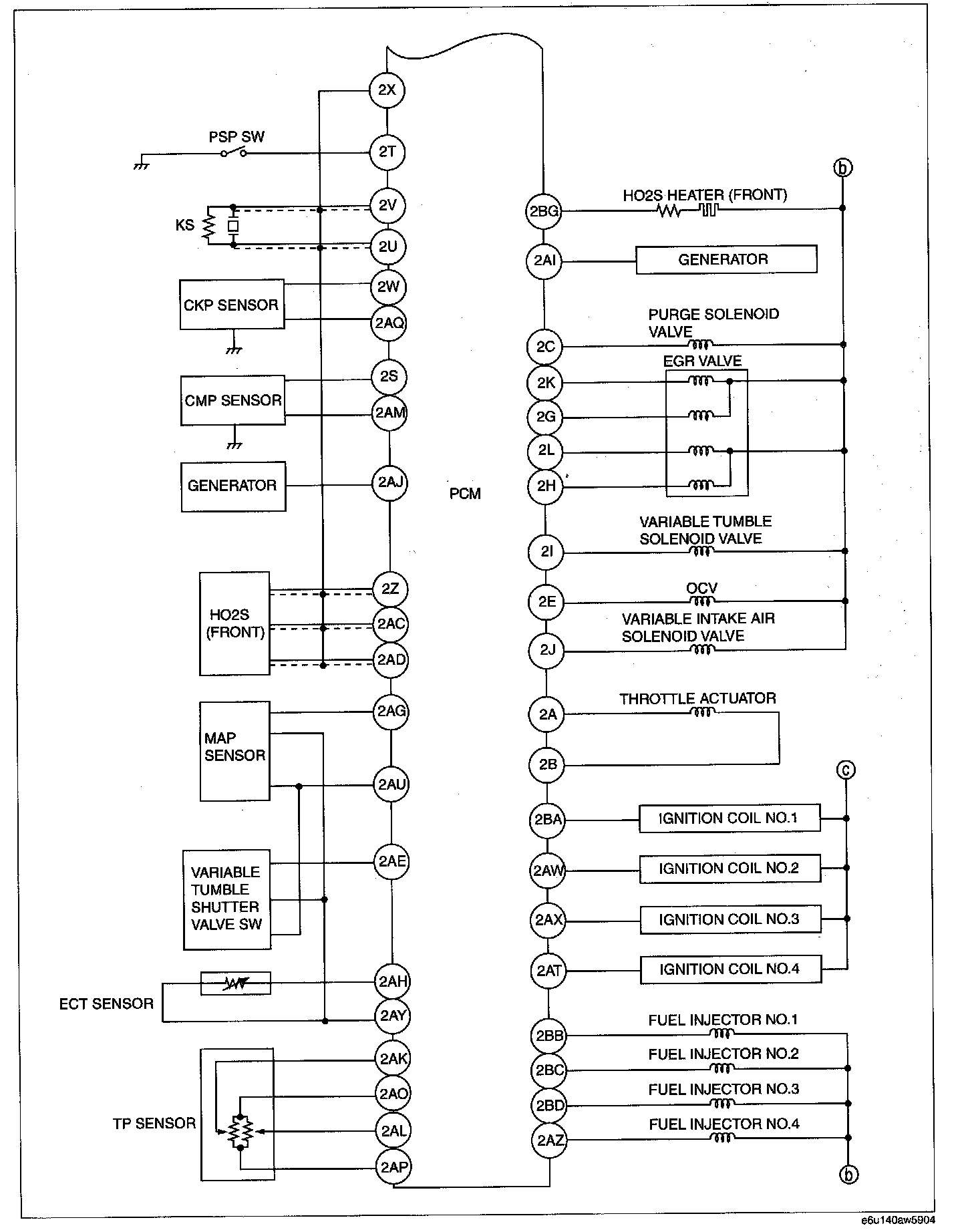

On-Board Diagnostic Wiring Diagram[L3]-Except For California Emission Regulation Applicable ATX Model (Part 2):
