Pinout Values and Diagnostic Parameters

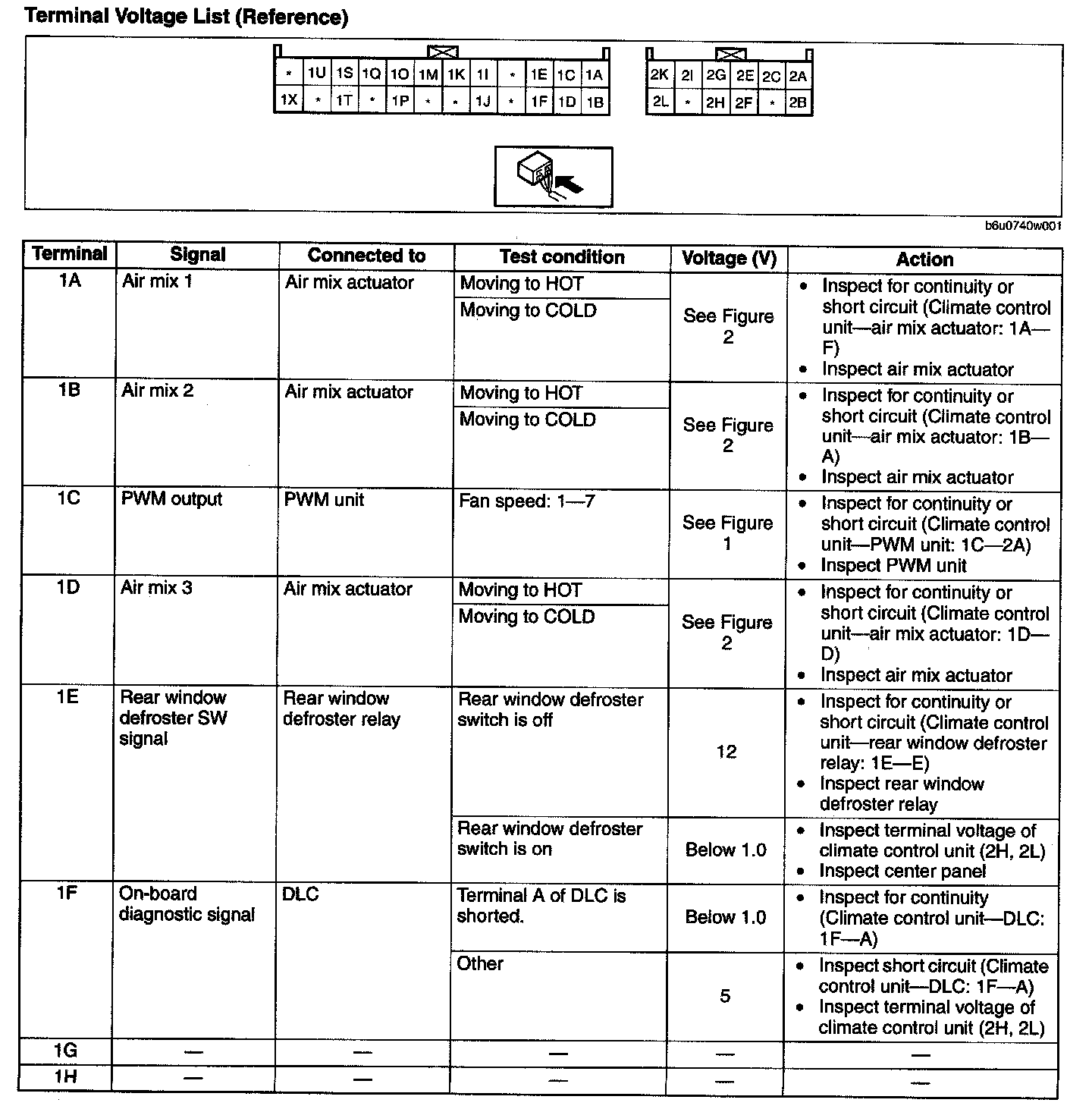

Terminal No 1A-1H:

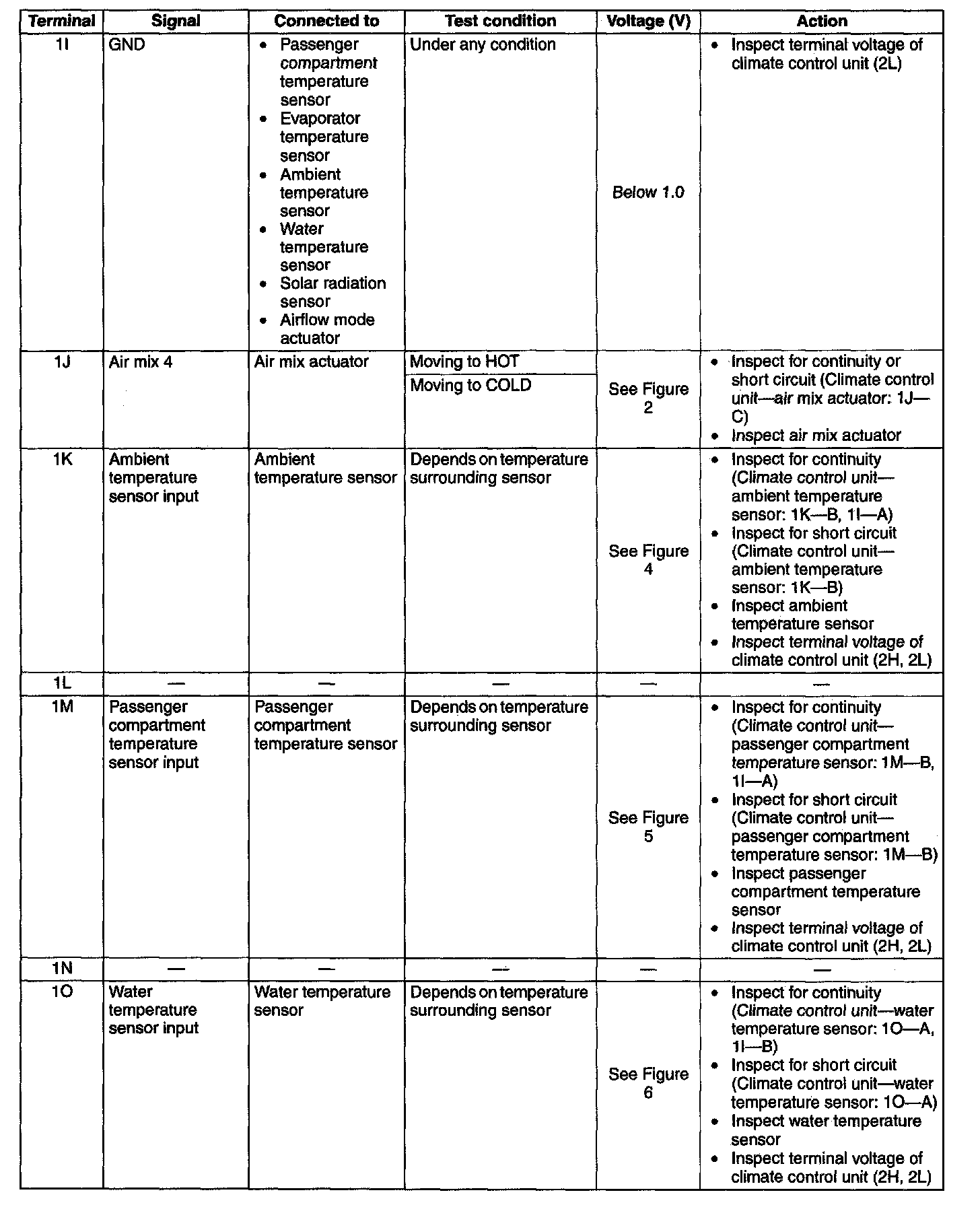

Terminal No 1I-1O:

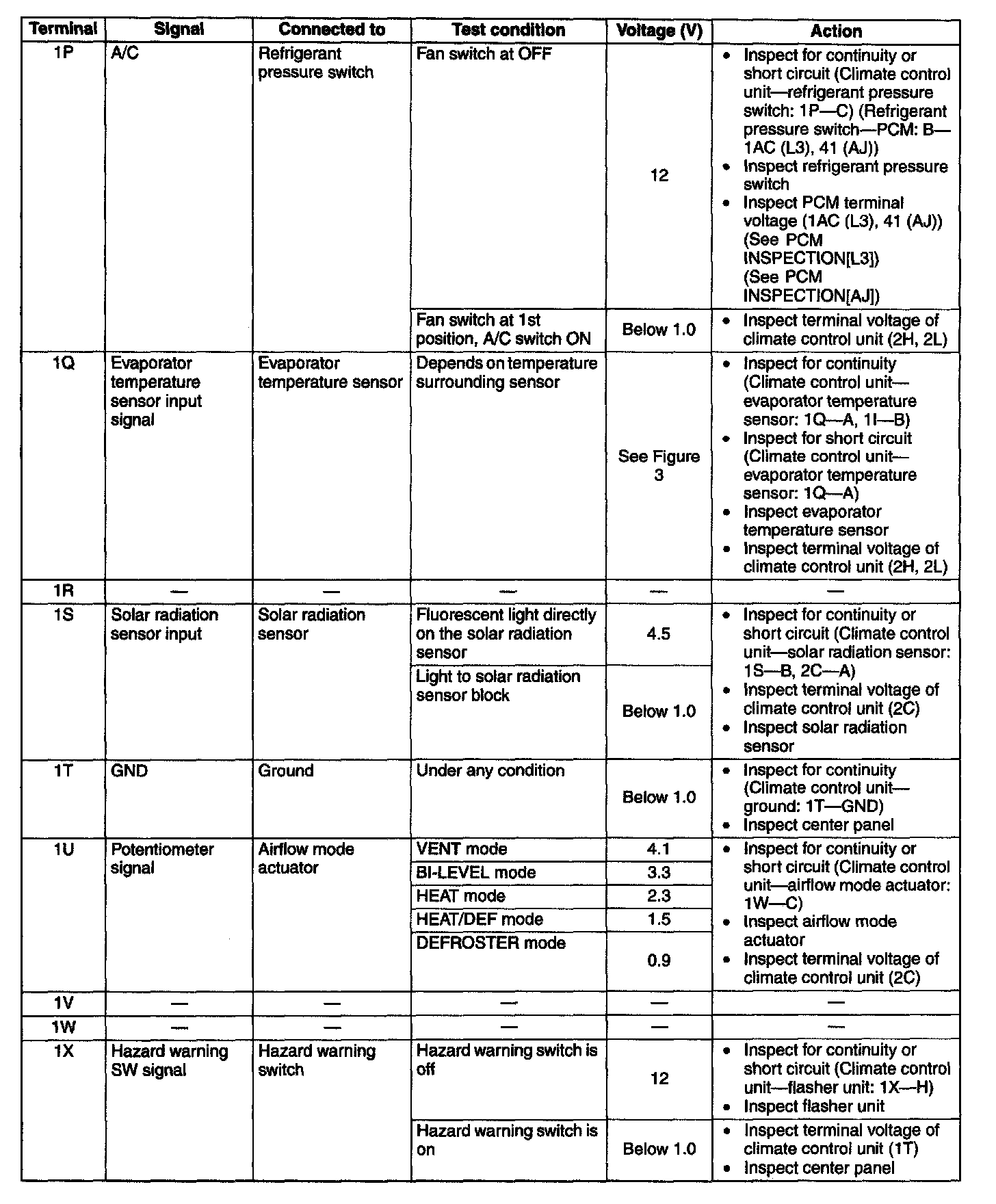

Terminal No 1P-1X:

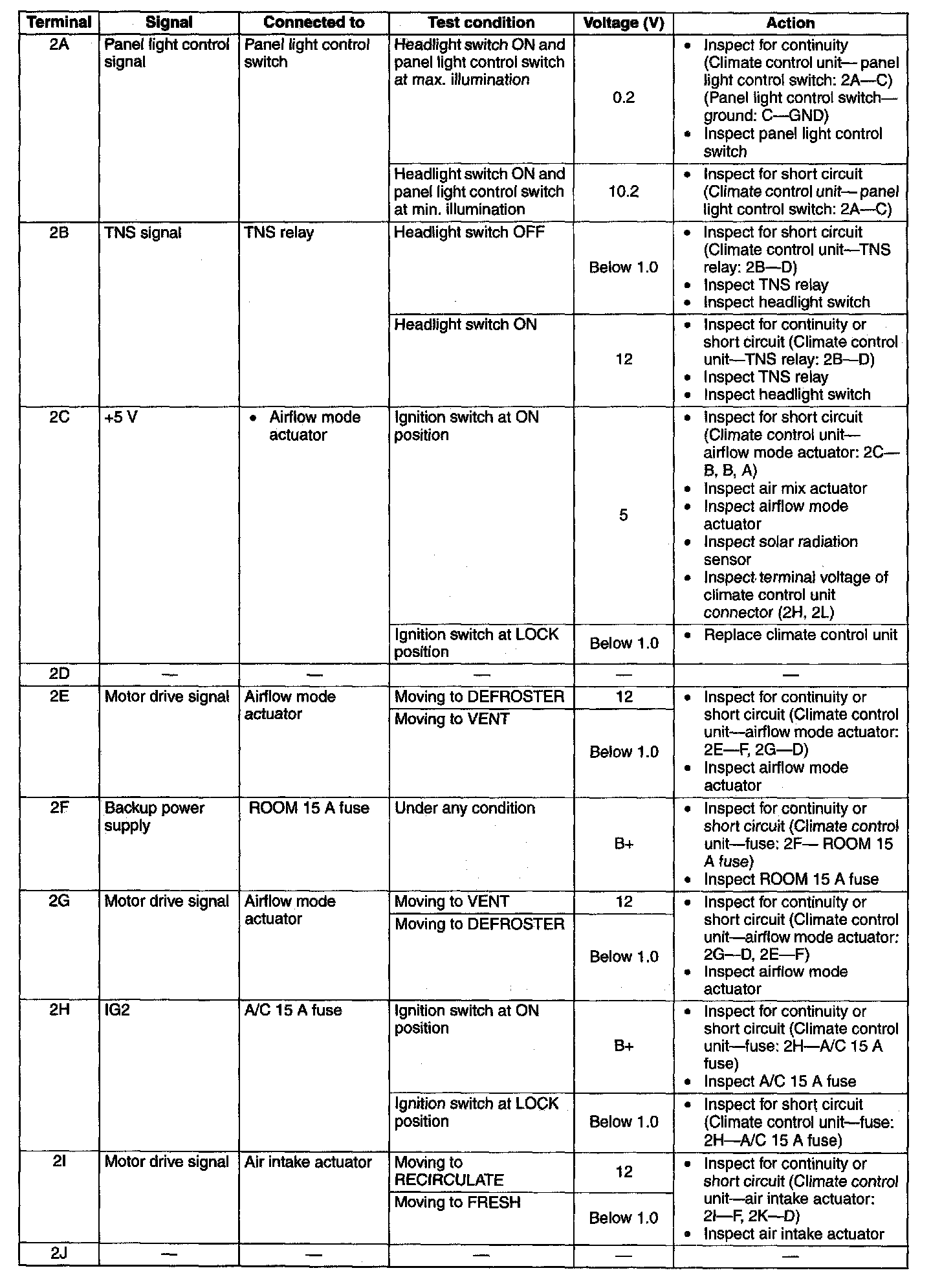

Terminal No 2A-2J:

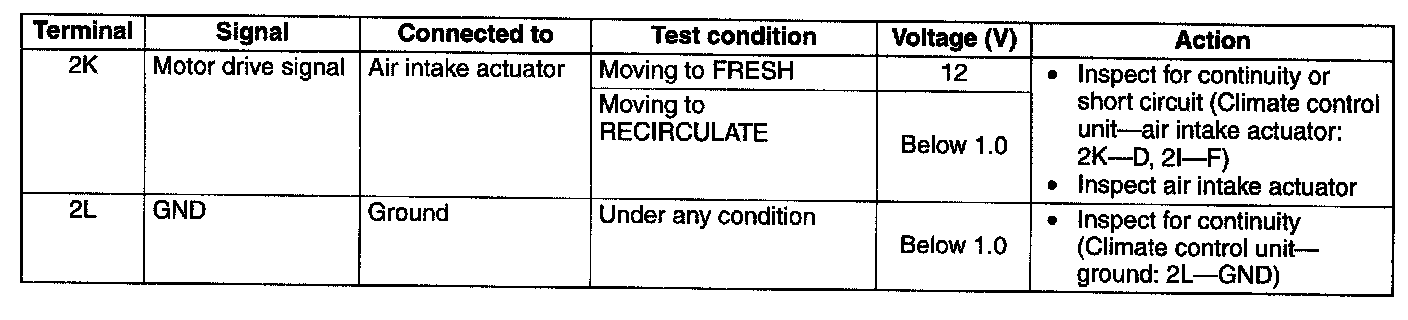

Terminal No 2K-2L:
