Solar Sensor: Service and Repair

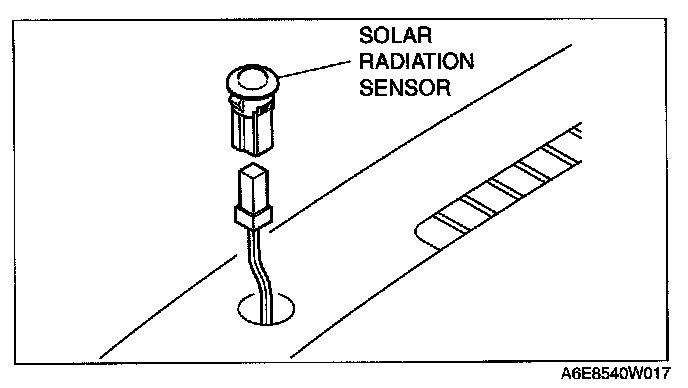

SOLAR RADIATION SENSOR REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.




2. Remove the solar radiation sensor from the dashboard using a tape-wrapped flathead screwdriver.
3. Install in the reverse order of removal.
