Solar Sensor: Testing and Inspection

SOLAR RADIATION SENSOR INSPECTION

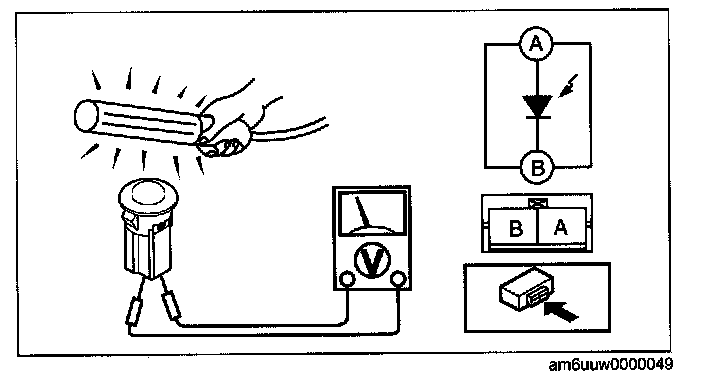

1. Shine a fluorescent light or expose the solar radiation sensor to natural sunlight.




2. Connect positive (+) lead to terminal A and negative (-) lead to terminal B of the solar radiation sensor.
- If the output voltage is not over 0.02V and not less 0.45 V, replace the solar radiation sensor.
