Lighting and Horns: Locations

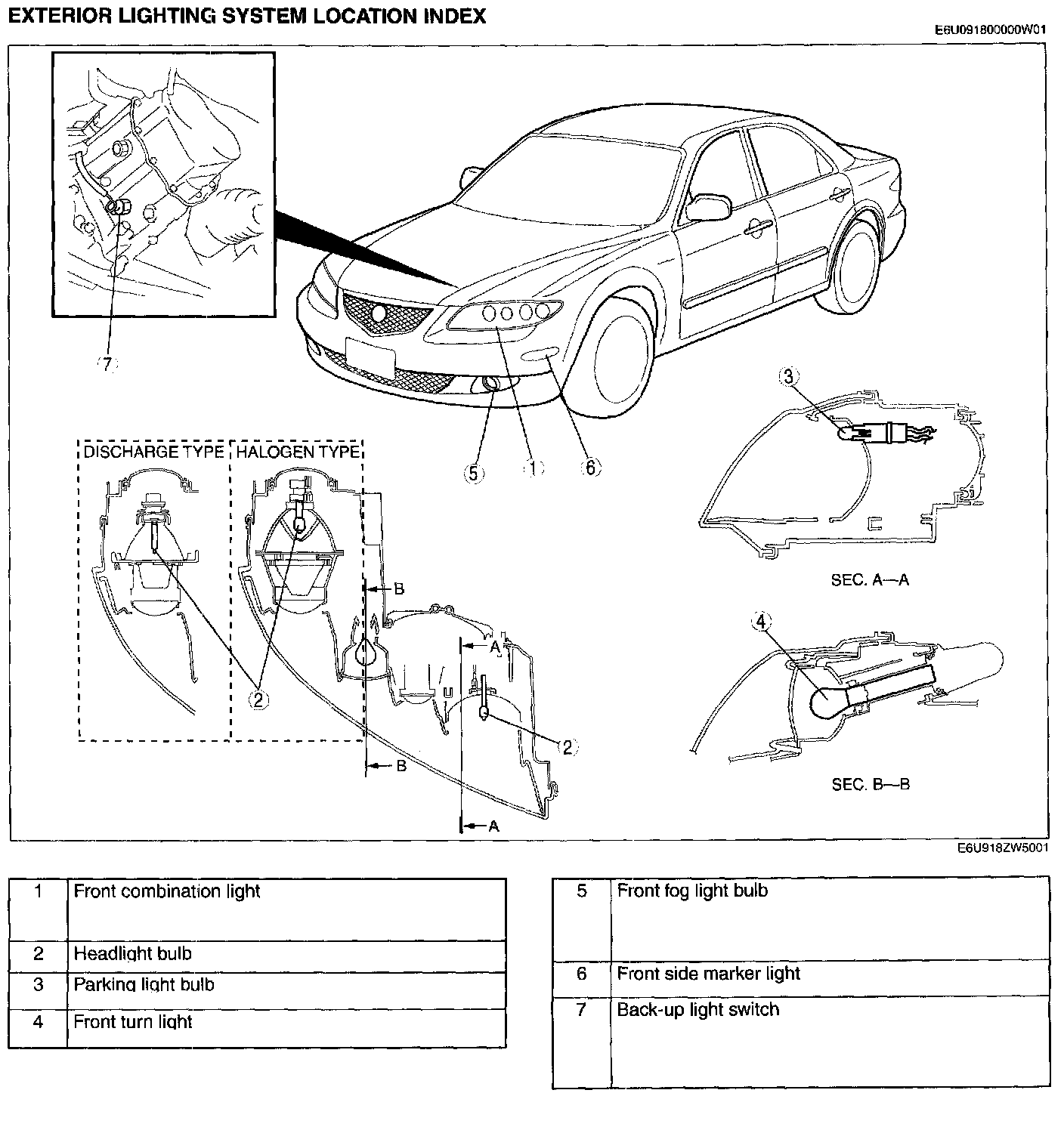

Exterior Lighting System Location Index:

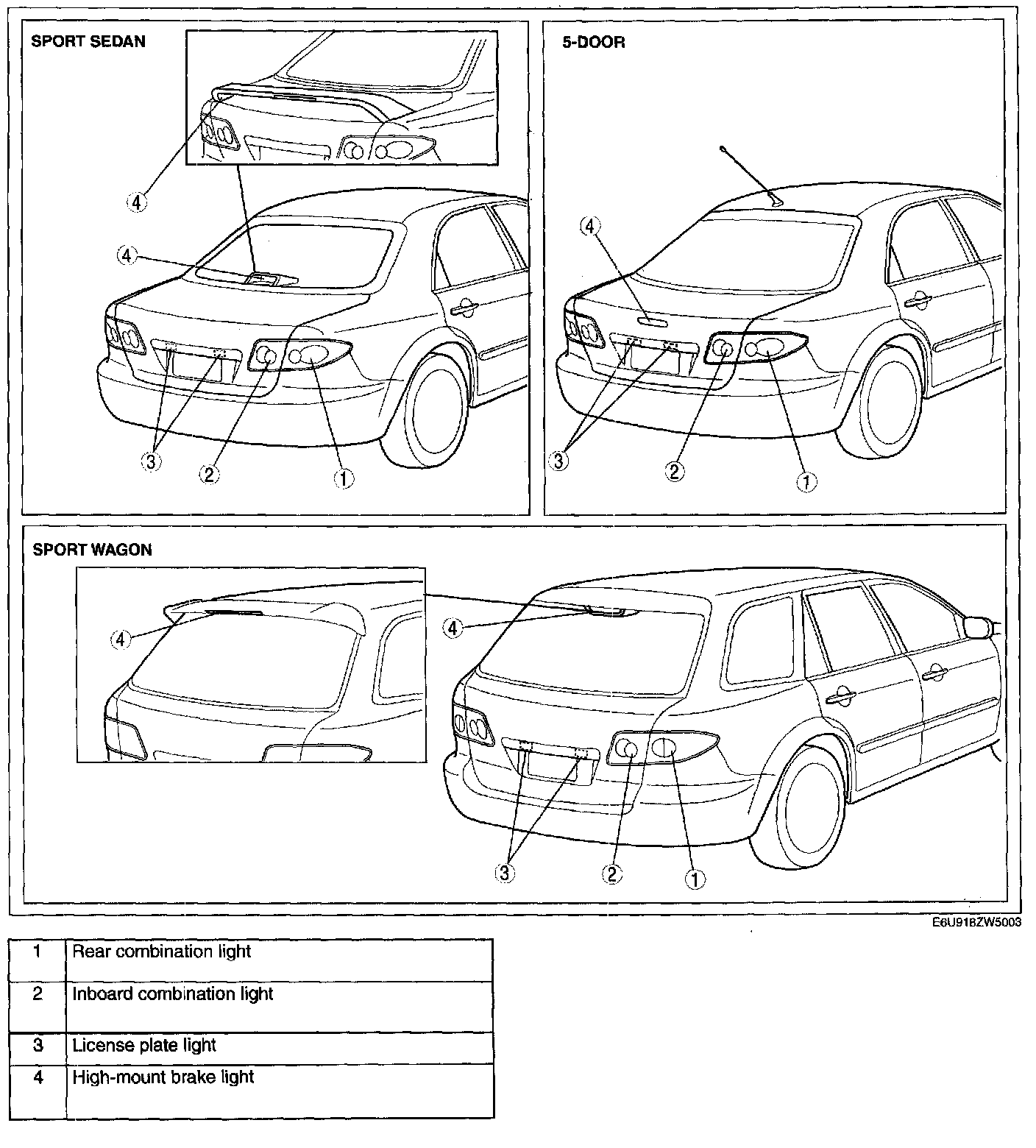

Exterior Lighting System Location Index:

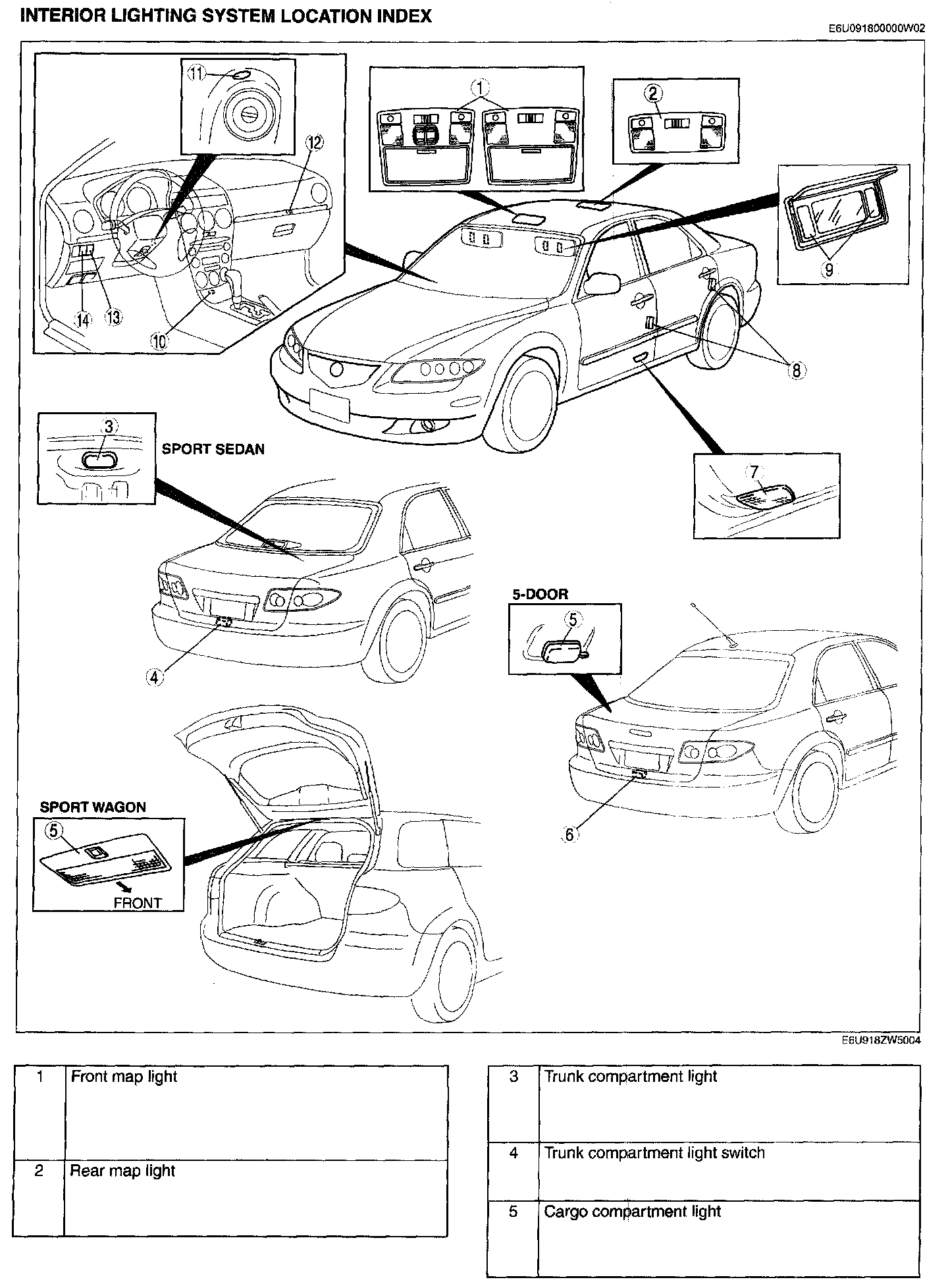

Interior Lighting System Location Index:
