[A65M-R]

VEHICLE SPEED SENSOR INSPECTION (WITHOUT ABS) [A65M-R]

1. Remove the vehicle speed sensor.

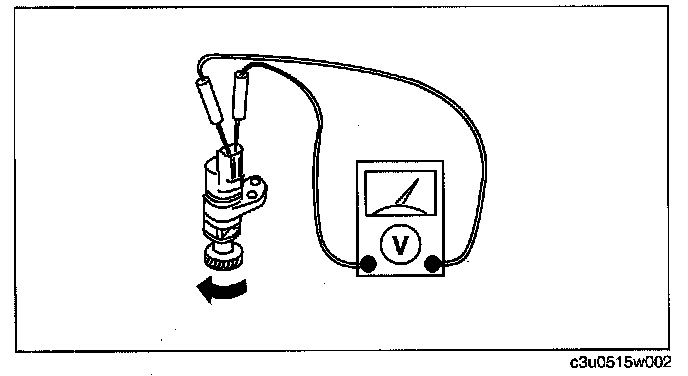

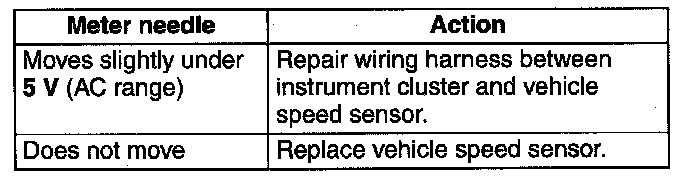

2. Measure voltage (AC range) between terminals of the vehicle speed sensor while the gear is turning.





3. Install the vehicle speed sensor.
