Powertrain Management: Locations

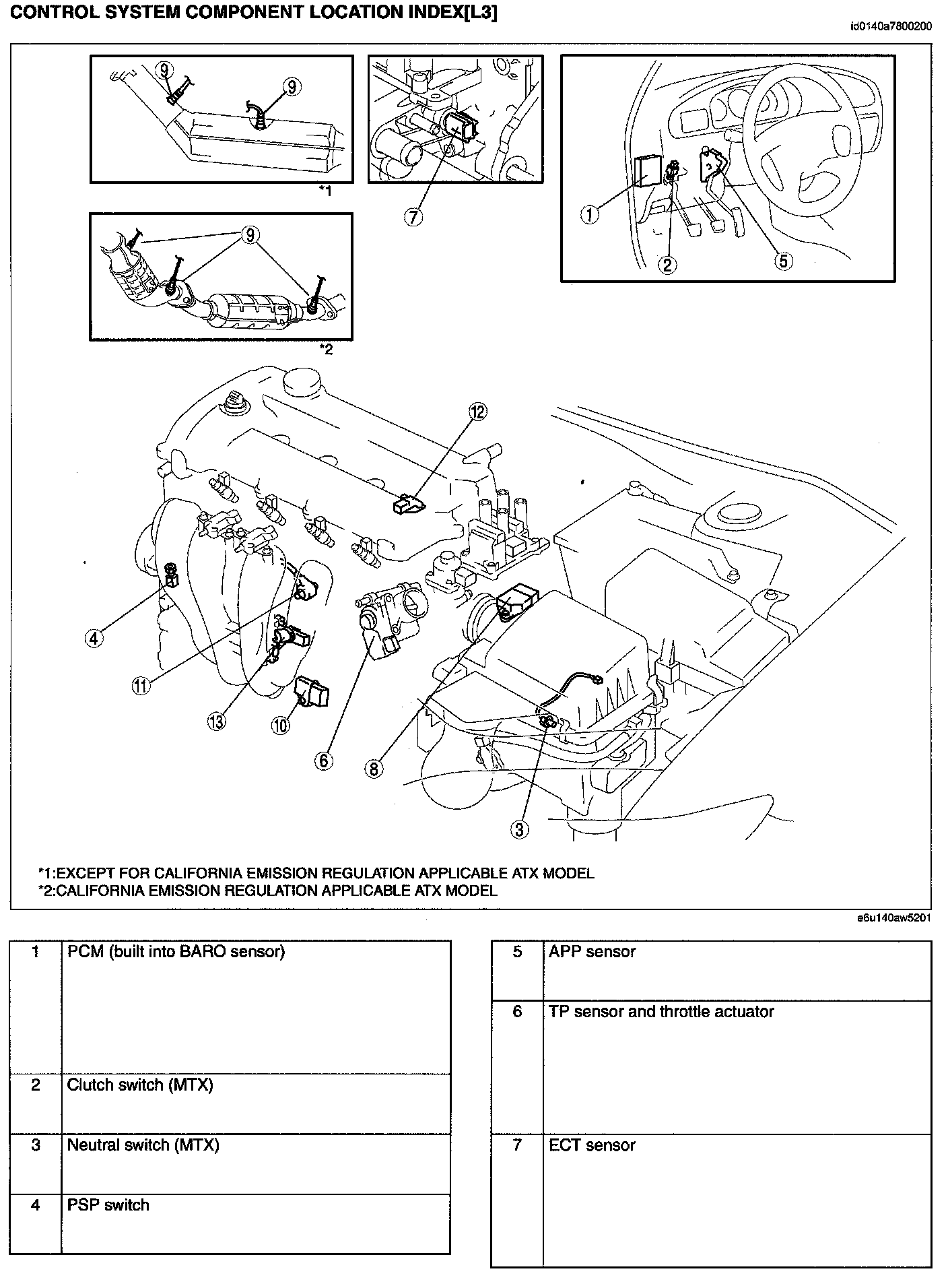

Control System Component Location Index[L3] Part 1:



Control System Component Location Index[L3] Part 2:
